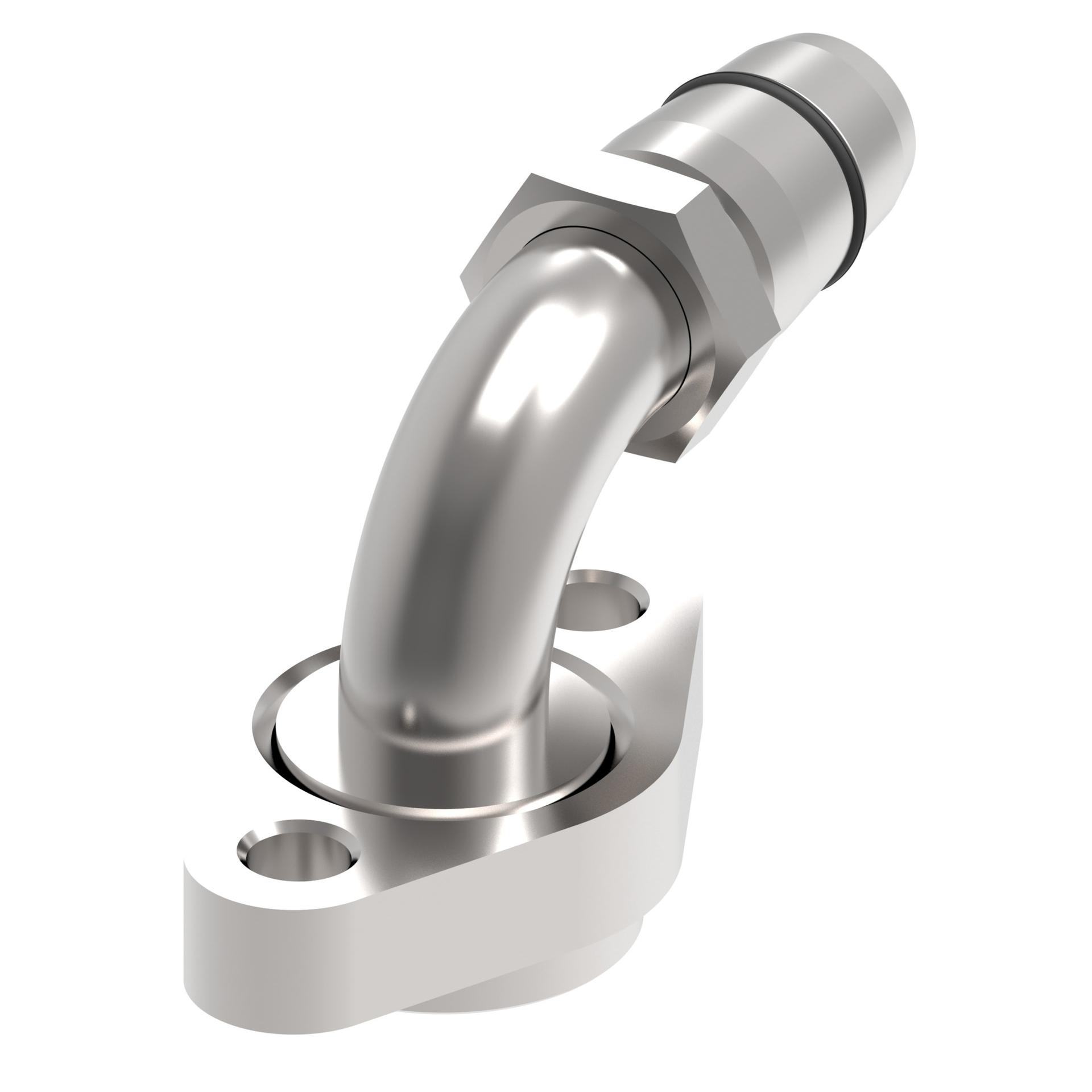

Hose Fittings GA25128-16 (RIGHT)

FTGS, AR/20, BOCK-M/20, -S, 90D, 86

GA25128-20


Tools

Product specifications

Characteristic
Value
A dimension IN3.780
A dimension MM96.000
Angle shape90 Degree
BrandDanfoss
Compatible hose ID IN1.250
Compatible hose ID MM31.750
Compatible hosesFC800
Construction StyleReusable
Drop dimension IN3.400
Drop dimension MM86.30
End size 1-20
Finish platingDura-Kote
Hex size 1 IN1.417
Hex size 1 MM35.992
Hex size 2 IN1.417
Hex size 2 MM36.000
Hose cut off factor IN2.460
Hose cut off factor MM62.500
Hose size-20
Inside diameter IN0.950
Inside diameter MM24.200
Product height in4.110
Product height mm104.394
Product length in5.030
Product length mm127.762
Product materialCarbon steel
Product width in3.360
Product width mm85.344 mm
Seal materialHydrogenated Nitrile (HNBR)
Thread sealantNo
Working temperature max C125
Working temperature max F257
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN/UPC678146194213
