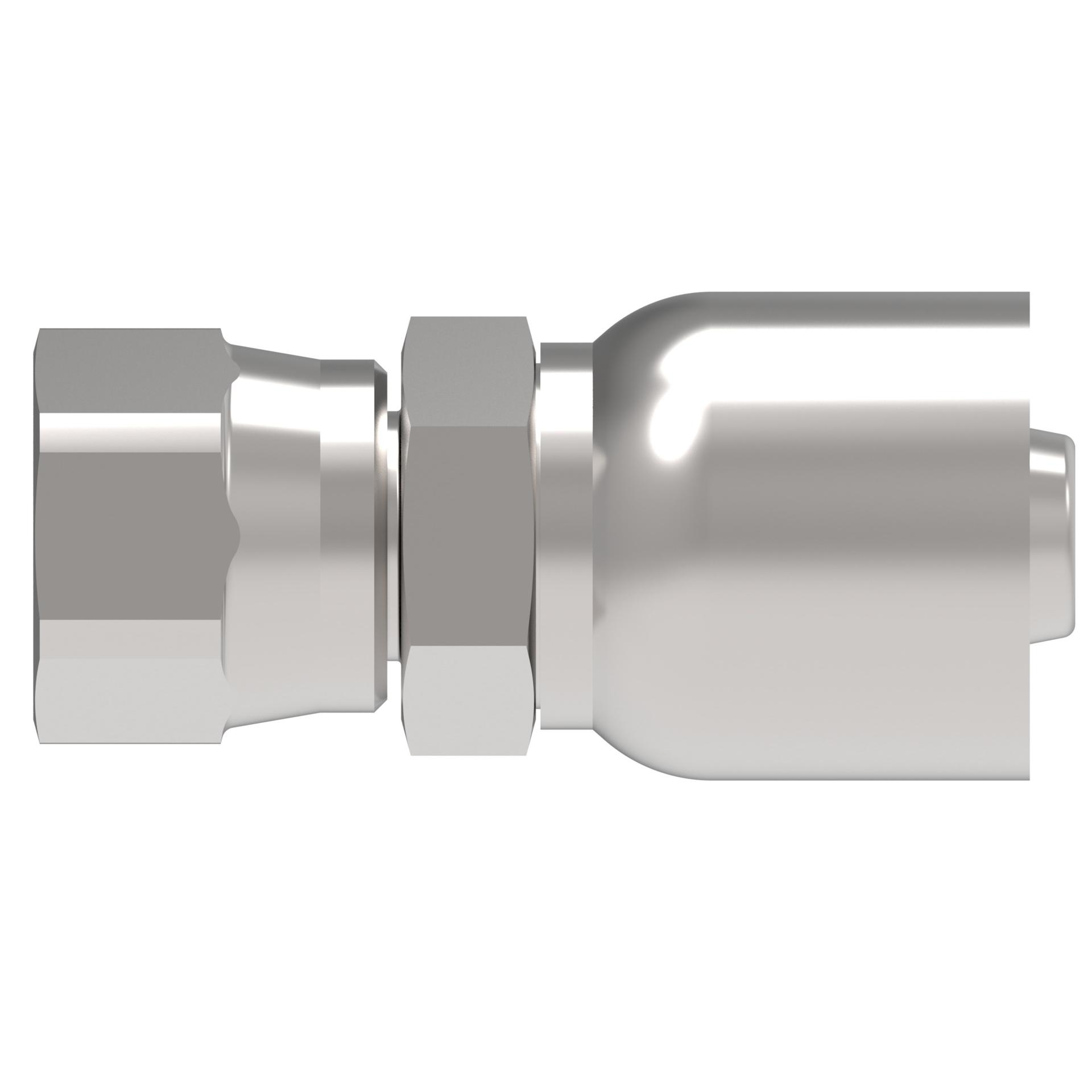

![Hose Fittings 06910E-608 [RIGHT]](/_next/image?url=https%3A%2F%2Fassets.danfoss.com%2Fdrawings%2Fpreview%2Flatest%2F213890%2FID432878408050-0101_preview.jpg&w=1920&q=75)
Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 4.150 |
| A dimension MM | 105.410 |
| Angle shape | Straight |
| Backup hex size IN | 2.500 |
| Backup hex size MM | 63.500 |
| Brand | Danfoss |
| Compatible hose ID IN | 2.000 |
| Compatible hose ID MM | 50.800 |
| Compatible hoses | H059H069H166 H169H229 H239H366 H569 |
| Compatible tube OD IN | 1.81 |
| Compatible tube OD MM | 45.974 |
| Construction Style | Crimp |
| End connection hex size IN | 3.000 |
| End connection hex size MM | 76.200 |
| End connection torque | 245-258 lb-ft(334-352 Nm) |
| End size 1 | -40 |
| End type 1 | Female 37 degree swivel |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 3.000 |
| Hex size 1 MM | 76.200 |
| Hex size 2 IN | 2.500 |
| Hex size 2 MM | 63.500 |
| Hose cut off factor IN | 2.780 |
| Hose cut off factor MM | 70.612 |
| Hose size | -32 |
| Inside diameter IN | 1.630 |
| Inside diameter MM | 41.402 |
| Product material | Carbon steel |
| Series | 069 E |
| Tube OD 1 IN | 1.810 |
| Tube OD 1 MM | 45.974 |
| Working pressure max bar | 121 |
| Working pressure max psi | 1750 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 725975582145 |
| Proposition 65 | Cancer and Reproductive Harm |
