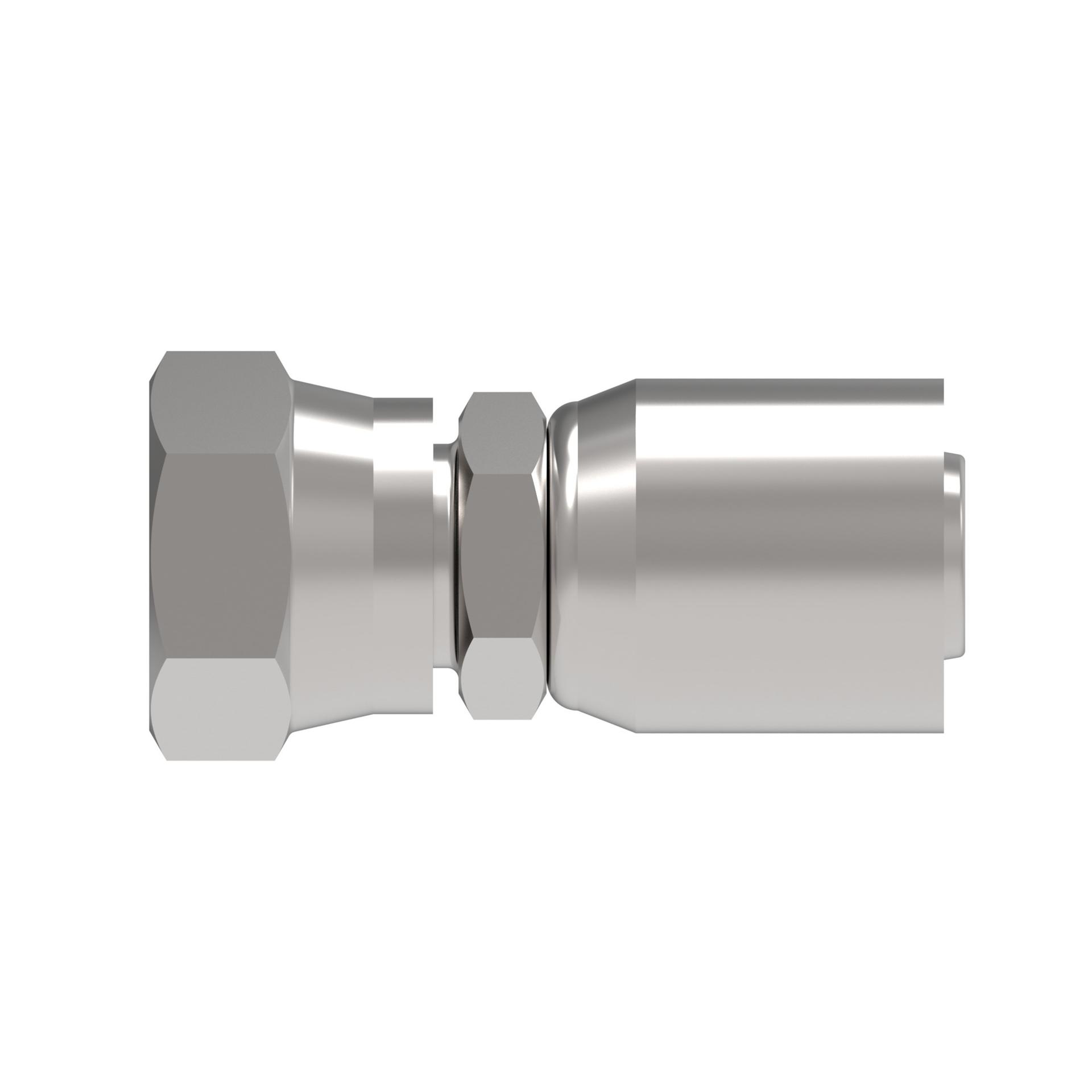

Hose Fittings 12E-12L [CENTER]

HOSE FTG,EC/04,BSP-F/04,CS,STR

04E-04L

Catalog item:

04E-04L

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

If you're looking for a similar product, you can check out other options within the same product type by visiting the product type page.: PTFE fittings

Tools

Product specifications

Characteristic
Value
A dimension IN2.030
A dimension MM51.600
Angle shapeStraight
Backup hex size IN0.750
Backup hex size MM19.050
Catalog Item04E-04L
Compatible hose ID IN0.250
Compatible hose ID MM6.400
Construction StyleCrimp
End connection hex size IN0.563
End connection hex size MM14.288
End size 1-4
End Type 1Female BSPP swivel
Finish platingDura-Kote
Hose cut off factor IN1.180
Hose cut off factor MM30.000
Hose size-4
Inside diameter IN0.160
Inside diameter MM4.100
Product height in0.560
Product height mm14.224
Product length in2.120
Product length mm53.848
Product materialCarbon steel
Product width in0.560
Product width mm14.224
SeriesE Series
Thread size 1G 1/4-19

General specifications

Characteristic
Value
EAN/UPC757522222679
