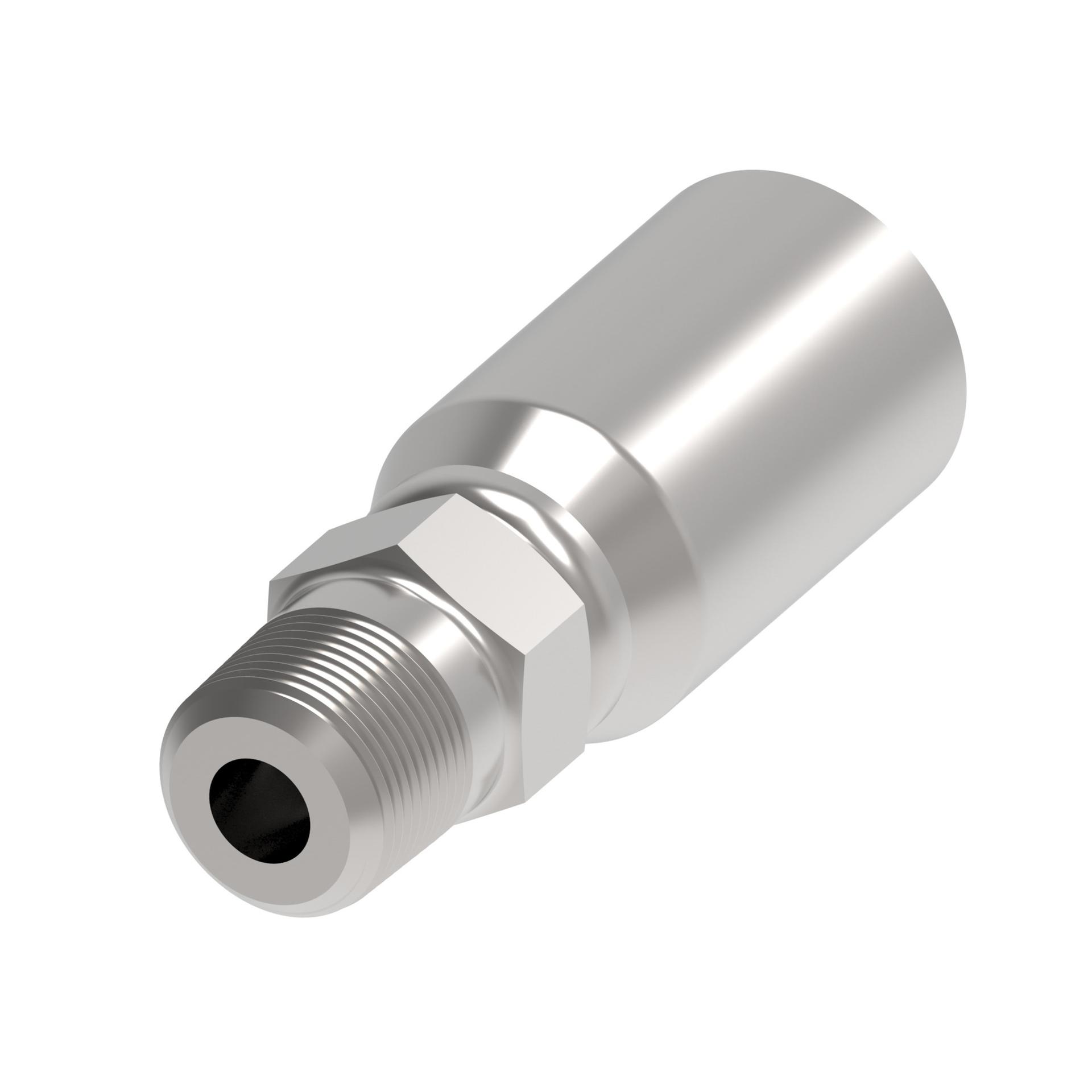

Hose Fittings 04E-102 [RIGHT]

Hose End (perm) R7 Str. M. Pipe

04E-102


Tools

Product specifications

Characteristic
Value
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.350
Compatible hosesH209H243H265H275H277H285H435H436H009
Compatible tube OD IN0.13
Compatible tube OD MM3.302
Construction StyleCrimp
End Type 1Male pipe (NPT)
End size 1-2
Hex size 1 IN0.440
Hex size 1 MM11.200
Hose cut off factor IN0.750
Hose cut off factor MM19.050
Hose size-4
Inside diameter IN0.160
Inside diameter MM4.064
Product height in0.570
Product height mm14.478
Product length in1.600
Product length mm40.640
Product materialCarbon steel
Product width in0.570
Product width mm14.478 mm
Thread sealantNo
Tube OD 1 IN0.130
Tube OD 1 MM3.302
Working pressure max bar689
Working pressure max psi10000
