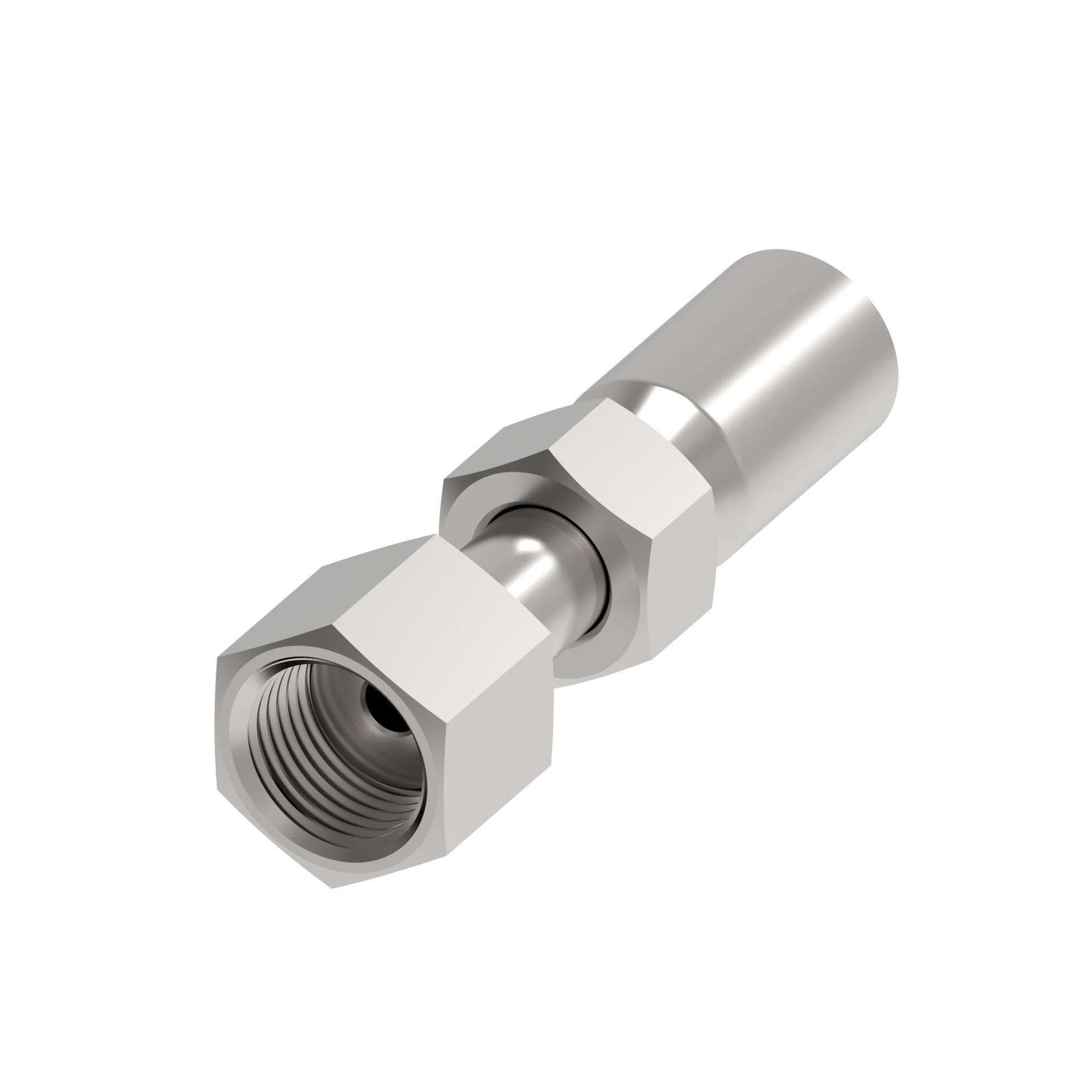

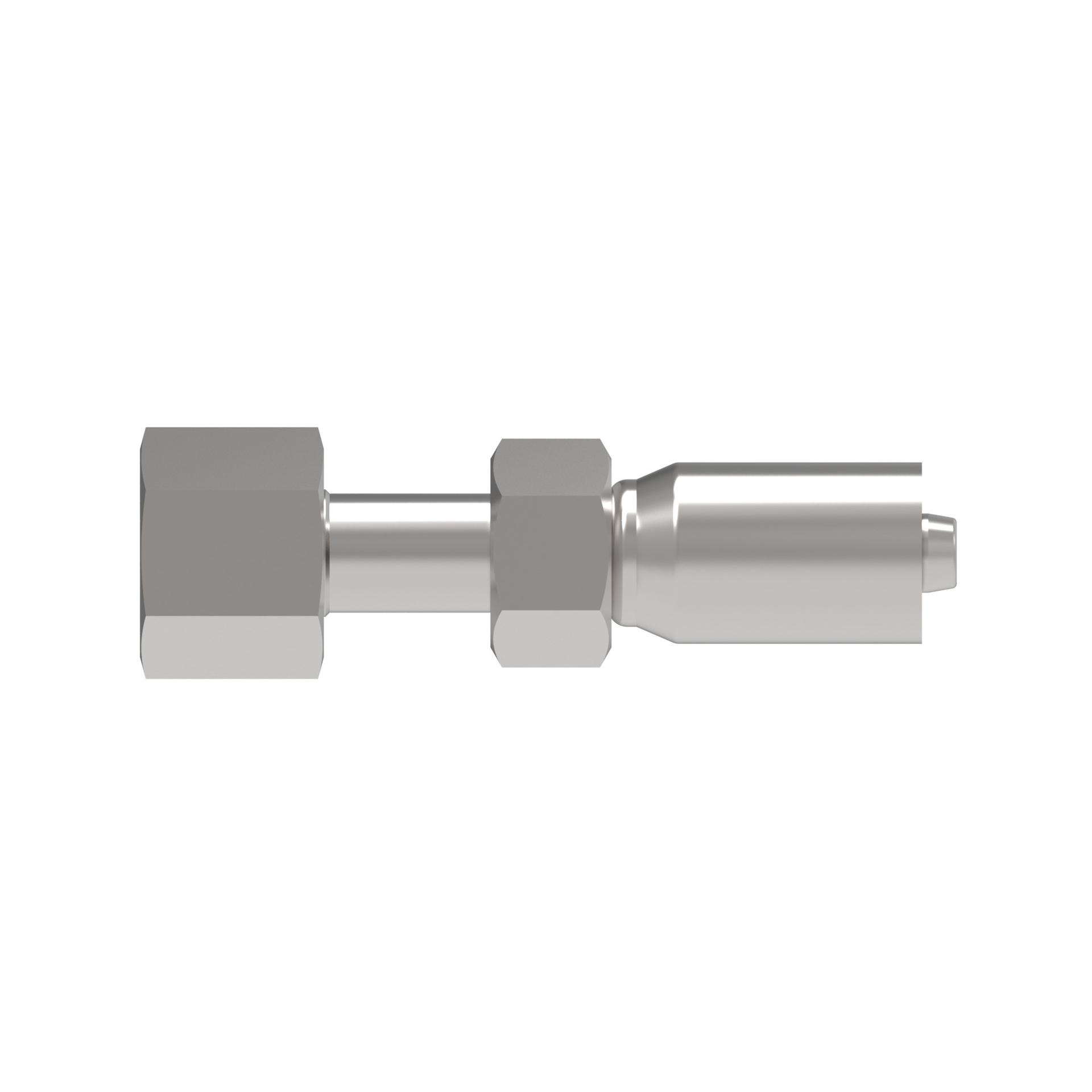

Hose Fittings 04E-S64 [RIGHT]

Hose End (perm) R7 Str. F. ORS Swivel

06E-S68

Tools

Product specifications

Characteristic
Value
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN0.380
Compatible hose ID MM9.652
Compatible hosesH009 H209 H243 H265 H275 H277 H285 H435 H436
Compatible tube OD IN0.50
Compatible tube OD MM12.700
Construction StyleCrimp
End size 1-8
End Type 1Female ORFS swivel
Hex size 1 IN0.630
Hex size 1 MM16.002
Hex size 2 IN0.940
Hex size 2 MM23.876
Hose cut off factor IN1.690
Hose cut off factor MM42.926
Hose size-6
Inside diameter IN0.2600
Inside diameter MM6.6040
Product materialCarbon steel
Thread sealantNo
Tube OD 1 IN0.500
Tube OD 1 MM12.700

General specifications

Characteristic
Value
EAN/UPC725975747421
