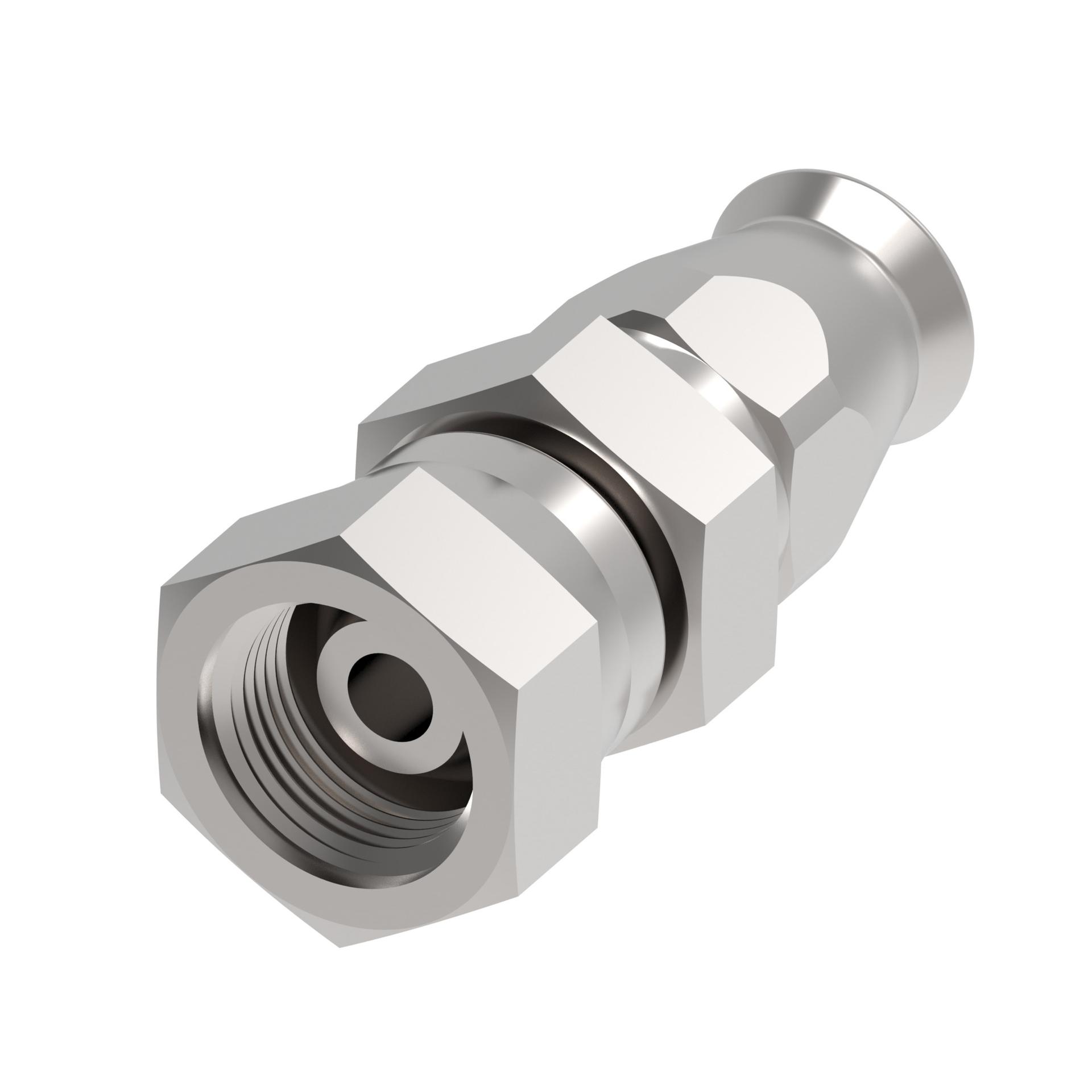

Hose Fittings07-022-XX-XX (RIGHT)

FITTING

07.022-6-6


Tools

Product specifications

Characteristic
Value
A dimension IN1.496
A dimension MM38.000
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN0.380
Compatible hose ID MM9.500
Compatible hoses2807
Construction StyleReusable
End connection torque33-40 lb-ft(45-55 Nm)
End size 1-6
End type 1Female BSPP swivel
Finish platingDura-Kote
Hex size 1 IN0.870
Hex size 1 MM22.100
Hex size 2 IN0.870
Hex size 2 MM22.000
Hose cut off factor IN1.087
Hose cut off factor MM27.600
Hose size-6
Inside diameter IN0.276
Inside diameter MM7.000
Product height in1.000
Product height mm25.400
Product length in1.840
Product length mm46.736
Product materialCarbon steel
Product width in0.870
Product width mm22.098 mm
SeriesTeflon Reusable
Sub brandEverflex
Thread sealantNo
Thread size 1G 3/8
Working pressure max bar400
Working pressure max psi5800
Working temperature max C260
Working temperature max F500
Working temperature min C-73
Working temperature min F-100
