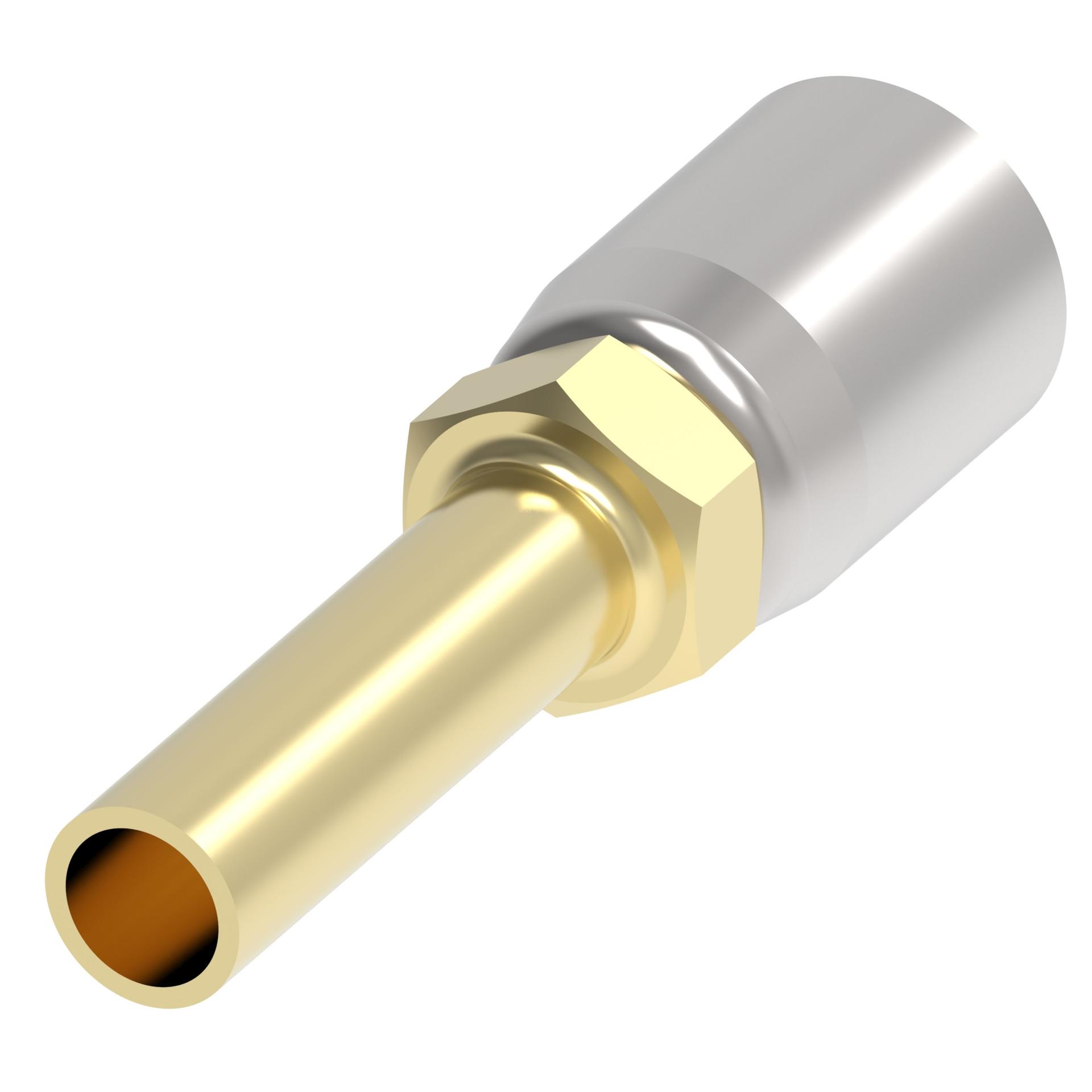

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 3.450 |
| A dimension MM | 87.630 |
| Angle shape | Straight |
| Compatible hose ID IN | 0.500 |
| Compatible hose ID MM | 12.700 |
| Construction Style | Crimp |
| End size 1 | -10 |
| End Type 1 | Male staplok |
| Finish plating | Bright dip |
| Hex size 2 IN | 0.750 |
| Hex size 2 MM | 19.000 |
| Hose cut off factor IN | 2.400 |
| Hose cut off factor MM | 60.960 |
| Hose size | -8 |
| Inside diameter IN | 0.374 |
| Inside diameter MM | 9.490 |
| Product material | Brass |
| Series | 08E |
| Working temperature max C | 150 |
| Working temperature max F | 302 |
| Working temperature min C | -48 |
| Working temperature min F | -55 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 725975733677 |
