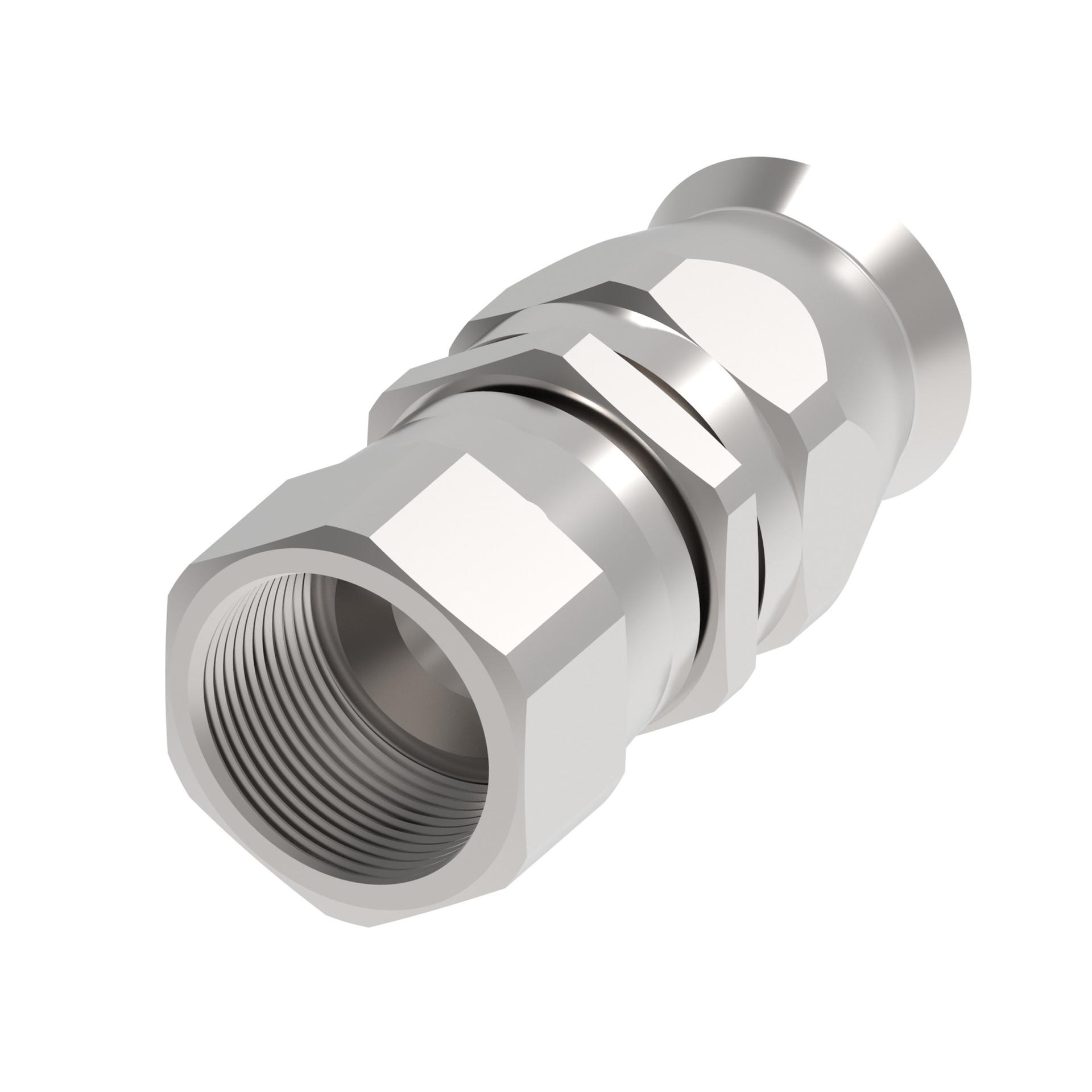

![Hose Fittings 190600-S [RIGHT]](/_next/image?url=https%3A%2F%2Fassets.danfoss.com%2Fdrawings%2Fpreview%2Flatest%2F215576%2FID433157882605-0101_preview.jpg&w=1920&q=75)
Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 1.580 |
| A dimension MM | 40.132 |
| Angle shape | Straight |
| Compatible hose ID IN | 0.250 |
| Compatible hose ID MM | 6.400 |
| Construction Style | Reusable |
| End connection torque | 11-12 lb-ft(15-16 Nm) |
| End size 1 | -4 |
| End type 1 | Female 37 degree swivel |
| Hex size 2 MM | 14.0 |
| Hose cut off factor IN | 1.130 |
| Hose cut off factor MM | 28.702 |
| Hose size | -4 |
| Inside diameter IN | 0.160 |
| Inside diameter MM | 4.064 |
| Product height in | 0.560 |
| Product height mm | 14.224 |
| Product length in | 1.580 |
| Product length mm | 40.132 |
| Product material | 316 Stainless steel |
| Product width in | 0.560 |
| Product width mm | 14.224 mm |
| Thread size 1 | 7/16-20 UNF |
| Working pressure max bar | 450 |
| Working pressure max psi | 6550 |
| Working temperature max C | 260 |
| Working temperature max F | 500 |
| Working temperature min C | -73 |
| Working temperature min F | -100 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 678146123077 |
