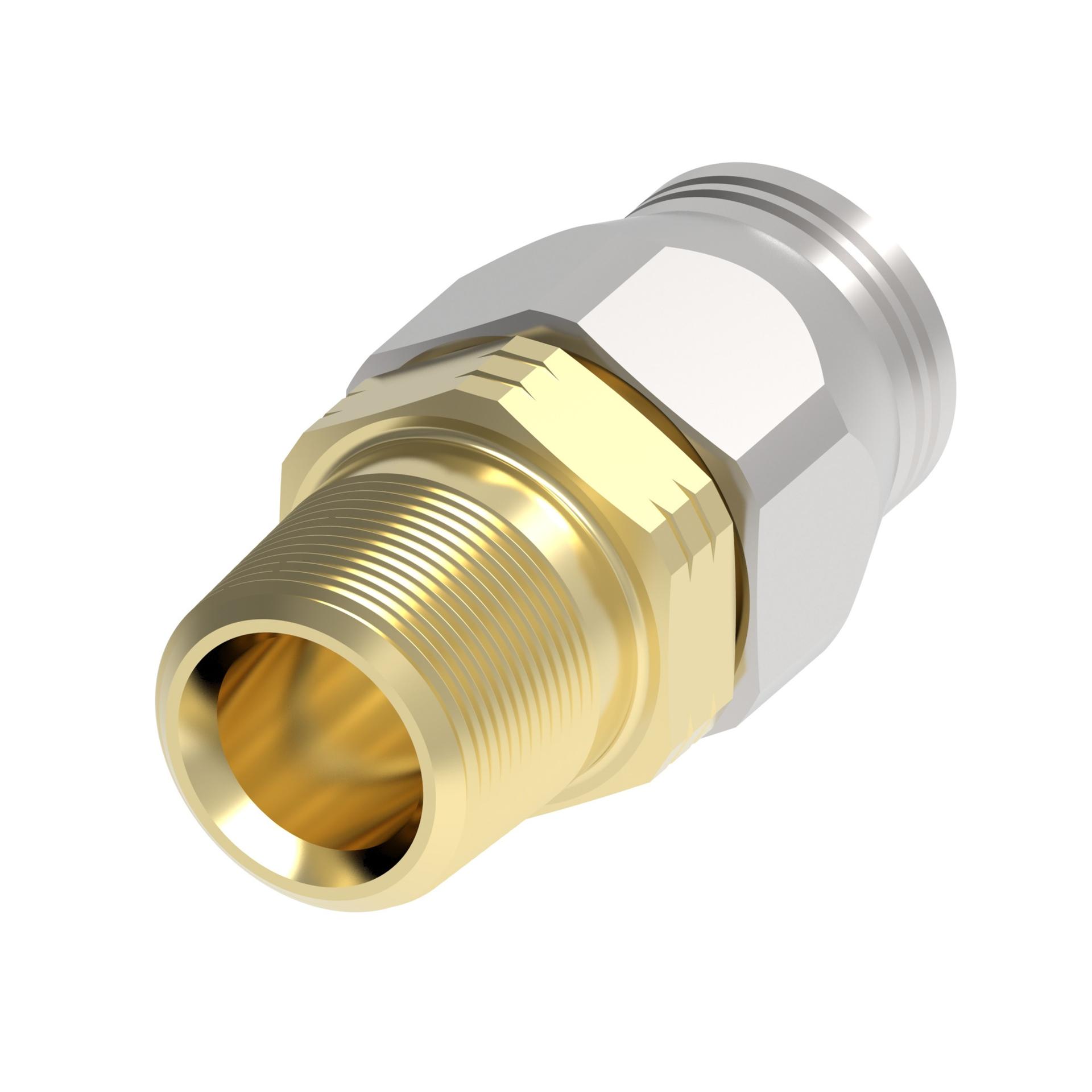

![Hose Fittings 38-190628 [RIGHT]](/_next/image?url=https%3A%2F%2Fassets.danfoss.com%2Fdrawings%2Fpreview%2Flatest%2F213762%2FID432878032923-0101_preview.jpg&w=1920&q=75)
Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 3.160 |
| A dimension MM | 80.264 |
| Angle shape | Straight |
| Compatible hose ID IN | 1.380 |
| Compatible hose ID MM | 34.900 |
| Construction Style | Reusable |
| End size 1 | -24 |
| End type 1 | Male pipe (NPTF) |
| Hex size 1 IN | 2.120 |
| Hex size 1 MM | 53.975 |
| Hose cut off factor IN | 1.782 |
| Hose cut off factor MM | 45.264 |
| Hose size | -24 |
| Inside diameter IN | 1.2800 |
| Inside diameter MM | 32.5120 |
| Product material | Brass |
| Series | PTFE Reusable |
| Thread size 1 | 1 1/2-11 1/2 NPTF |
| Working pressure max bar | 138.00 |
| Working pressure max psi | 2000.00 |
| Working temperature max C | 260 |
| Working temperature max F | 500 |
| Working temperature min C | -73 |
| Working temperature min F | -100 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 678146054258 |
