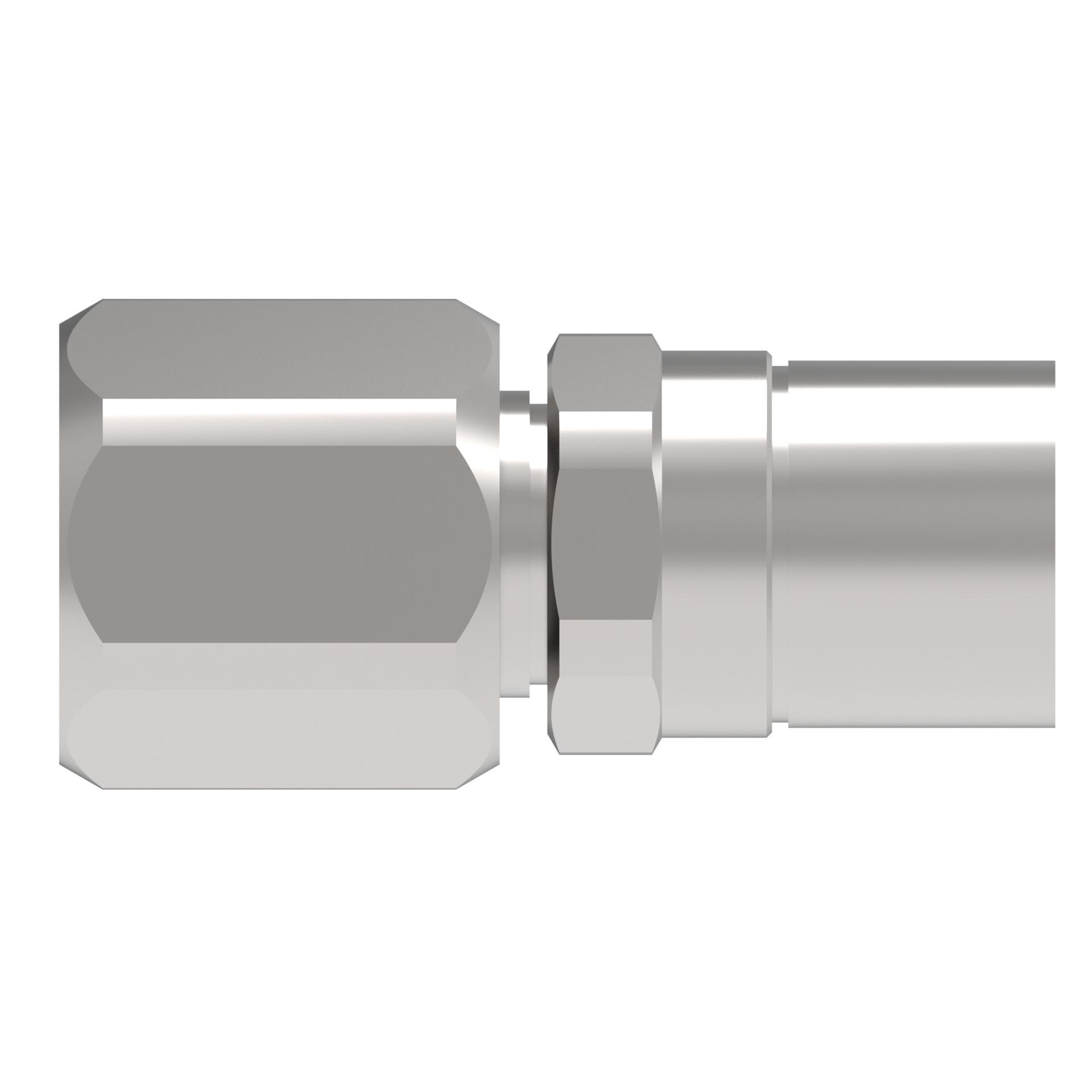

Hose Fittings S-1310 [RIGHT]

FITTING PERM, (JIC) Everswage

C-1304

Tools

Product specifications

Characteristic
Value
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN0.188
Compatible hose ID MM4.763
Compatible hoses SC SC-TW
Compatible tube OD IN0.25
Compatible tube OD MM6.350
Construction StyleSwage
End size 1-4
End Type 1Female 37 degree swivel
End Type 2Line/hose/tube
Hex size 1 IN0.500
Hex size 1 MM12.700
Hex size 2 IN0.563
Hex size 2 MM14.288
Hose cut off factor IN0.900
Hose cut off factor MM22.860
Hose size-4
Inside diameter IN0.150
Inside diameter MM3.810
Product materialCarbon steel
Sub brandEverflex
Tube OD 1 IN0.250
Tube OD 1 MM6.350

General specifications

Characteristic
Value
EAN/UPC678146031976
