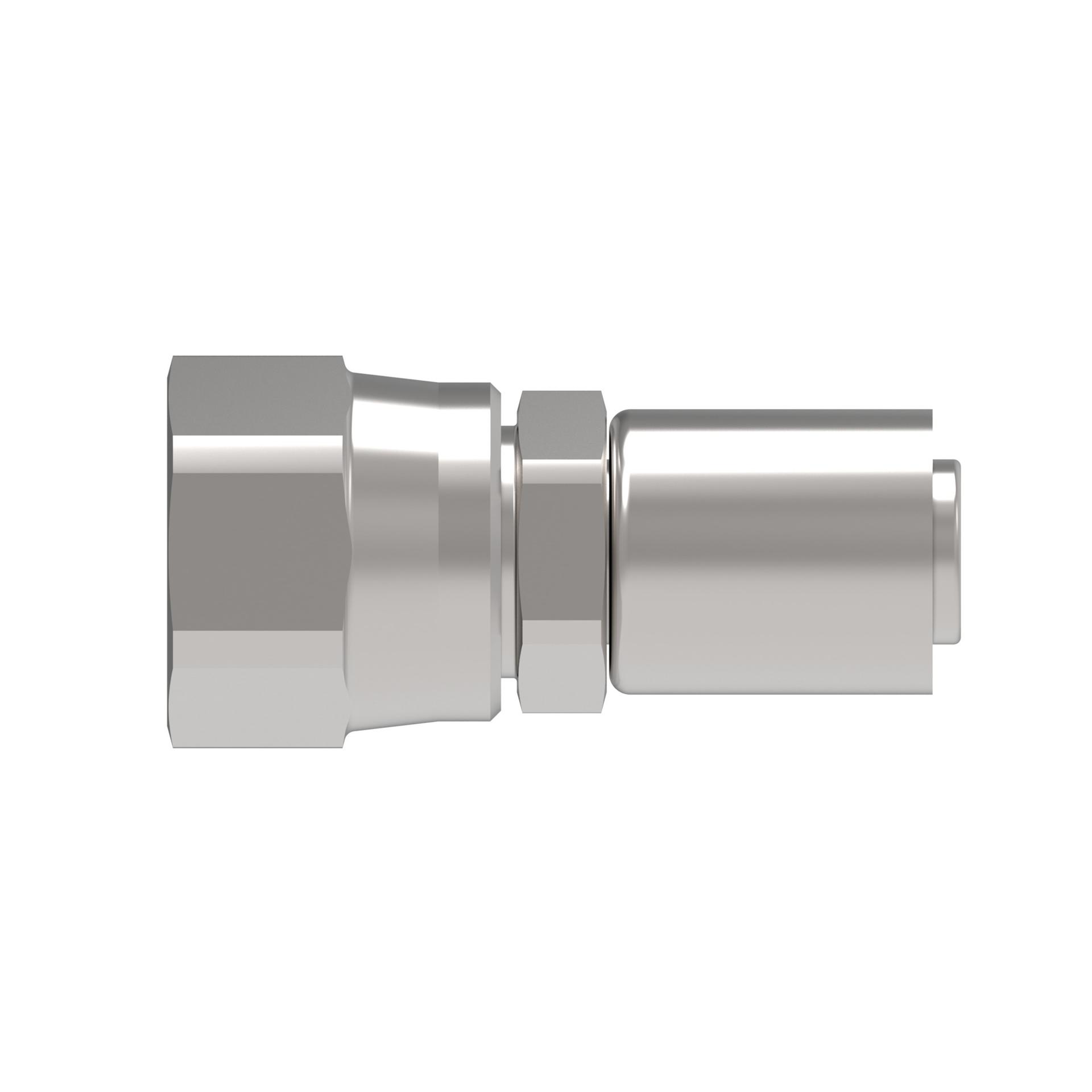

Hose Fittings FC9779-1010 [CENTER]

HOSE FTG, FC/10, JIC-F/10, CS, STR

FC9779-1010S

Tools

Product specifications

Characteristic
Value
A dimension IN2.210
A dimension MM56.100
Angle shapeStraight
Backup hex size IN0.826
Backup hex size MM21.000
BrandAeroquip by Danfoss
Catalog ItemFC9779-1010S
Compatible hose ID IN0.620
Construction StyleCrimp
End connection hex size IN0.984
End connection hex size MM25.000
End size 1-10
End Type 1Female 37 degree swivel
Finish platingDura-Kote
Hose cut off factor IN1.320
Hose cut off factor MM33.500
Inside diameter IN0.440
Inside diameter MM11.200
Product height in1.150
Product height mm29.210
Product length in2.210
Product length mm56.134
Product materialCarbon steel
Product width in1.000
Product width mm25.400
Thread size 17/8-14 UNF

General specifications

Characteristic
Value
EAN/UPC678146146144
