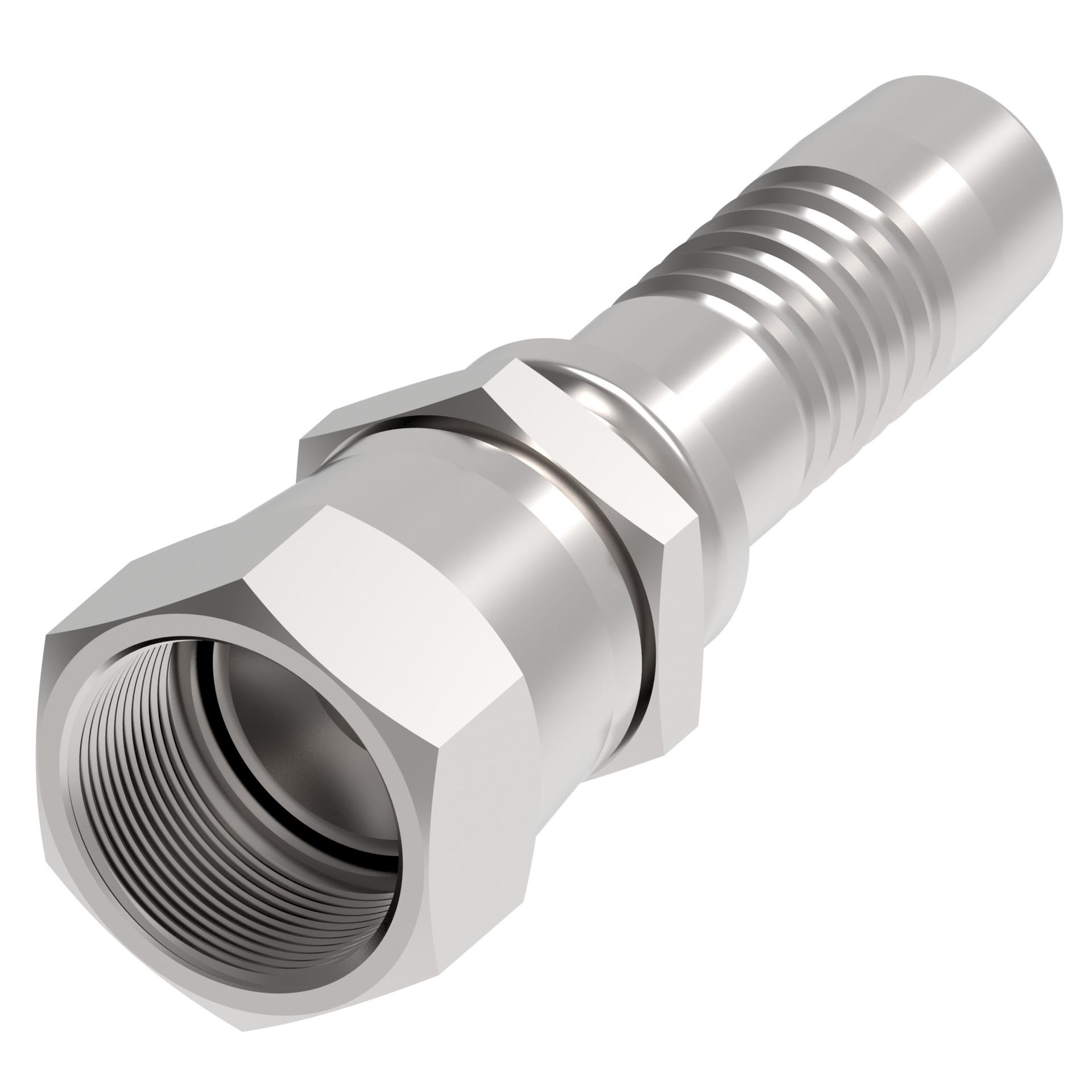

![Hose Fittings 03908K-608 [RIGHT]](/_next/image?url=https%3A%2F%2Fassets.danfoss.com%2Fdrawings%2Fpreview%2Flatest%2F213831%2FID432878232990-0101_preview.jpg&w=1920&q=75)
Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 3.860 |
| A dimension MM | 98.044 |
| Angle shape | Straight |
| Brand | Weatherhead by Danfoss |
| Catalog Item | 03912K-612 |
| Compatible hose ID IN | 0.750 |
| Compatible hose ID MM | 19.000 |
| Compatible hoses | H039H039H |
| Construction Style | Crimp |
| End connection torque | 78-89 lb-ft(107-119 Nm) |
| End size 1 | -12 |
| End type 1 | Female 37 degree swivel |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 1.000 |
| Hex size 1 MM | 25.400 |
| Hex size 2 IN | 1.250 |
| Hex size 2 MM | 31.750 |
| Hose cut off factor IN | 1.690 |
| Hose cut off factor MM | 42.926 |
| Hose size | -12 |
| Inside diameter IN | 0.606 |
| Inside diameter MM | 15.392 |
| Product material | Carbon steel |
| Series | 104 U |
| Thread sealant | No |
| Thread size 1 | 1 1/16-12 UN |
| Working pressure max BAR | 330 |
| Working pressure max PSI | 4800 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 725975057032 |
