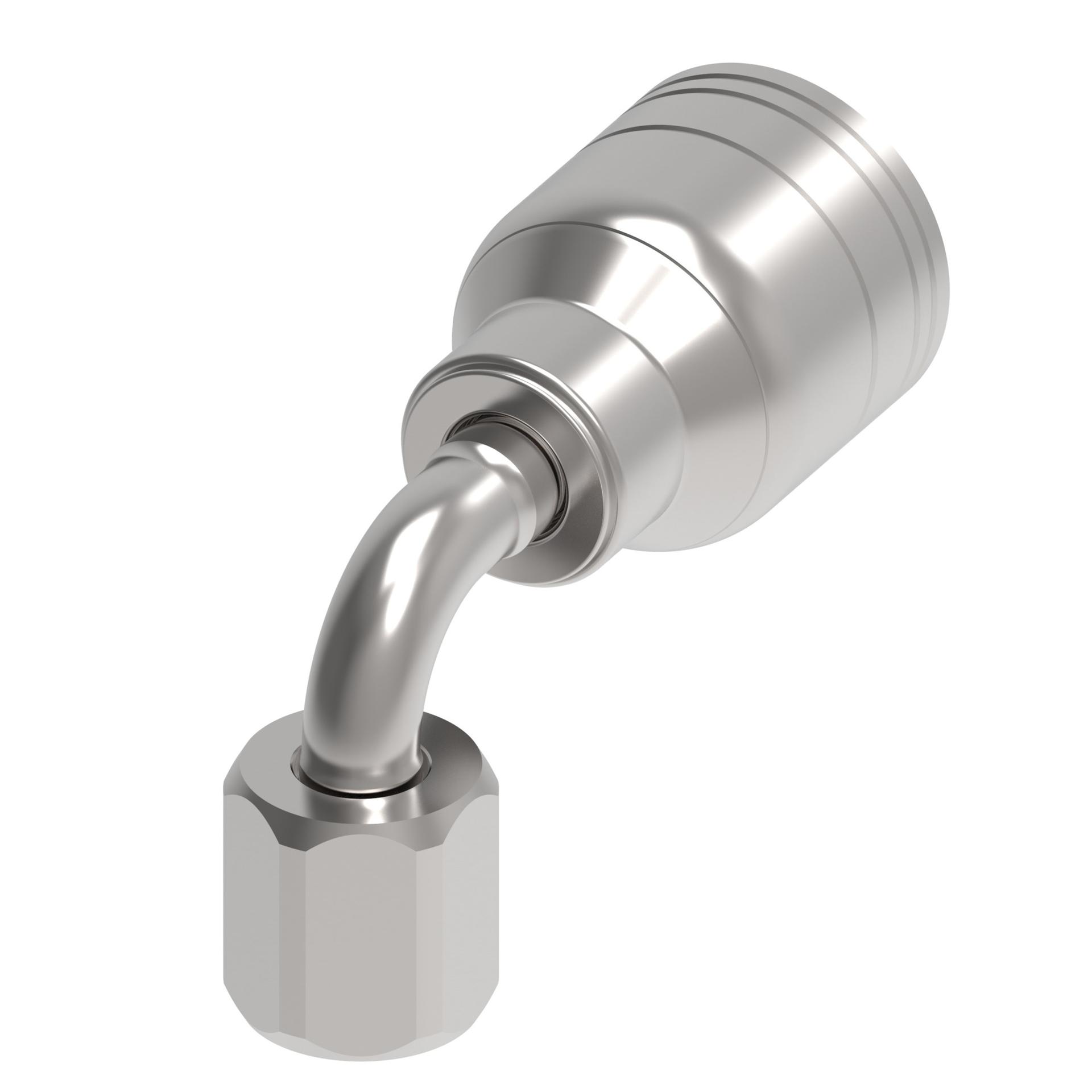

Hose Fittings 1AA4FJB4 (RIGHT)

Ftng (perm) R2 Female JIC 90 Deg Elbow

04Z-666-TZ


Tools

Product specifications

Characteristic
Value
Angle shape90 Degree
BrandWeatherhead by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.350
Compatible tube OD IN0.38
Compatible tube OD MM9.652
Construction StyleCrimp
Drop dimension IN1.000
Drop dimension MM23.00
End Type 1Female 37 degree swivel
End size 1-6
Hex size 1 IN0.690
Hex size 1 MM17.526
Hose cut off factor IN0.990
Hose cut off factor MM25.146
Hose size-4
Inside diameter IN0.1700
Inside diameter MM4.3180
Product materialCarbon steel
Thread sealantNo
Tube OD 1 IN0.380
Tube OD 1 MM9.652

General specifications

Characteristic
Value
EAN/UPC810075333978
