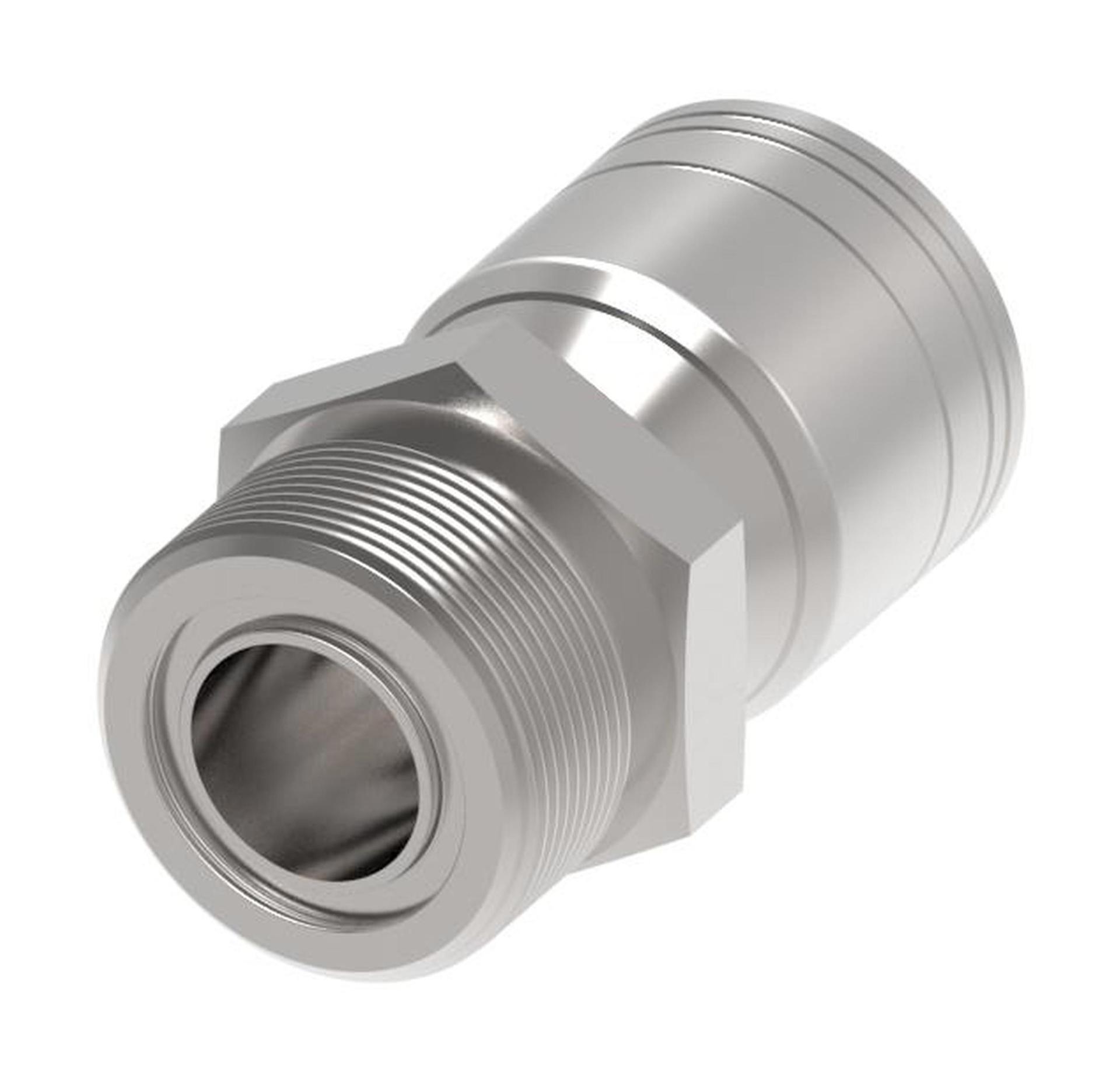

Hose Fittings 1AA12MR8 (RIGHT)

Hose End (perm) 1S/1R

04Z-E64-BG


Tools

Product specifications

Characteristic
Value
Angle shapeStraight
BrandWeatherhead by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.350
Compatible tube OD IN0.25
Compatible tube OD MM6.350
CompliancesSAE J1176
Construction StyleCrimp
End size 1-6
End type 1Male ORFS
Finish platingDura-Kote
Hex size 1 IN0.625
Hex size 1 MM15.875
Hose cut off factor IN0.860
Hose cut off factor MM21.844
Hose size-4
Inside diameter IN0.170
Inside diameter MM4.318
Product materialCarbon steel
Thread sealantNo
Tube OD 1 IN0.250
Tube OD 1 MM6.350

General specifications

Characteristic
Value
EAN/UPC810075335156
