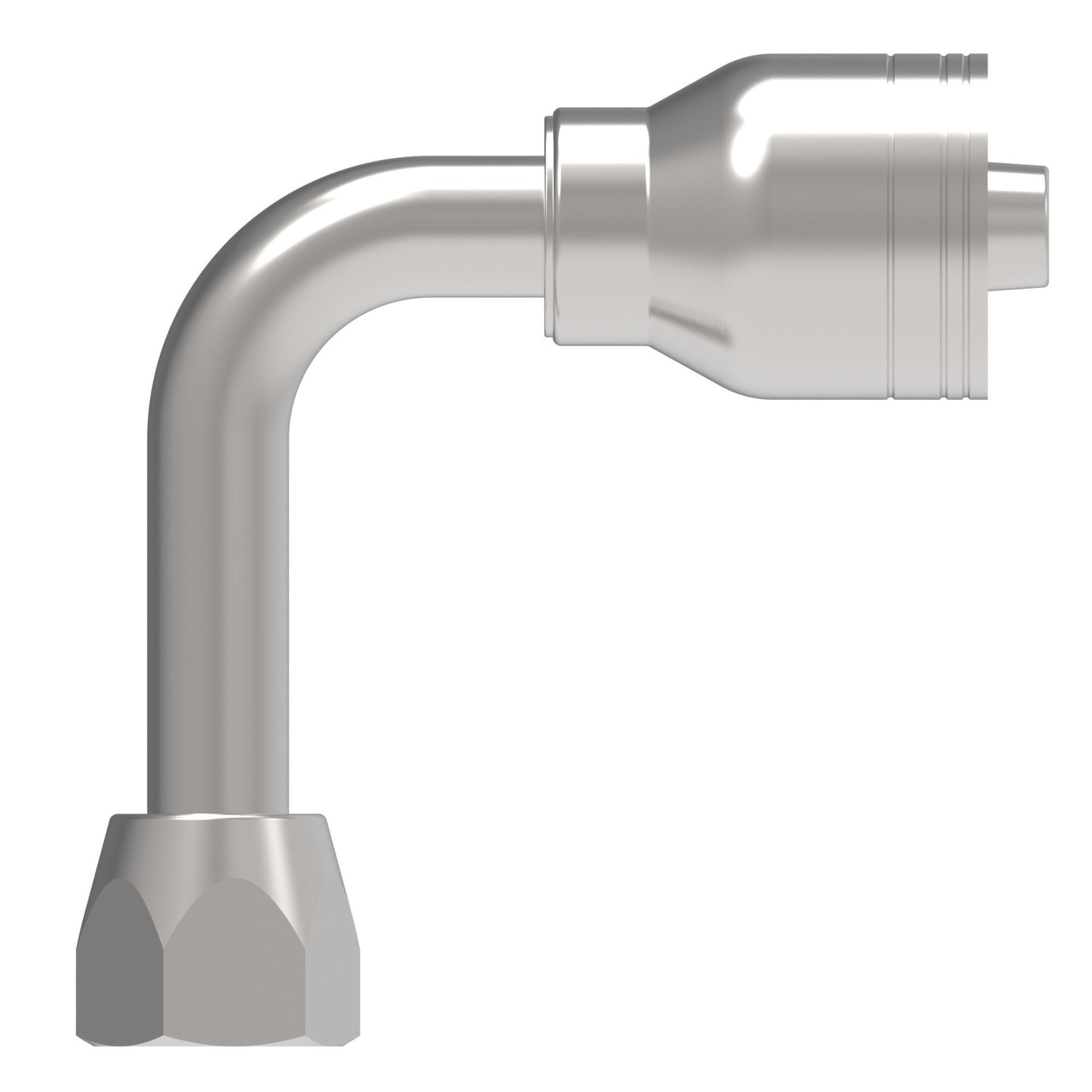

Hose Fittings 1AA8FJC8 [RIGHT]

HOSE FTG, Z/12, JIC-F/12, -S, 90D

12Z-652-TZ

Tools

Product specifications

Characteristic
Value
A dimension IN3.420
A dimension MM86.868
Angle shape90 Degree
BrandWeatherhead by Danfoss
Catalog Item12Z-652-TZ
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Construction StyleCrimp
Drop dimension IN3.730
Drop dimension MM94.74
End type 1Female 37 degree swivel
Finish platingZinc nickel
Hex size 1 IN1.250
Hex size 1 MM32.000
Hose cut off factor IN2.170
Hose cut off factor MM55.118
Inside diameter IN0.580
Inside diameter MM14.732
Product materialCarbon steel
Series1A/Z Series

General specifications

Characteristic
Value
EAN/UPC810075334272
