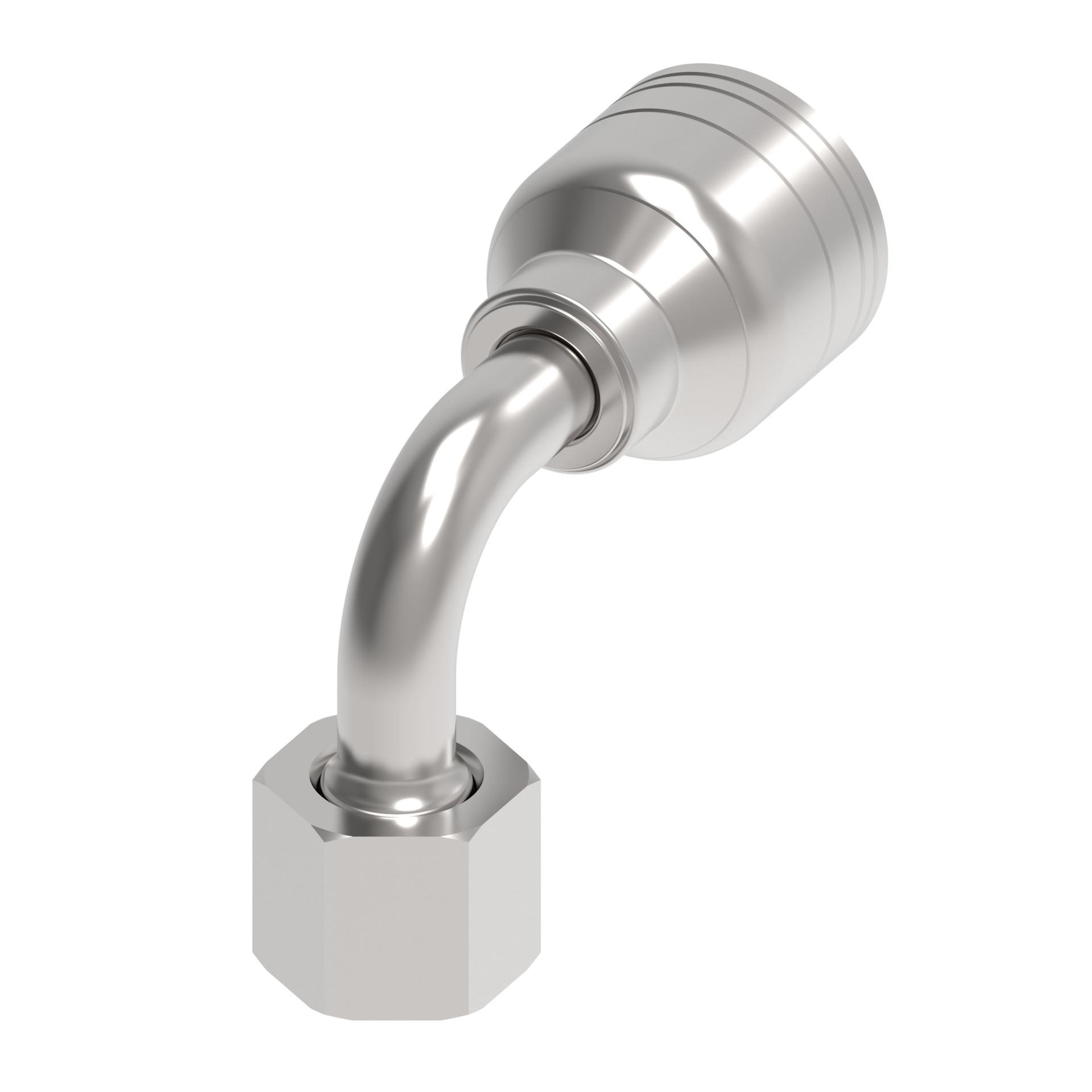

![Hose Fittings 1A6BFB6 [RIGHT]](/_next/image?url=https%3A%2F%2Fassets.danfoss.com%2Fdrawings%2Fpreview%2Flatest%2F213304%2FID432872209470-0101_preview.jpg&w=1920&q=75)
Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 6.460 |
| A dimension MM | 164.000 |
| Angle shape | 90 Degree |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 1.500 |
| Compatible hose ID MM | 38.100 |
| Construction Style | Crimp |
| Drop dimension IN | 3.820 |
| Drop dimension MM | 97.10 |
| End connection torque | 258-347 lb-ft(350-470 Nm) |
| End size 1 | -24 |
| End type 1 | Female BSPP swivel |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 2.165 |
| Hex size 1 MM | 55.000 |
| Hose cut off factor IN | 4.630 |
| Hose cut off factor MM | 117.700 |
| Hose size | -24 |
| Inside diameter IN | 1.260 |
| Inside diameter MM | 32.000 |
| Product height in | 5.171 |
| Product height mm | 131.350 |
| Product length in | 7.539 |
| Product length mm | 191.500 |
| Product material | Carbon steel |
| Product width in | 2.697 |
| Product width mm | 68.500 mm |
| Series | 1A/Z Series |
| Thread sealant | No |
| Thread size 1 | G 1 1/2 |
| Working pressure max bar | 138 |
| Working pressure max psi | 2000 |
| Working temperature max C | 126 |
| Working temperature max F | 260 |
| Working temperature min C | -46 |
| Working temperature min F | -50 |
General specifications
Characteristic | Value |
|---|---|
| Proposition 65 | Cancer and Reproductive Harm |
