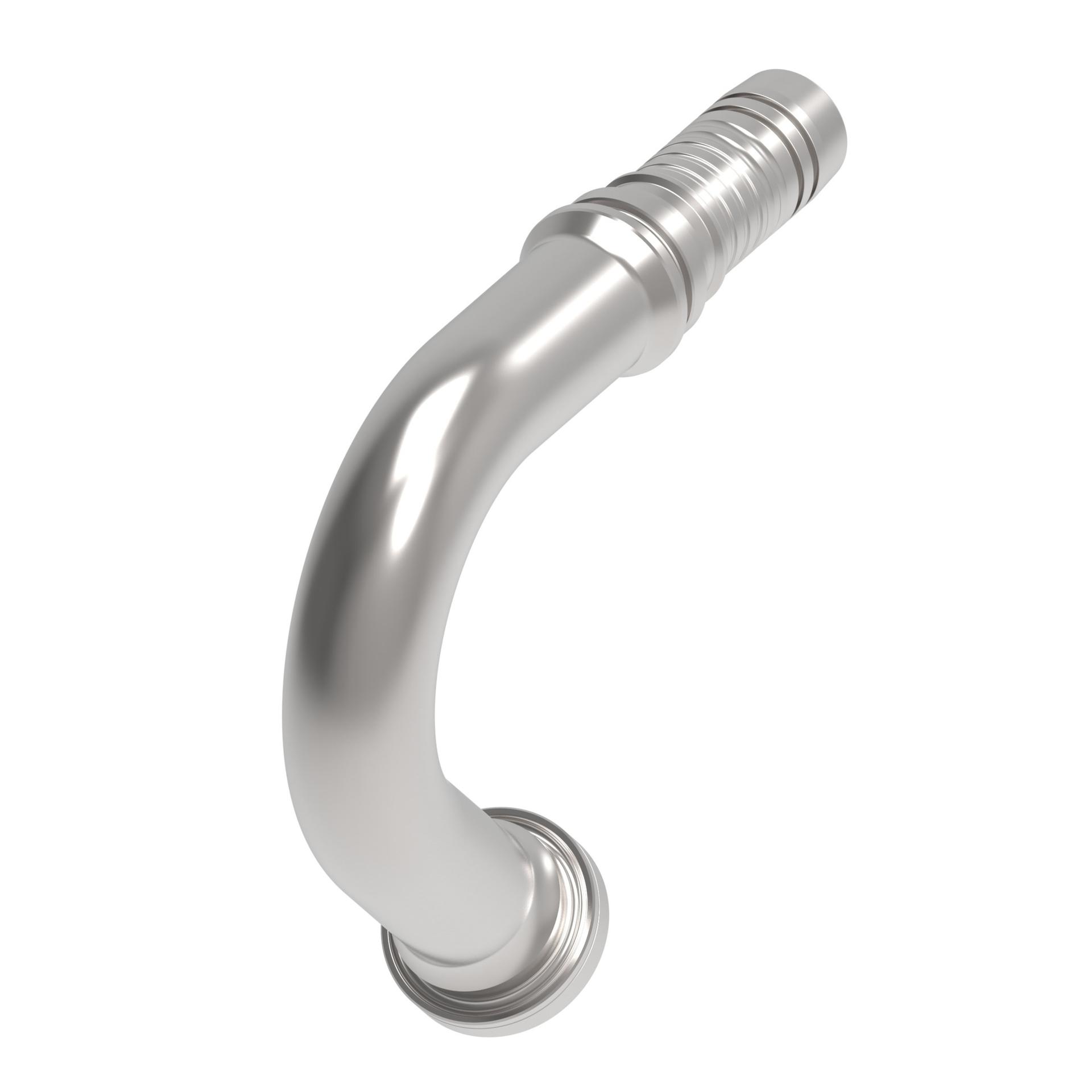

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 5.770 |
| A dimension MM | 146.600 |
| Angle shape | 135 Degree |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 1.250 |
| Compatible hose ID MM | 31.800 |
| Construction Style | Crimp |
| Drop dimension IN | 5.910 |
| Drop dimension MM | 150.00 |
| End Type 1 | Split flange code 62 |
| End size 1 | -20 |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 2.429 |
| Hose cut off factor MM | 61.700 |
| Hose size | -20 |
| Inside diameter IN | 1.0000 |
| Inside diameter MM | 25.5000 |
| Product height in | 6.779 |
| Product height mm | 172.199 |
| Product length in | 8.055 |
| Product length mm | 204.600 |
| Product material | Carbon steel |
| Product width in | 2.126 |
| Product width mm | 54.000 mm |
| Series | 1A/Z Series |
| Thread sealant | No |
| Working pressure max bar | 414 |
| Working pressure max psi | 6000 |
