Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 3.630 |
| A dimension MM | 92.202 |
| Angle shape | Straight |
| Brand | Aeroquip by Danfoss |

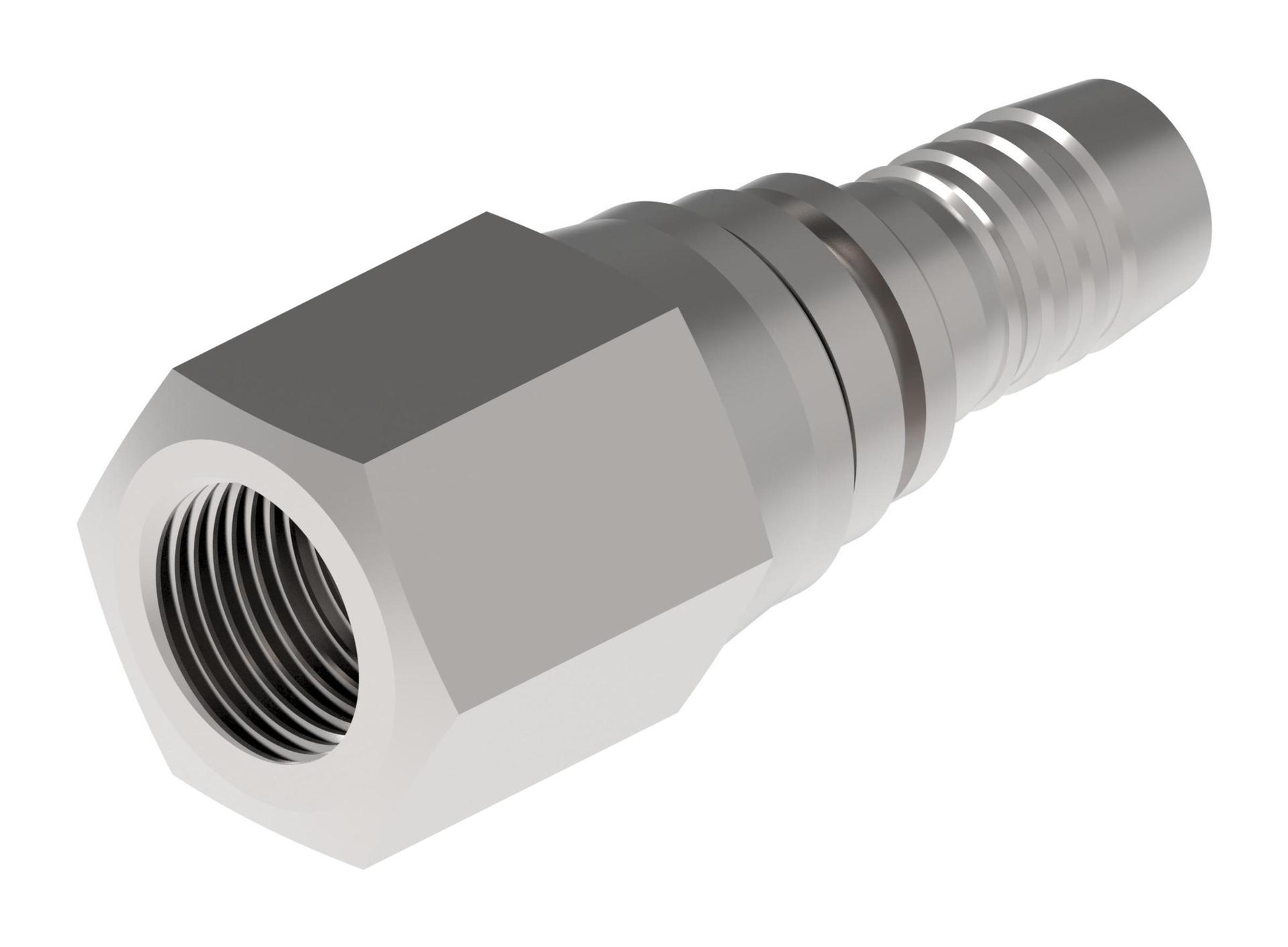

| Catalog Item | 1SA12PF12 |
| Compatible hose ID IN | 0.750 |
| Compatible hose ID MM | 19.000 |
| Compatible hoses | 2781 |
| Construction Style | Crimp |
| End size 1 | -12 |
| End type 1 | Female pipe (NPTF) |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 1.400 |
| Hex size 1 MM | 35.560 |
| Hose cut off factor IN | 2.440 |
| Hose cut off factor MM | 61.976 |
| Hose size | -12 |
| Inside diameter IN | 0.610 |
| Inside diameter MM | 15.494 |
| Product material | Carbon steel |
| Seal material | Nitrile (NBR) |
| Series | 1W |
| Thread sealant | Yes |
| Thread size 1 | 3/4-14 NPTF |
