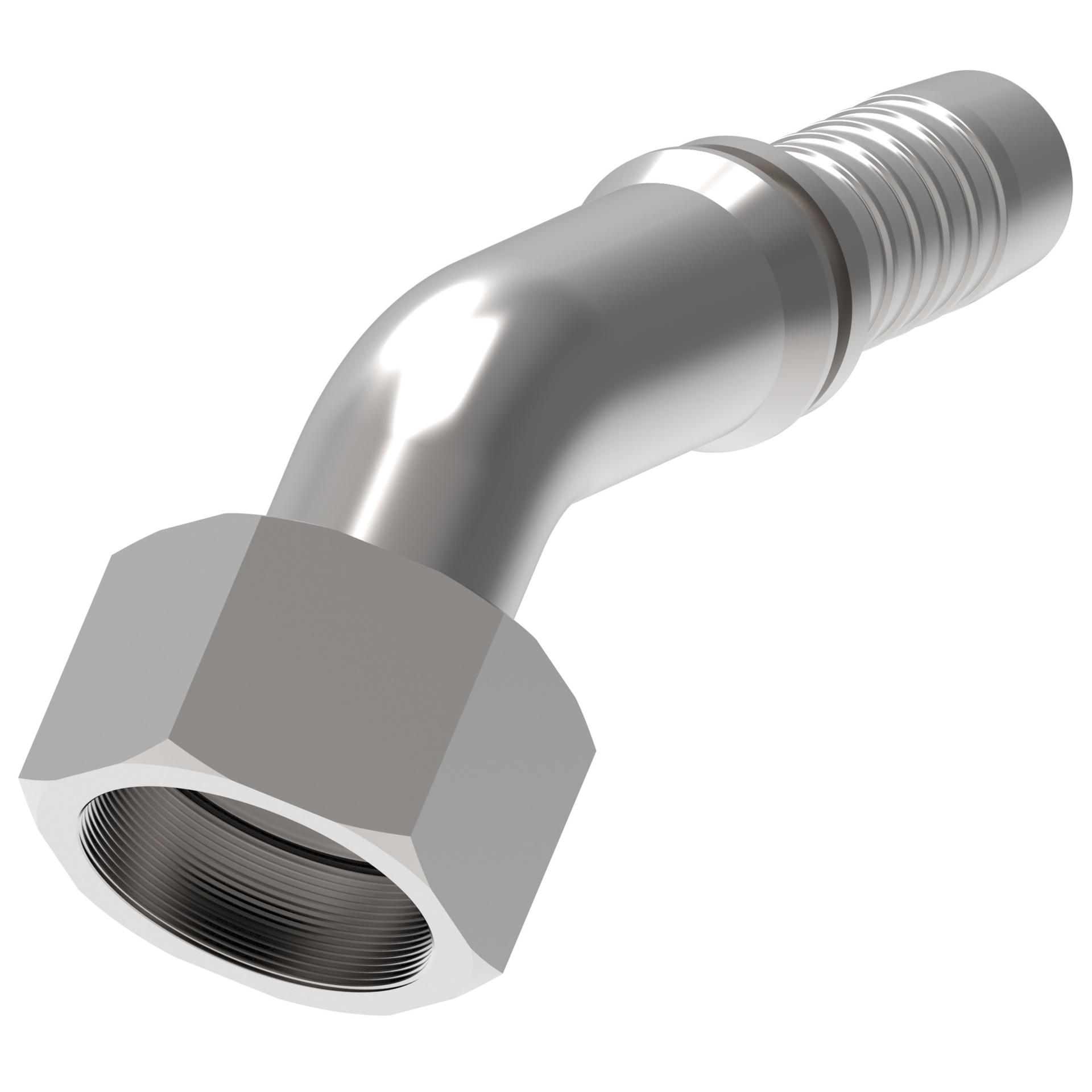

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 4.039 |
| A dimension MM | 102.600 |
| Angle shape | 45 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.620 |
| Compatible hose ID MM | 15.900 |
| Construction Style | Crimp |
| Drop dimension IN | 0.956 |
| Drop dimension MM | 24.30 |
| End Type 2 | Line/hose/tube |
| End size 2 | -6 |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.260 |
| Hex size 1 MM | 32.004 |
| Hex size 2 IN | 1.260 |
| Hex size 2 MM | 32.000 |
| Hose cut off factor IN | 2.700 |
| Hose cut off factor MM | 68.600 |
| Hose size | -10 |
| Inside diameter IN | 0.4720 |
| Inside diameter MM | 12.0000 |
| Product height in | 3.070 |
| Product height mm | 77.978 |
| Product length in | 4.530 |
| Product length mm | 115.062 |
| Product material | Carbon steel |
| Product width in | 1.259 |
| Product width mm | 31.979 mm |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Thread size 1 | M27x1.5 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
