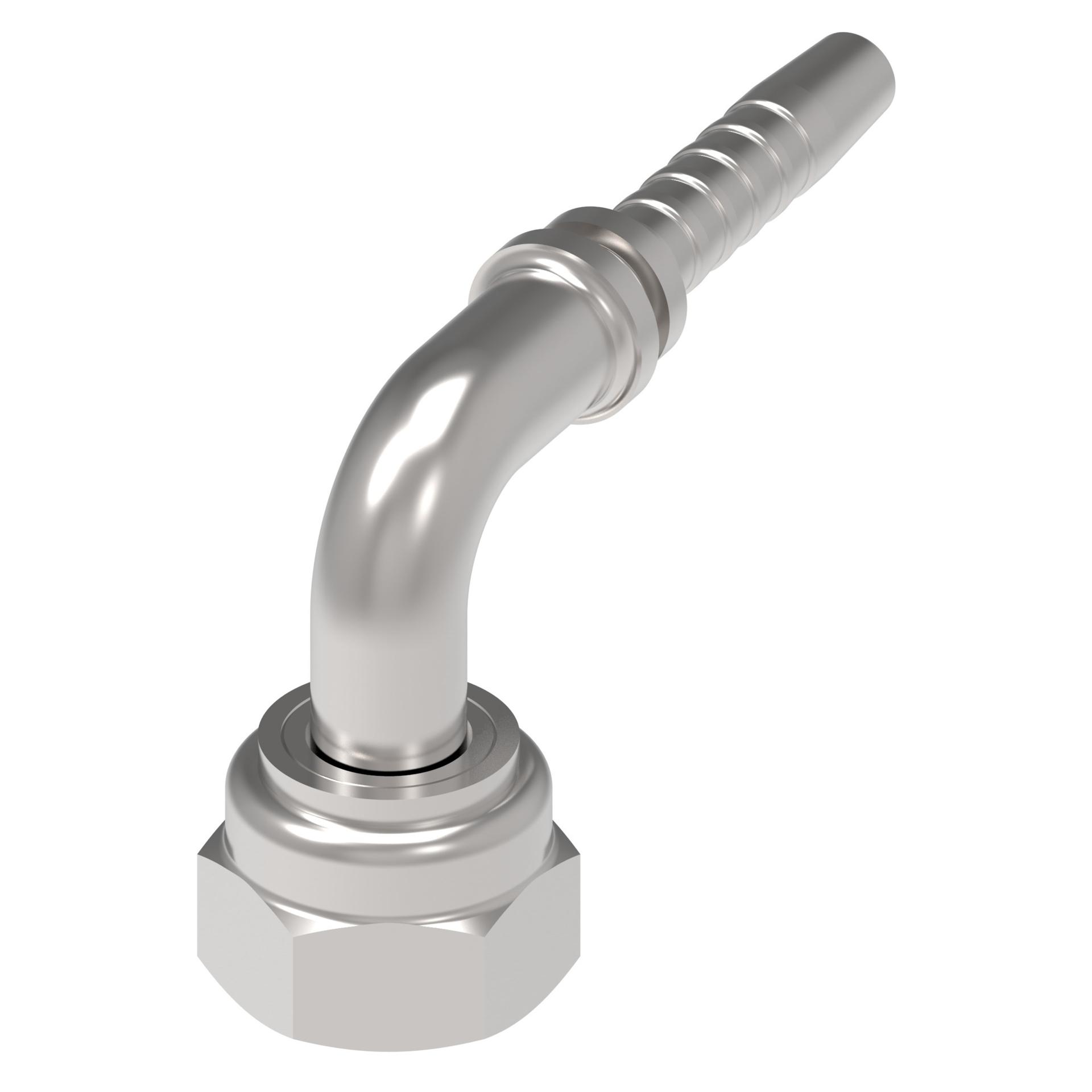

Hose Fittings 20691-14-04Z(RIGHT)

FITTING-NIPPLE

20691-16-04Z


Tools

Product specifications

Characteristic
Value
A dimension IN2.280
A dimension MM58.000
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.400
Construction StyleCrimp
Drop dimension IN1.450
Drop dimension MM37.00
End size 1-16
Finish platingZinc plating
Hex size 1 IN0.870
Hex size 1 MM22.098
Hose cut off factor IN1.180
Hose cut off factor MM30.000
Hose size-4
Inside diameter IN0.1570
Inside diameter MM4.0000
Product height in1.950
Product height mm49.530
Product length in2.710
Product length mm68.834
Product materialCarbon steel
Product width in0.870
Product width mm22.098 mm
SeriesWinner 2-Piece
Thread sealantNo
Thread size 1M16x1.5
