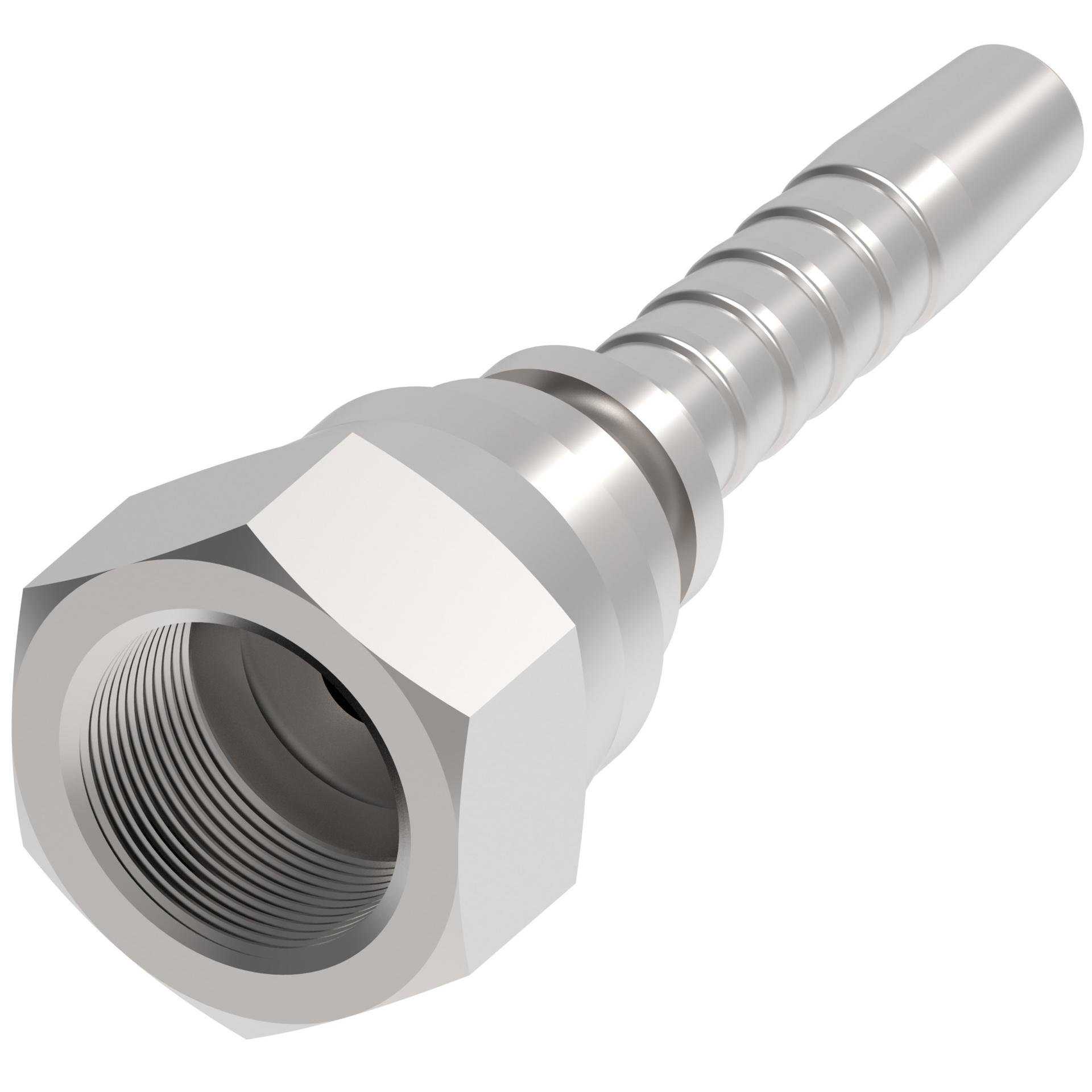

Hose Fittings 20711-12-04AZ(RIGHT)

FITTING-NIPPLE

20711-12-04CZ


Tools

Product specifications

Characteristic
Value
A dimension IN1.670
A dimension MM42.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.400
Construction StyleCrimp
Finish platingZinc plating
Hex size 1 IN0.670
Hex size 1 MM17.018
Hose cut off factor IN0.570
Hose cut off factor MM14.500
Hose size-4
Inside diameter IN0.6600
Inside diameter MM17.0000
Product height in0.790
Product height mm20.066
Product length in1.670
Product length mm42.418
Product materialCarbon steel
Product width in0.670
Product width mm17.018 mm
SeriesWinner 2-Piece
Thread sealantNo
Thread size 1M12x1.5
