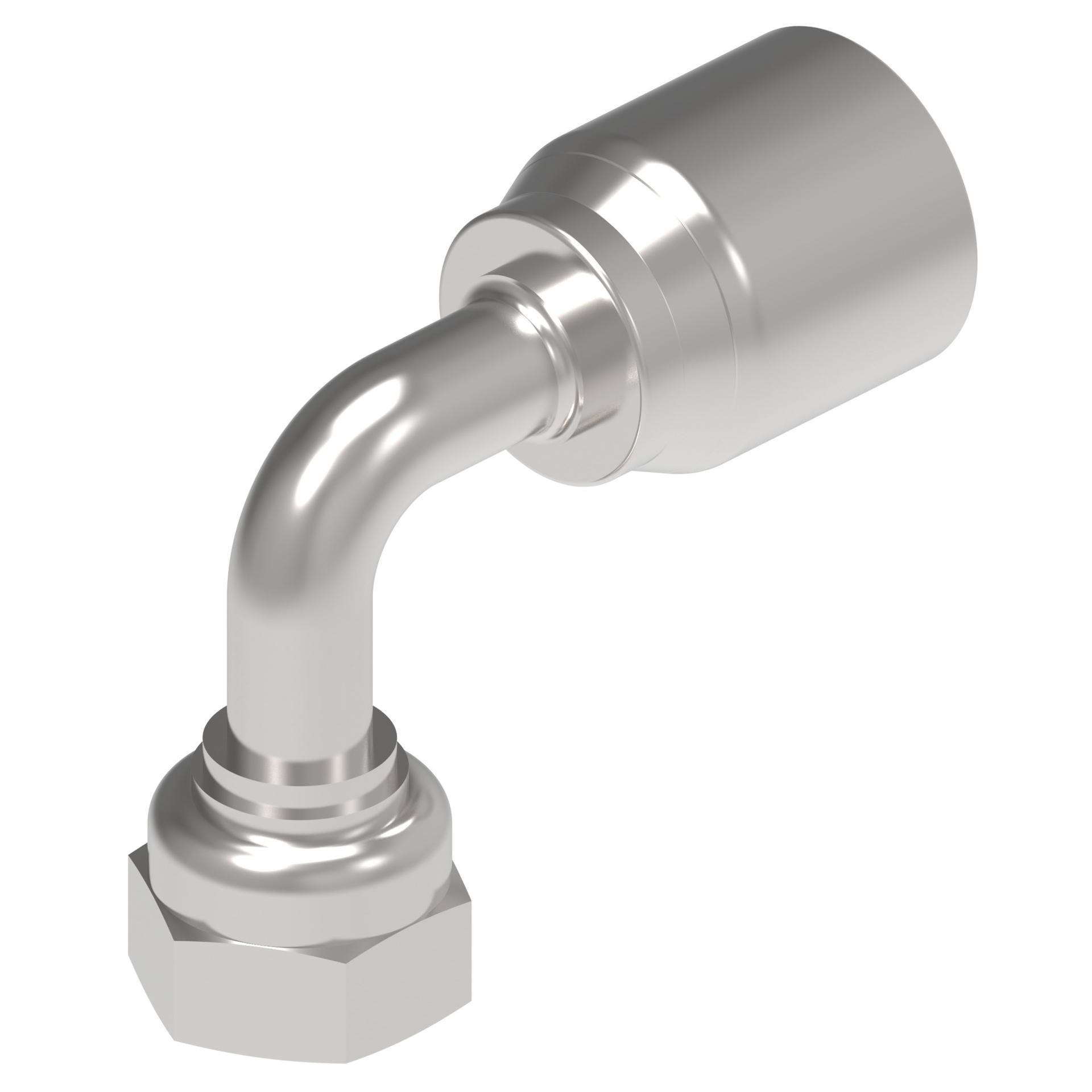

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 3.540 |
| A dimension MM | 90.000 |
| Angle shape | 90 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.620 |
| Compatible hose ID MM | 15.900 |
| Compatible hoses | EC110EC210FC687GH781GH793FC686GH663 |
| Construction Style | Crimp |
| Drop dimension IN | 2.120 |
| Drop dimension MM | 54.00 |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.260 |
| Hex size 1 MM | 32.004 |
| Hex size 2 IN | 1.260 |
| Hex size 2 MM | 32.004 |
| Hose cut off factor IN | 2.200 |
| Hose cut off factor MM | 56.000 |
| Hose size | -10 |
| Inside diameter IN | 0.4700 |
| Inside diameter MM | 12.0000 |
| Product height in | 3.889 |
| Product height mm | 98.780 |
| Product length in | 4.173 |
| Product length mm | 105.994 |
| Product material | Carbon steel |
| Product width in | 1.401 |
| Product width mm | 35.585 mm |
| Thread sealant | No |
| Thread size 1 | M27x1.5 |
