Hose Fittings 1AA24FRC24 [RIGHT]

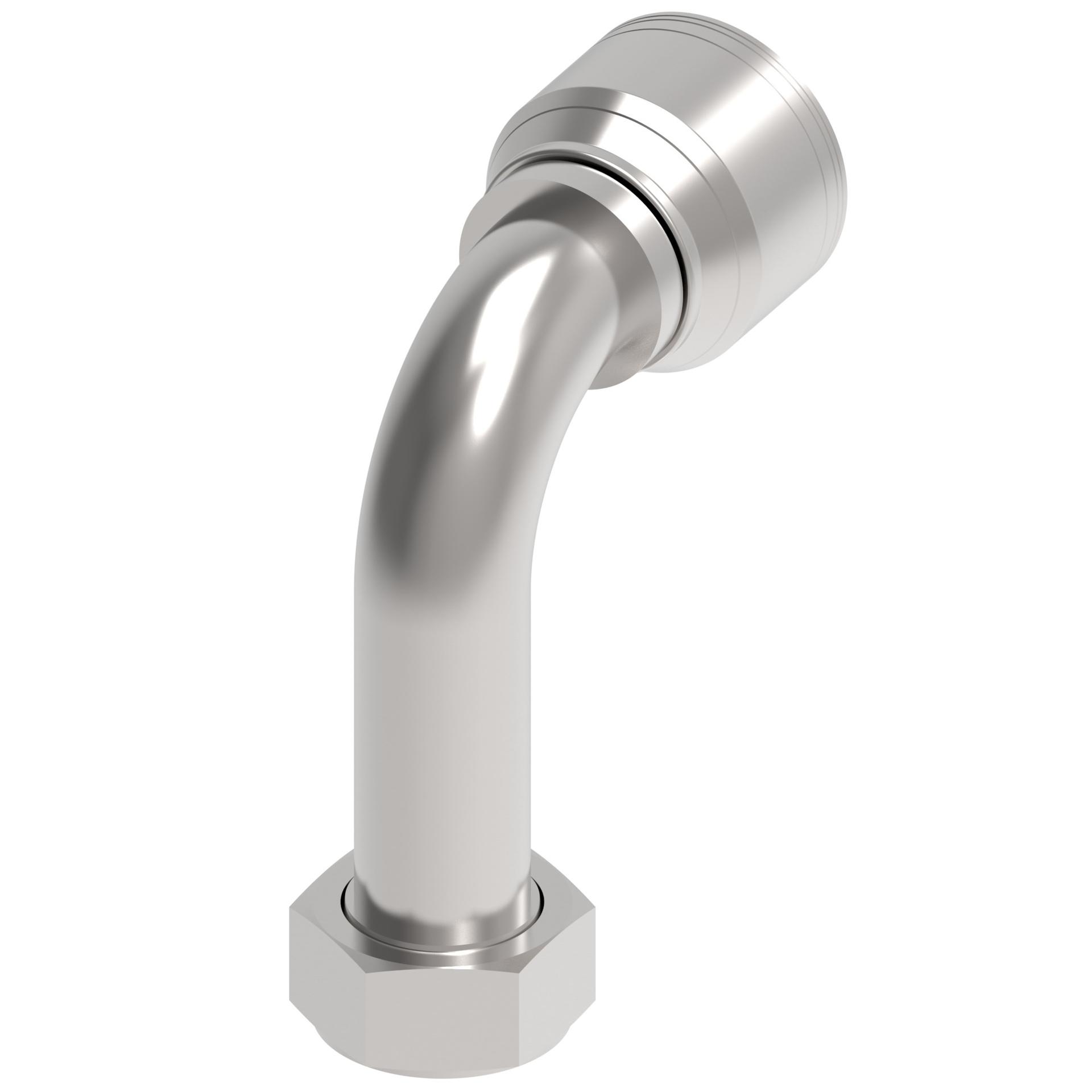

Hose End (perm) 90D F ORS SWIVEL LONG

24Z-A84

Tools

Product specifications

Characteristic
Value
Angle shape90 Degree
BrandWeatherhead by Danfoss
Compatible hose ID IN1.500
Compatible hose ID MM38.100
CompliancesSAE J1176
Construction StyleCrimp
Drop dimension IN6.000
Drop dimension MM141.00
End size 1-32
End type 1Female ORFS swivel
Finish platingDura-kote
Hex size 1 IN2.250
Hex size 1 MM57.150
Hex size 2 IN2.250
Hex size 2 MM57.150
Hose cut off factor IN2.810
Hose cut off factor MM71.374
Hose size-24
Inside diameter IN1.2600
Inside diameter MM32.0040
Product materialCarbon steel
Thread sealantNo

General specifications

Characteristic
Value
EAN/UPC639789319845
