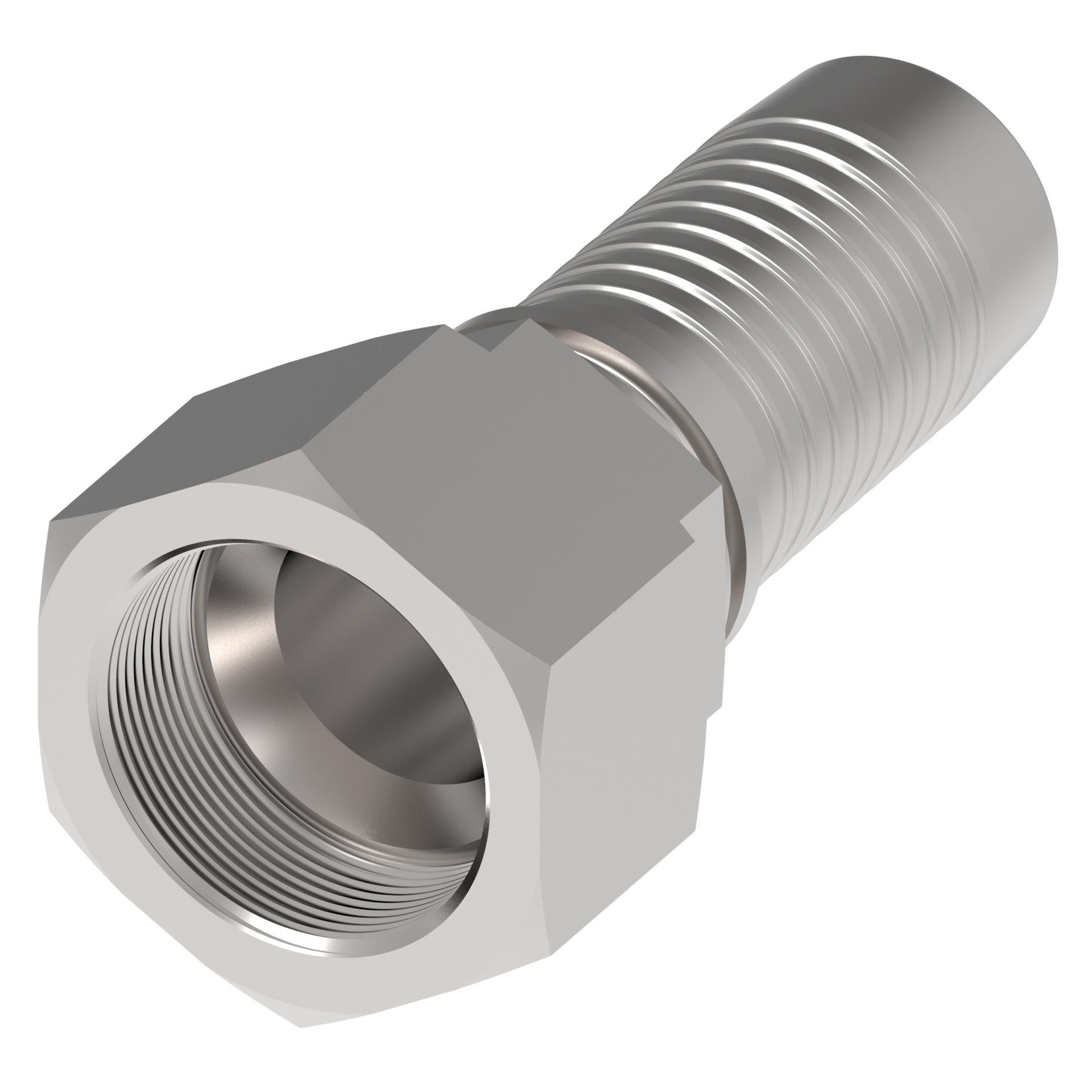

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 4.606 |
| A dimension MM | 117.000 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 2.000 |
| Compatible hose ID MM | 50.800 |
| Construction Style | Crimp |
| End connection torque | 245-258 lb-ft(334-352 Nm) |
| End type 1 | Female 37 degree swivel |
| Finish plating | Zinc plating |
| Hex size 1 IN | 2.560 |
| Hex size 1 MM | 65.024 |
| Hex size 2 IN | 2.950 |
| Hex size 2 MM | 74.930 |
| Hose cut off factor IN | 1.771 |
| Hose cut off factor MM | 45.000 |
| Hose size | -32 |
| Inside diameter IN | 1.6920 |
| Inside diameter MM | 43.0000 |
| Product height in | 3.400 |
| Product height mm | 86.360 |
| Product length in | 5.530 |
| Product length mm | 14.046 |
| Product material | Carbon steel |
| Product width in | 2.950 |
| Product width mm | 74.930 mm |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Thread size 1 | 2 1/2-12 UN |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
