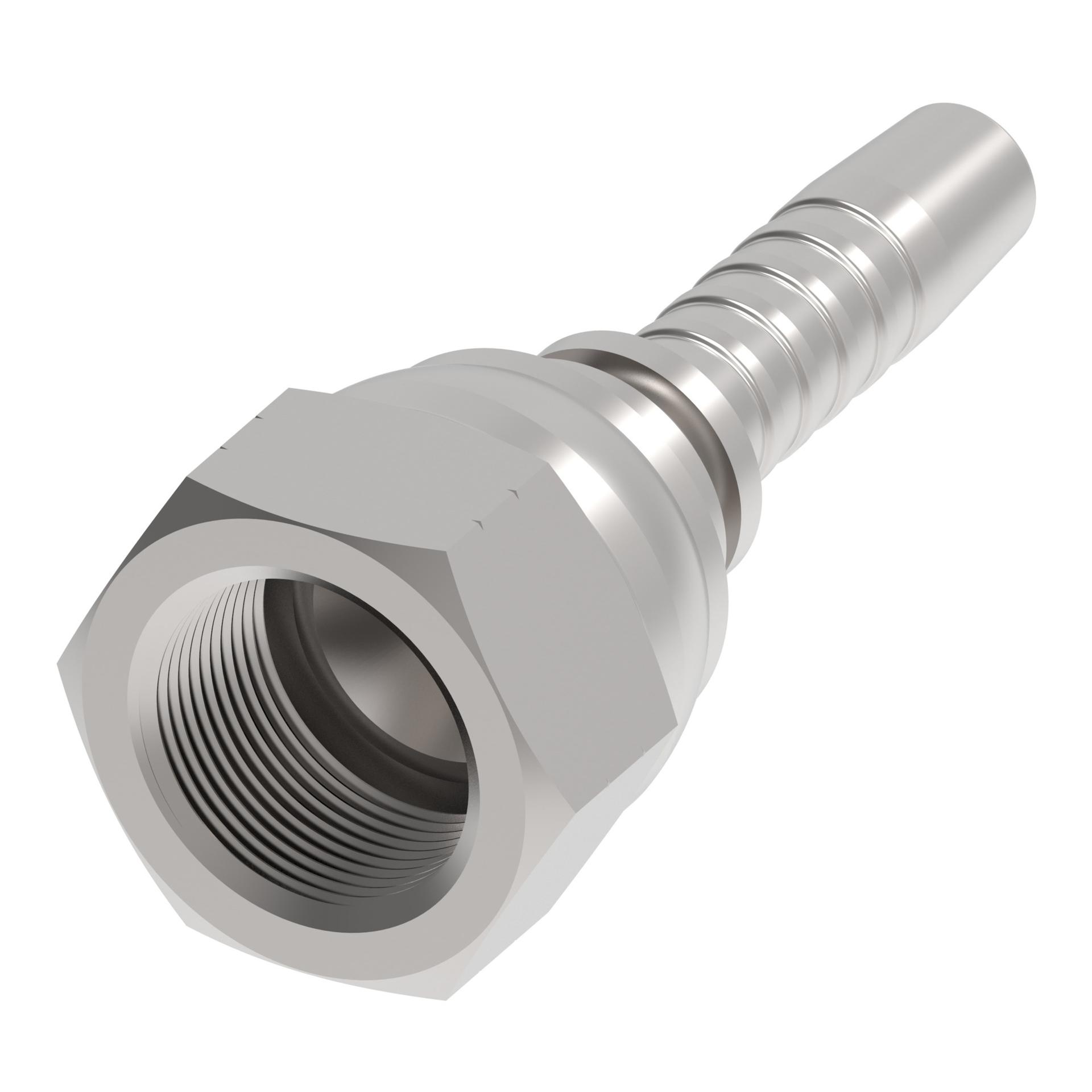

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 1.633 |
| A dimension MM | 41.500 |
| Angle shape | Straight |
| Backup hex size IN | 1.063 |
| Backup hex size MM | 27.000 |
| Brand | Winner by Danfoss |
| Catalog Item | 27810-10-08Z |
| Compatible hose ID IN | 0.500 |
| Compatible hose ID MM | 12.700 |
| Construction Style | Crimp |
| End connection hex size IN | 1.062 |
| End connection hex size MM | 27.000 |
| End size 1 | -10 |
| End size 2 | -8 |
| End type 1 | Female 45 degree swivel |
| End type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 0.598 |
| Hose cut off factor MM | 15.200 |
| Hose size | -8 |
| Inside diameter IN | 0.389 |
| Inside diameter MM | 9.900 |
| Product height in | 1.220 |
| Product height mm | 30.988 |
| Product length in | 1.751 |
| Product length mm | 44.475 |
| Product material | Carbon steel |
| Product width in | 1.062 |
| Product width mm | 26.974 |
| Thread size 1 | 7/8-14 UNF |
