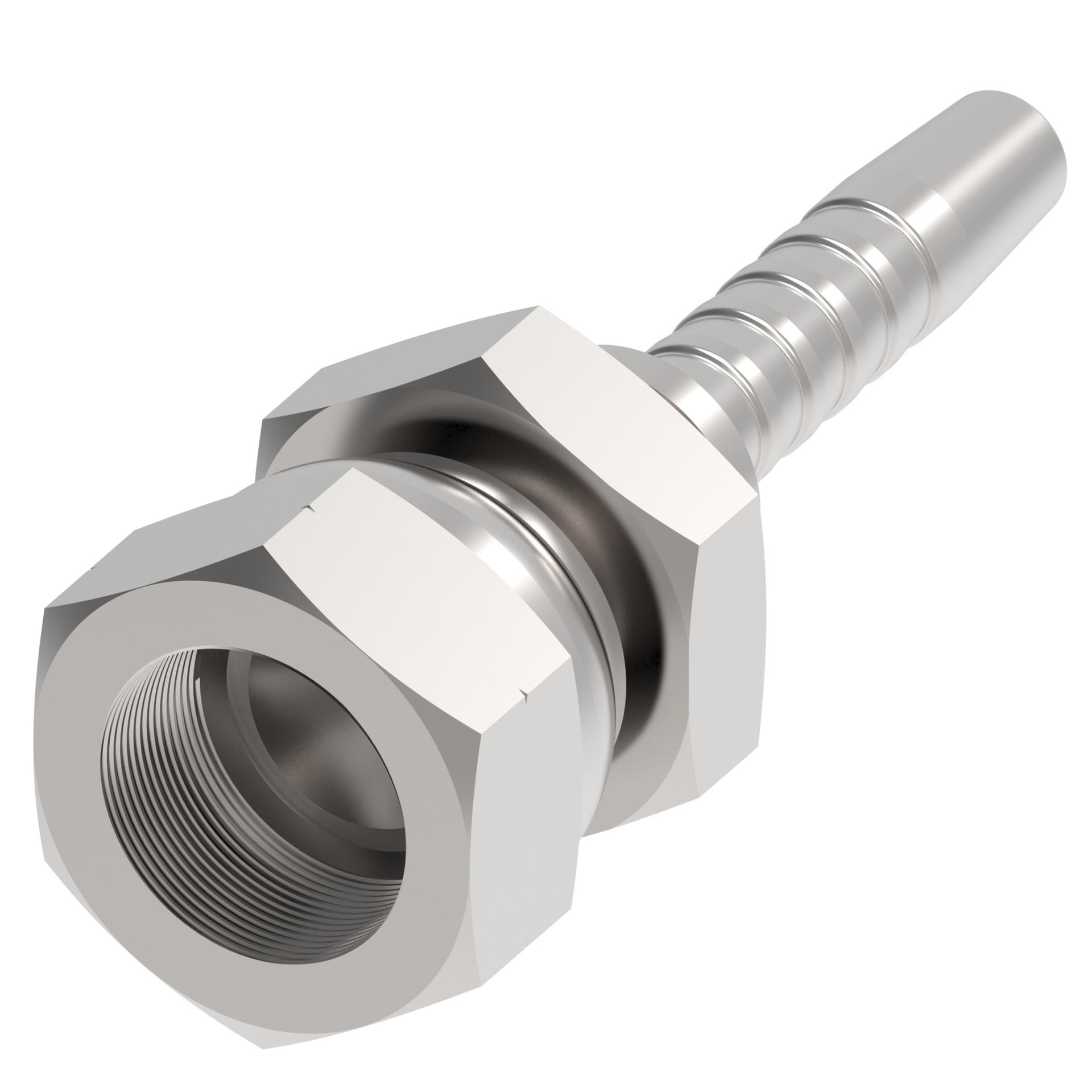

Hose Fittings 29611-04-04Z (RIGHT)

FITTING-NIPPLE

29611-02-03Z


Tools

Product specifications

Characteristic
Value
A dimension IN1.633
A dimension MM41.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.190
Construction StyleCrimp
End size 1-2
End type 1Female BSPP DKO swivel 60 deg.
Finish platingZinc plating
Hex size 1 IN0.551
Hex size 1 MM14.000
Hex size 2 IN0.551
Hex size 2 MM14.000
Hose cut off factor IN0.787
Hose cut off factor MM20.000
Inside diameter IN0.1180
Inside diameter MM3.0000
Product height in1.000
Product height mm25.400
Product length in1.630
Product length mm41.402
Product materialCarbon steel
Product width in0.750
Product width mm19.050 mm
Thread sealantNo
Thread size 1G 1/8
Working pressure max bar350
Working pressure max psi5000
