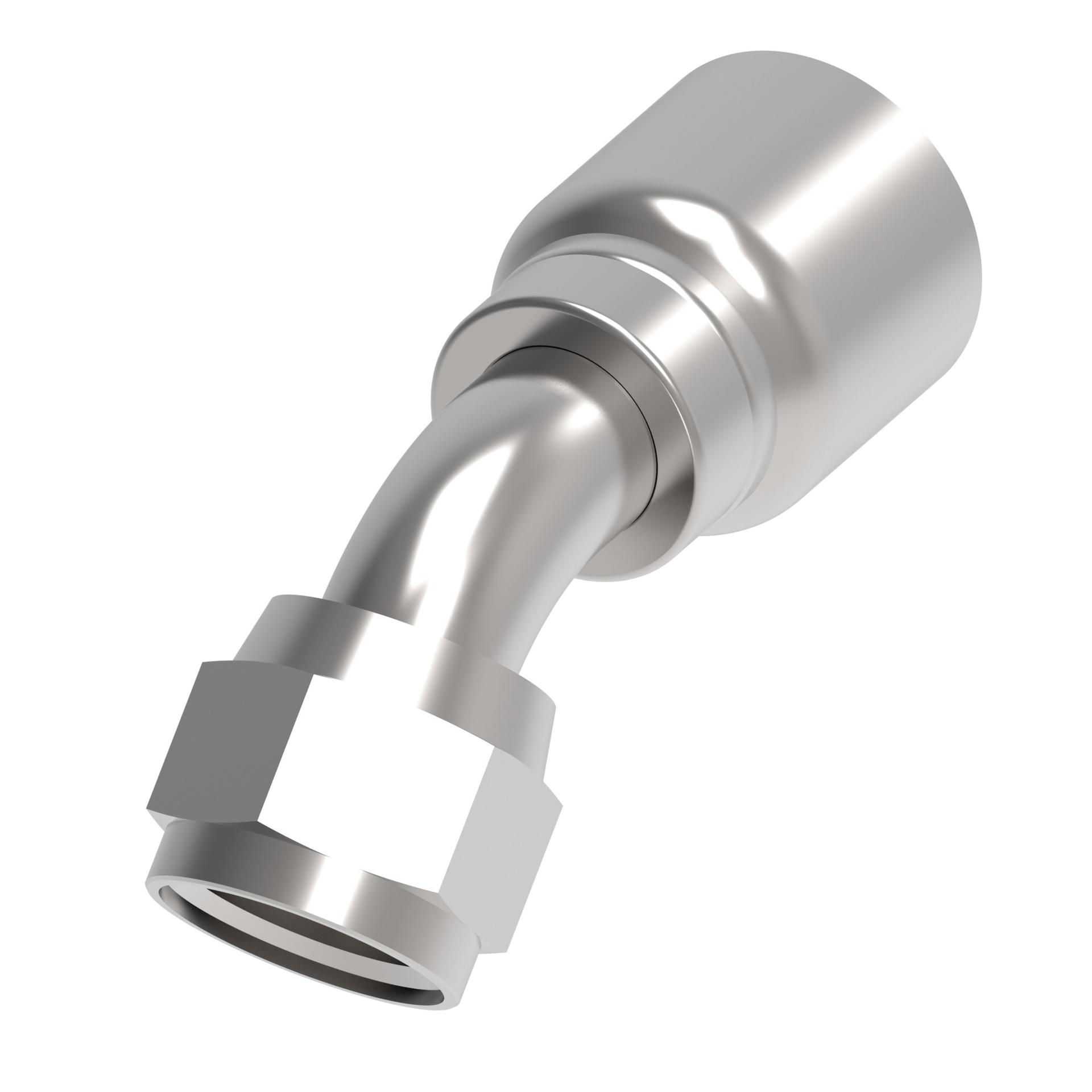

Hose Fittings 1GA10FJA10 [RIGHT]

Fitting(Perm) OTC 45 D F SAE37 Swivel

32710E-690

Tools

Product specifications

Characteristic
Value
A dimension IN2.710
A dimension MM68.834
Angle shape45 Degree
BrandDanfoss
Compatible hose ID IN0.620
Compatible hose ID MM15.900
Compatible hosesGH100
Compatible tube OD IN0.63
Compatible tube OD MM16.002
Construction StyleCrimp
Drop dimension IN1.000
Drop dimension MM25.40
End connection hex size IN1.000
End connection hex size MM25.400
End connection torque57-62 lb-ft(77-85 Nm)
End size 1-10
End type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 1 IN1.000
Hex size 1 MM25.400
Hose cut off factor IN1.790
Hose cut off factor MM45.466
Hose size-10
Inside diameter IN0.460
Inside diameter MM11.684
Product materialCarbon steel
SeriesOTC
Tube OD 1 IN0.630
Tube OD 1 MM16.002
Working pressure max bar350
Working pressure max psi5100

General specifications

Characteristic
Value
EAN/UPC639789338099
