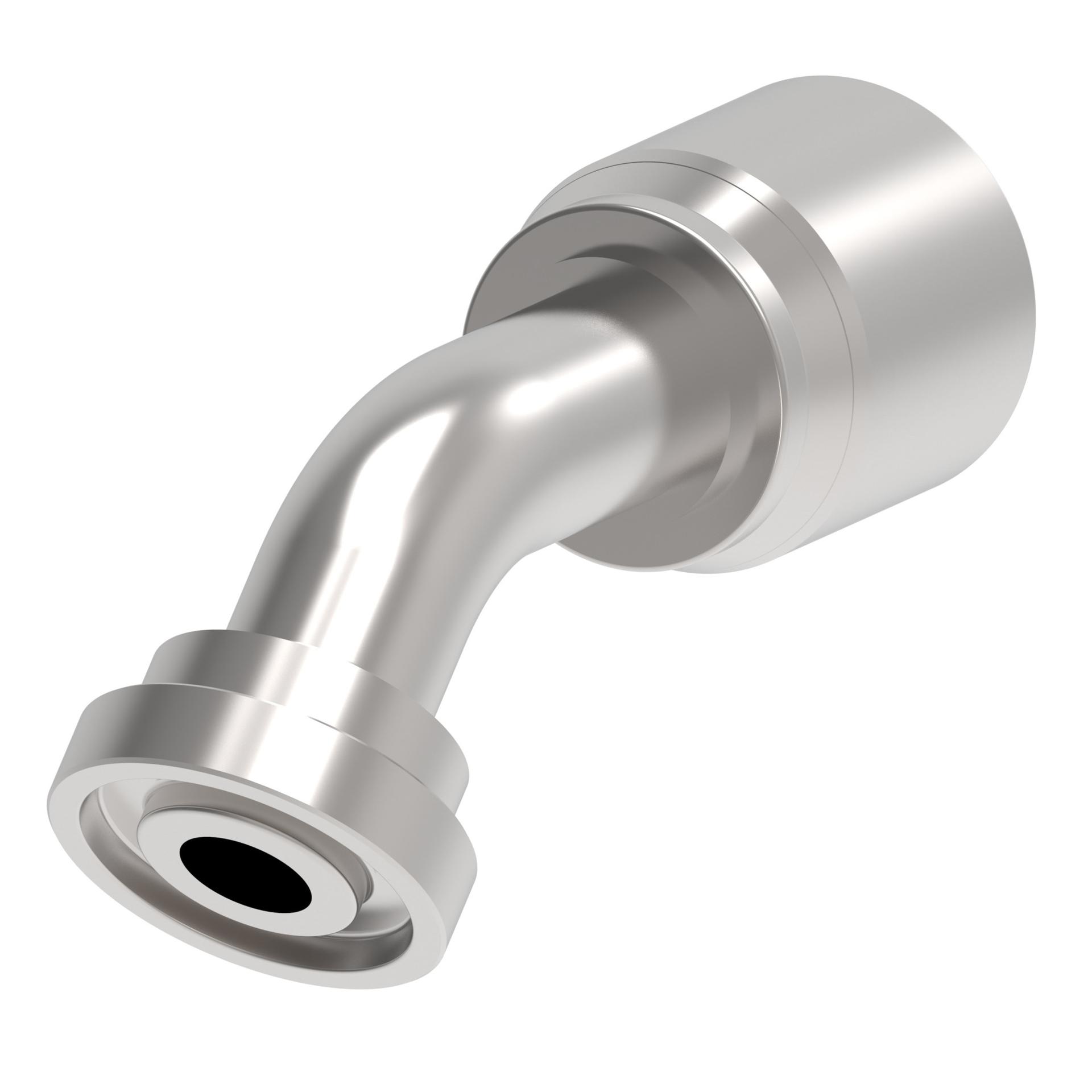

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 5.153 |
| A dimension MM | 130.900 |
| Angle shape | 45 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.000 |
| Compatible hose ID MM | 25.400 |
| Compatible hoses | EC110EC210FC687GH781GH793FC686GH663 |
| Construction Style | Crimp |
| Drop dimension IN | 1.169 |
| Drop dimension MM | 29.70 |
| End size 1 | -16 |
| End size 2 | -16 |
| End type 1 | Split flange code 61 |
| End type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 3.303 |
| Hose cut off factor MM | 83.900 |
| Hose size | -16 |
| Inside diameter IN | 0.8260 |
| Inside diameter MM | 21.0000 |
| Product height in | 2.963 |
| Product height mm | 75.250 |
| Product length in | 6.020 |
| Product length mm | 152.900 |
| Product material | Carbon steel |
| Product width in | 1.748 |
| Product width mm | 44.399 mm |
| Thread sealant | No |
| Working pressure max bar | 345 |
| Working pressure max psi | 5000 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
