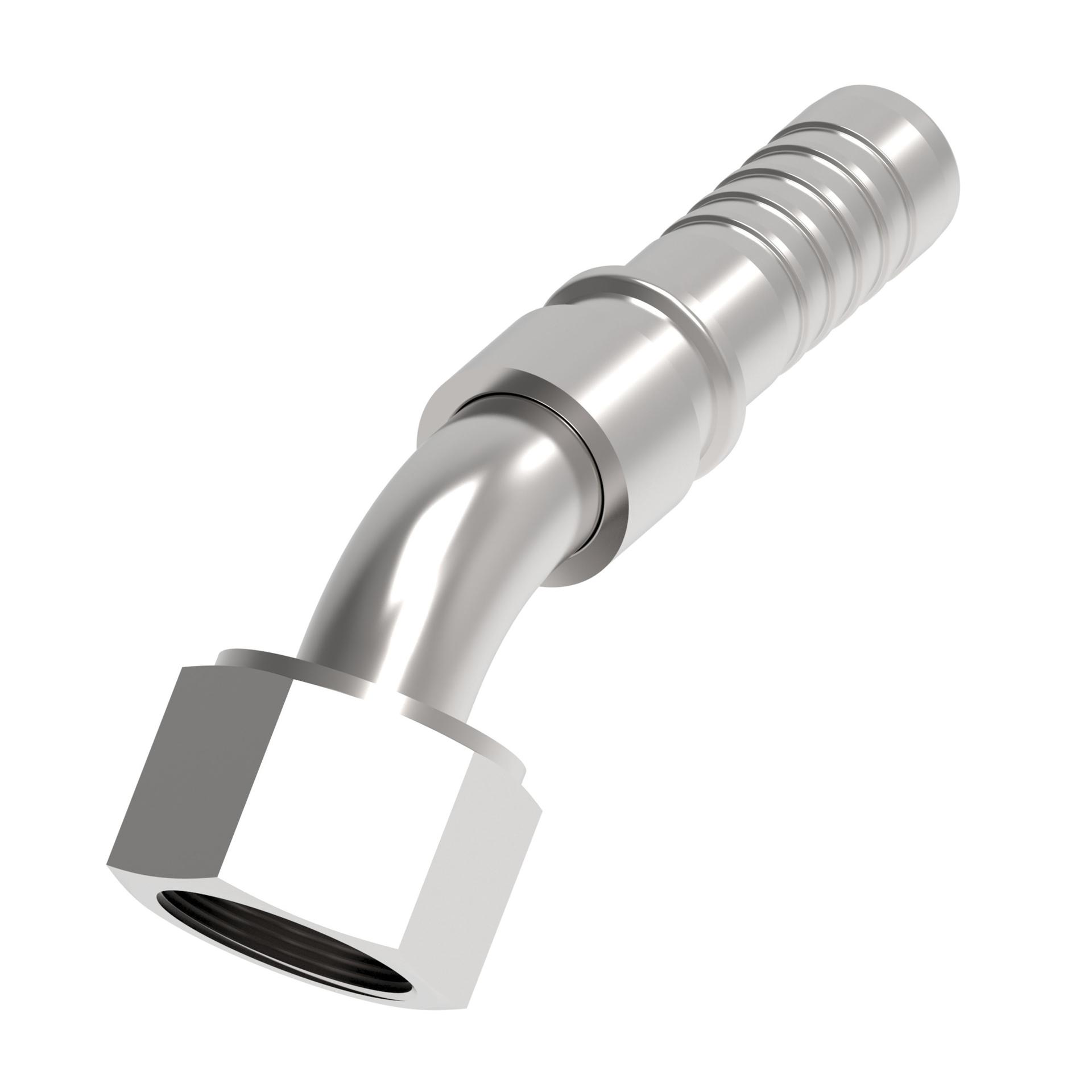

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 6.050 |
| A dimension MM | 153.670 |
| Angle shape | 45 Degree |
| Brand | Aeroquip by Danfoss |
| Catalog Item | 50011-15-06FAXZ |
| Compatible hose ID IN | 1.500 |
| Compatible hose ID MM | 38.100 |
| Construction Style | Crimp |
| Drop dimension IN | 1.070 |
| Drop dimension MM | 27.18 |
| End size 1 | -32 |
| End type 1 | Female ORFS swivel |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 2.250 |
| Hex size 1 MM | 57.150 |
| Hose cut off factor IN | 3.550 |
| Hose cut off factor MM | 90.170 |
| Hose size | -24 |
| Inside diameter IN | 1.170 |
| Inside diameter MM | 29.718 |
| Product material | Carbon steel |
| Series | EJ Series |
| Thread sealant | No |
| Working pressure max BAR | 276 |
| Working pressure max PSI | 4000 |
