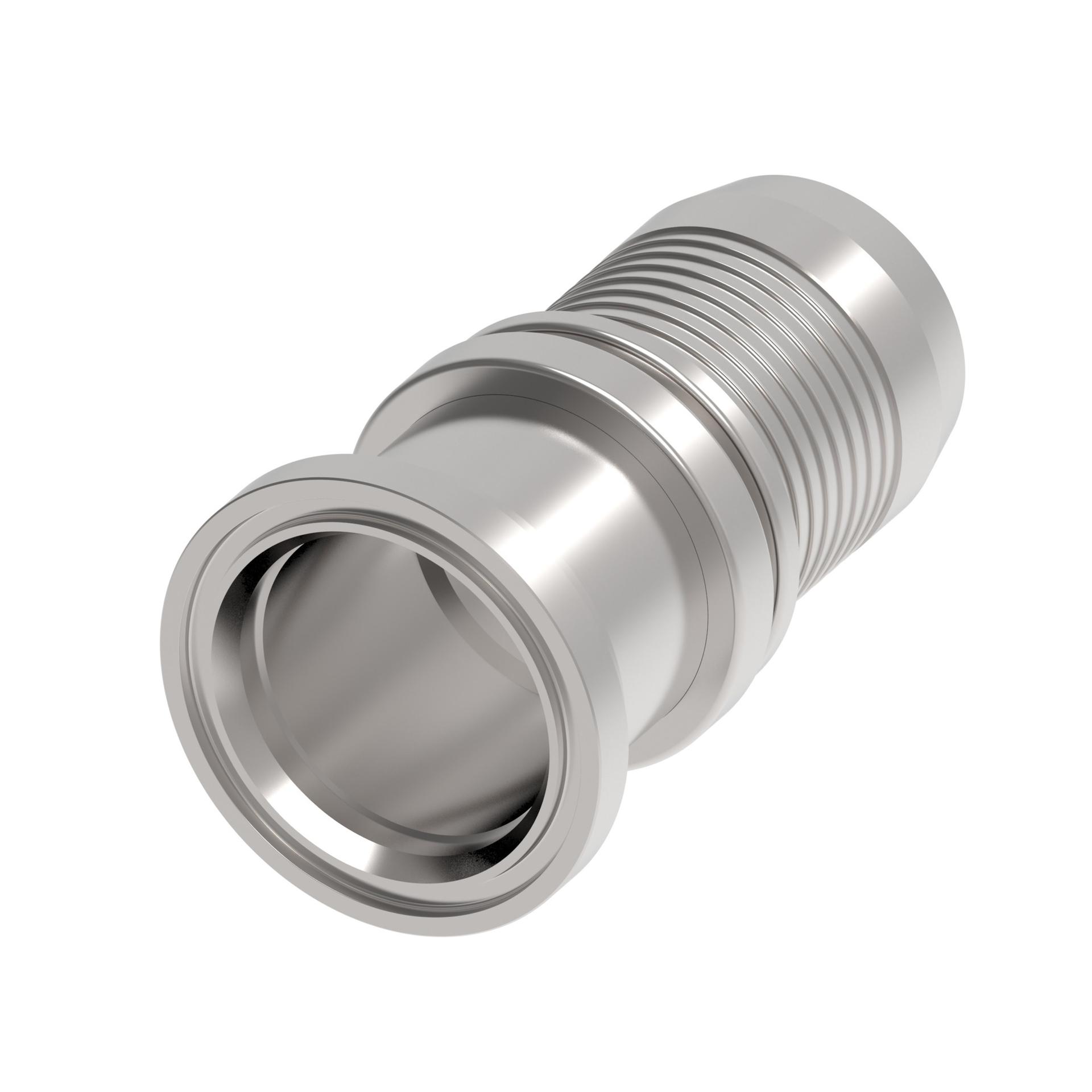

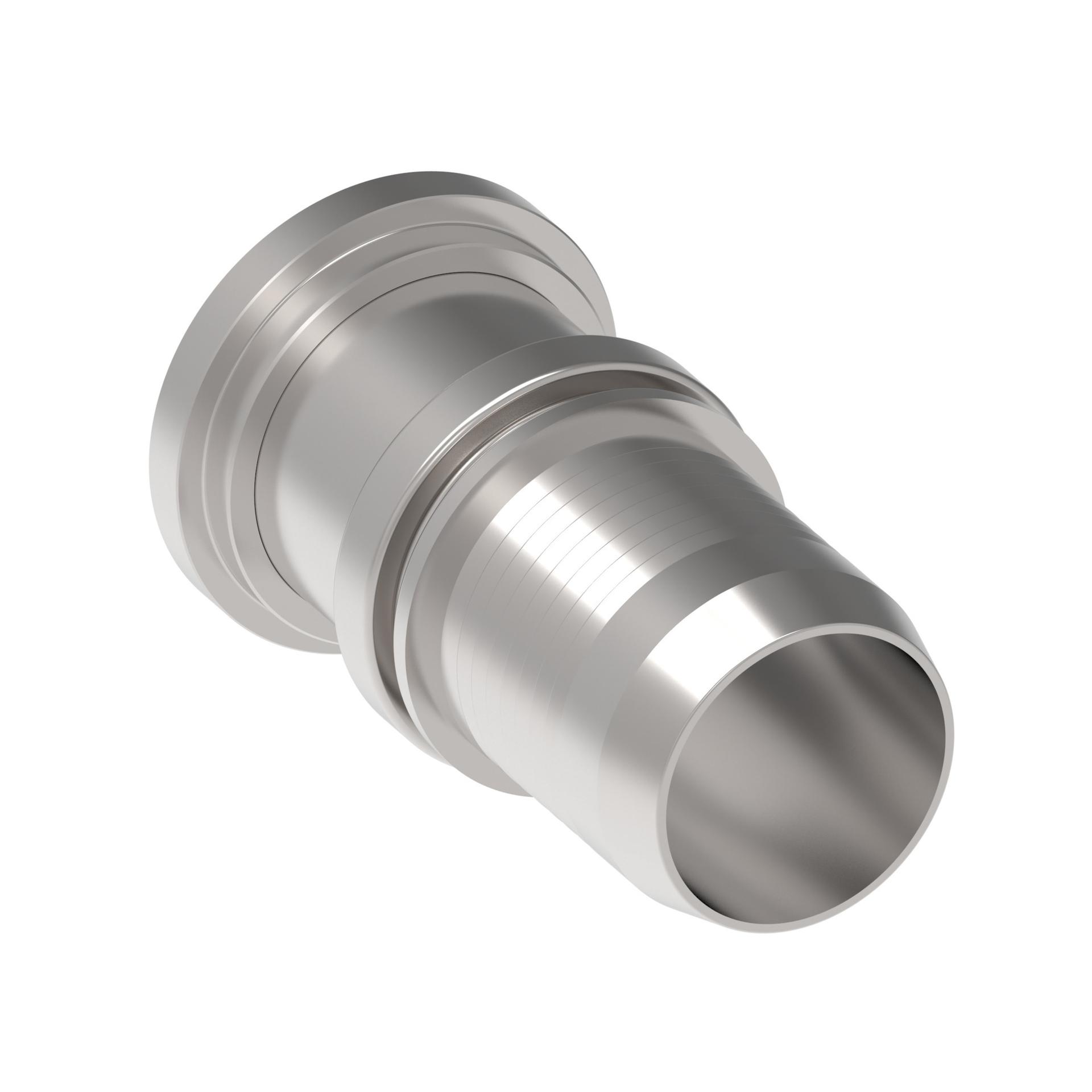

Hose Fittings FC8153-S [RIGHT]

HOSE NIPPLE ASSY, FC/40, C61/40, CS, STR

FC8153-4040S

Tools

Product specifications

Characteristic
Value
A dimension IN5.470
A dimension MM138.900
Angle shapeStraight
BrandAeroquip by Danfoss
Compatible hose ID IN2.500
Construction StyleCrimp
End size 1-40
End type 1Split flange code 61
Finish platingDura-Kote
Hose cut off factor IN2.760
Hose cut off factor MM70.100
Inside diameter IN2.100
Inside diameter MM53.300
Product height in3.312
Product height mm84.124
Product length in5.469
Product length mm138.913
Product materialCarbon steel
Product width in3.312
Product width mm84.124

General specifications

Characteristic
Value
EAN/UPC678146145949
