Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 3.255 |
| A dimension MM | 82.700 |
| Angle shape | Straight |
| Brand | Aeroquip by Danfoss |

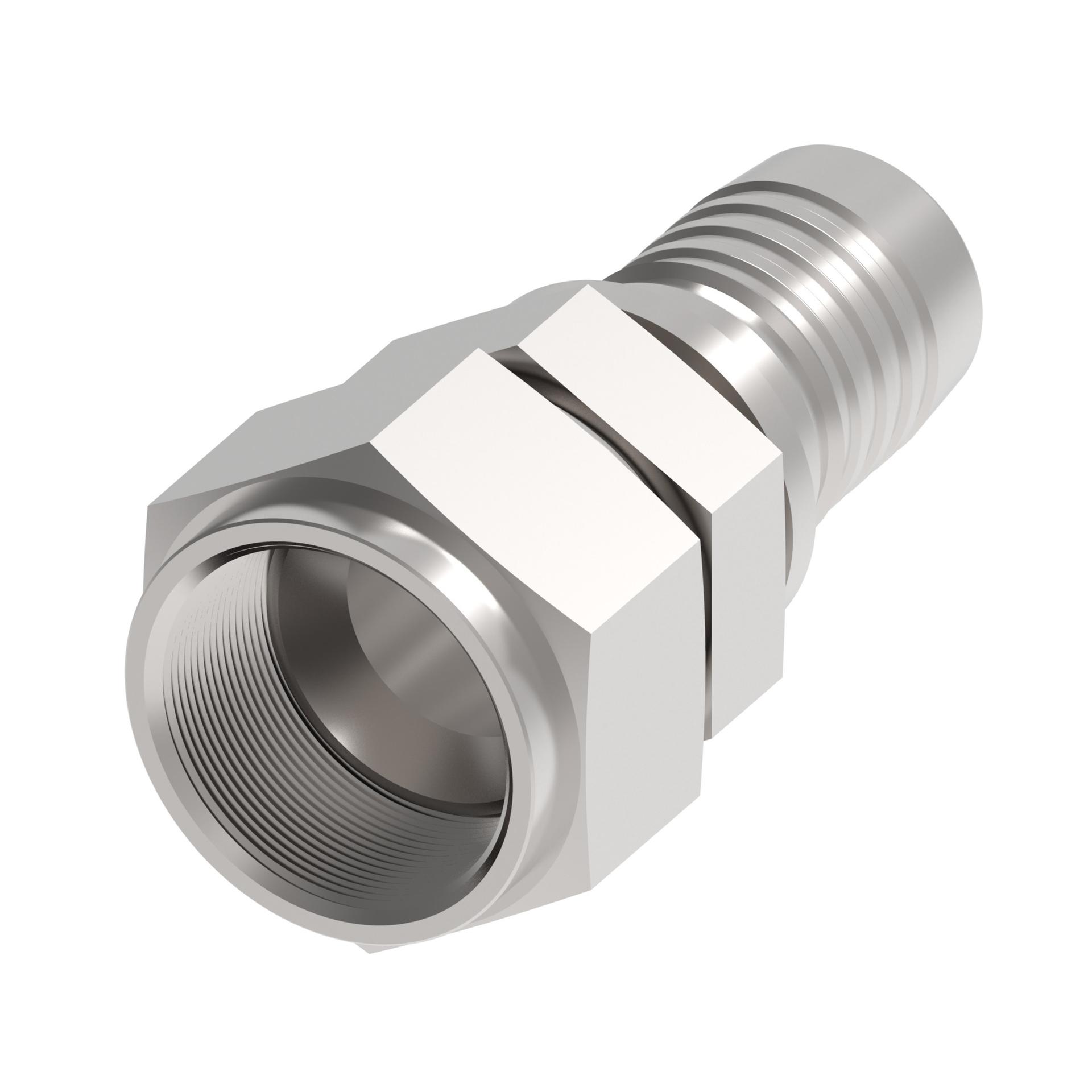

| Catalog Item | GL24346-24-24 |
| Compatible hose ID IN | 1.500 |
| Construction Style | Crimp |
| End size 1 | -24 |
| End type 1 | Female 37 degree swivel |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 2.362 |
| Hex size 1 MM | 60.000 |
| Hose cut off factor IN | 1.433 |
| Hose cut off factor MM | 36.400 |
| Inside diameter IN | 1.259 |
| Inside diameter MM | 32.000 |
| Product height in | 2.720 |
| Product height mm | 69.088 |
| Product length in | 3.910 |
| Product length mm | 99.314 |
| Product material | Carbon steel |
| Product width in | 2.360 |
| Product width mm | 59.944 |
| Thread size 1 | 1 7/8-12 UN |
