Product specifications
Characteristic | Value |
---|---|
Abrasion resistance | Standard |
Bend radius min (inch) | 3.000 |
Bend radius min (mm) | 76.200 |
Brand | Aeroquip by Danfoss |
Burst pressure (bar) | 1380 |
Burst pressure (psi) | 20010 |
Color | Blue |
Conditional temp range | -40F to 200F phosphate-ester |
Conductivity | Conductive |
Construction | 1 Wire Braid |
Cover material | Chlorinated Polyethylene (CPE) |
Impulse cycle (cycles) | 200000 |
Inside diameter (inch) | 0.25 |
Inside diameter (mm) | 6.40 |
Lay line style | Ink transfer |
Outside diameter (inch) | 0.57 |
Outside diameter (mm) | 14.50 |
Package form | Bulk |
Qualified hose fittings | TTC/Z Series |
Reinforcement material | Brass plated steel wire |

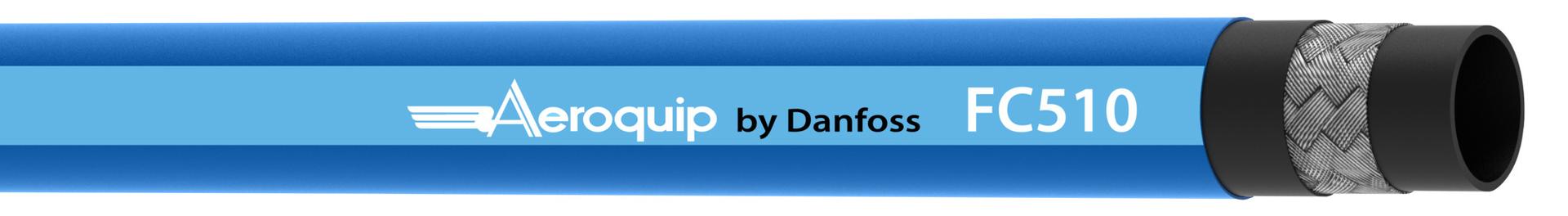

Series | FC510 Series |
Size | -4 |
Tube material | Chlorinated Polyethylene (CPE) |
Working pressure max (bar) | 345 |
Working pressure max (psi) | 5000 |
Working temperature max (C) | 149 |
Working temperature max (F) | 300.0 |
Working temperature min (C) | -40 |
Working temperature min (F) | -40.0 |
General specifications
Characteristic | Value |
---|---|
EAN/UPC | 678146080721 |
Proposition 65 | Cancer and Reproductive Harm |
