Product specifications
Characteristic | Value |
|---|---|
| Abrasion resistance | Standard |
| Application | Hydraulic systemsOil systems |
| Bend radius min (inch) | 8.250 |
| Bend radius min (mm) | 209.550 |
| Brand | Aeroquip by Danfoss |
| Burst pressure (bar) | 636 |
| Burst pressure (psi) | 9225 |
| Certifications | MSHA Approved |
| Color | Black |
| Compliances | EN853 2SNEN853 2STEN857 2SCSAE 100R16SAE 100R19SAE 100R2ASAE 100R2AT |
| Conductivity | Conductive |
| Construction | 2 Ply braid |
| Cover material | Nitrile (NBR) |
| Impulse cycle (cycles) | 400000 |
| Inside diameter (inch) | 1.25 |
| Inside diameter (mm) | 31.75 |
| Lay line style | Ink transfer |
| Outside diameter (inch) | 1.74 |
| Outside diameter (mm) | 44.20 |
| Package form | Cut length |
| Qualified hose fittings | 1A/Z SeriesGlobal skive |
| Reinforcement material | Brass plated steel wire |

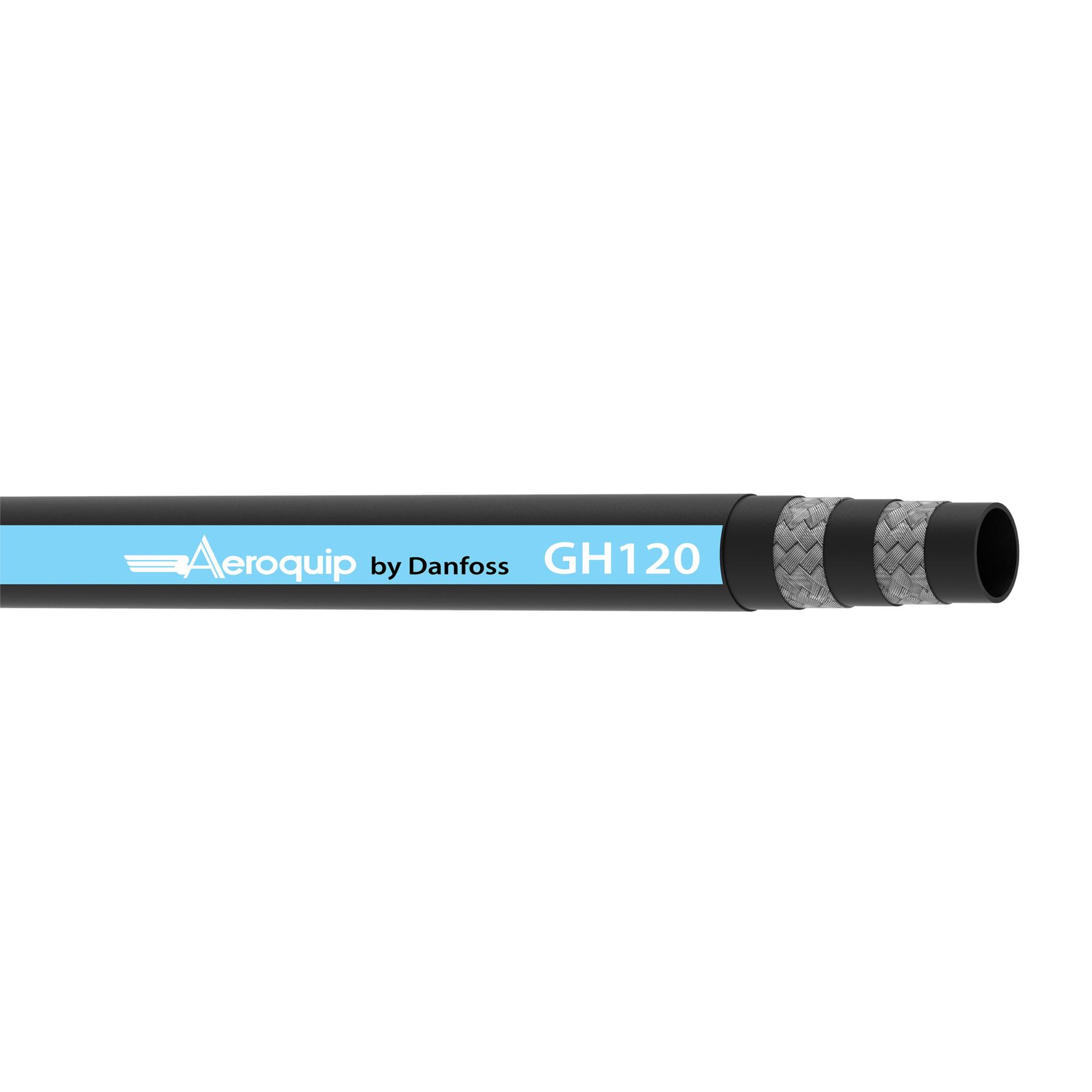

| Series | GH120 Series |
| Size | -20 |
| Working pressure max (bar) | 159 |
| Working pressure max (psi) | 2300 |
| Working temperature max (C) | 100 |
| Working temperature max (F) | 212.0 |
| Working temperature min (C) | -57 |
| Working temperature min (F) | -70.0 |
General specifications
Characteristic | Value |
|---|---|
| EAN | 678146078551 |
