Product specifications
Characteristic | Value |
|---|---|
| Abrasion resistance | Standard |
| Bend radius min (inch) | 2.360 |
| Bend radius min (mm) | 59.940 |
| Brand | Danfoss |
| Burst pressure (bar) | 255 |
| Burst pressure (psi) | 3700 |
| Certifications | EN45545-2EN854 Type 2TE |
| Color | Black |
| Construction | 1 Textile Braid |
| Cover material | EthyleneVinylAcetat(EVA Blend) |
| Impulse cycle (cycles) | 100000 |
| Inside diameter (inch) | 0.37 |
| Inside diameter (mm) | 9.50 |
| Lay line style | Ink transfer |
| Outside diameter (inch) | 0.68 |
| Outside diameter (mm) | 17.27 |
| Reinforcement material | Fabric |

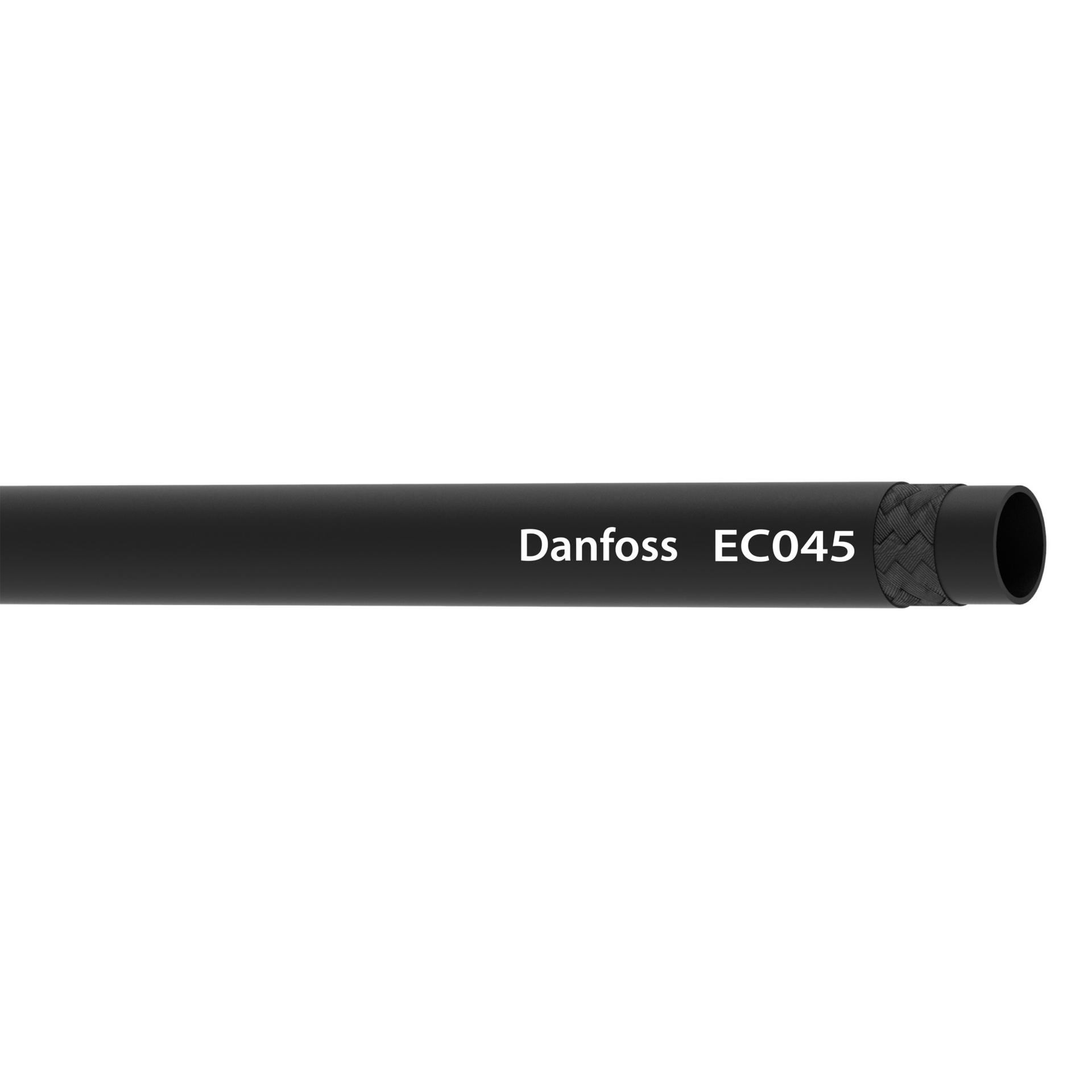

| Series | EC045 Series |
| Size | -6 |
| Tube material | Nitrile (NBR) |
| Working pressure max (bar) | 64 |
| Working pressure max (psi) | 925 |
| Working temperature max (C) | 125 |
| Working temperature max (F) | 257.0 |
| Working temperature min (C) | -40 |
| Working temperature min (F) | -40.0 |
General specifications
Characteristic | Value |
|---|---|
| Proposition 65 | Cancer and Reproductive Harm |
