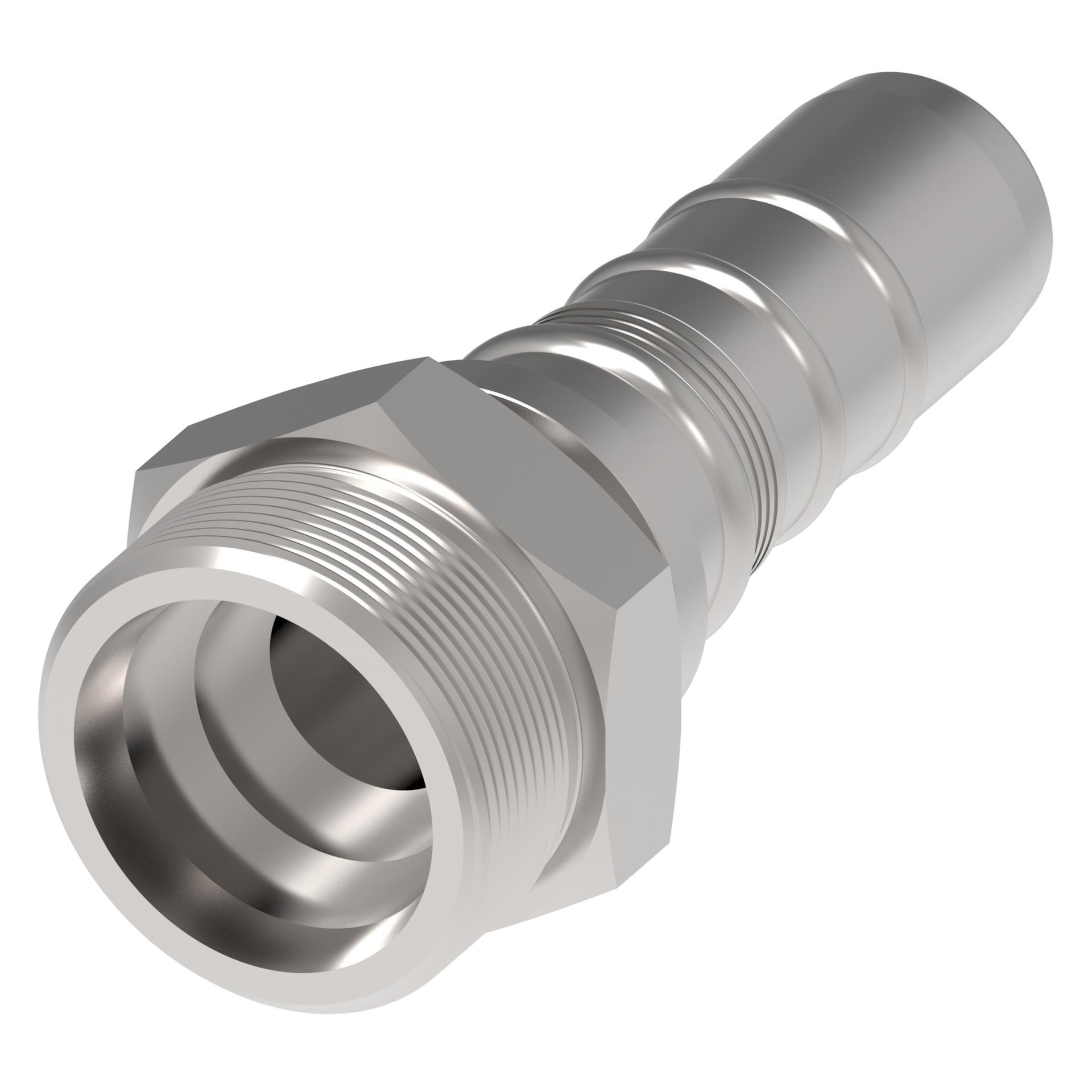

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 5.270 |
| A dimension MM | 134.000 |
| Angle shape | Straight |
| Application | General industrial useHydraulic systemsPetroleum based fluidsWater based fluids |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.250 |
| Compatible hose ID MM | 31.800 |
| Construction Style | Crimp |
| End connection torque | 245-258 lb-ft(334-352 Nm) |
| End Type 1 | 24 deg. tube port heavy duty |
| End Type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hex size 1 IN | 2.165 |
| Hex size 1 MM | 55.000 |
| Hose cut off factor IN | 2.070 |
| Hose cut off factor MM | 52.800 |
| Hose size | -20 |
| Inside diameter IN | 0.940 |
| Inside diameter MM | 24.000 |
| Product height in | 2.500 |
| Product height mm | 63.500 |
| Product length in | 5.276 |
| Product length mm | 134.000 |
| Product material | Carbon steel |
| Product width in | 2.165 |
| Product width mm | 55.000 |
| Series | Winner 2-Piece |
| Thread size 1 | M52x2 |
