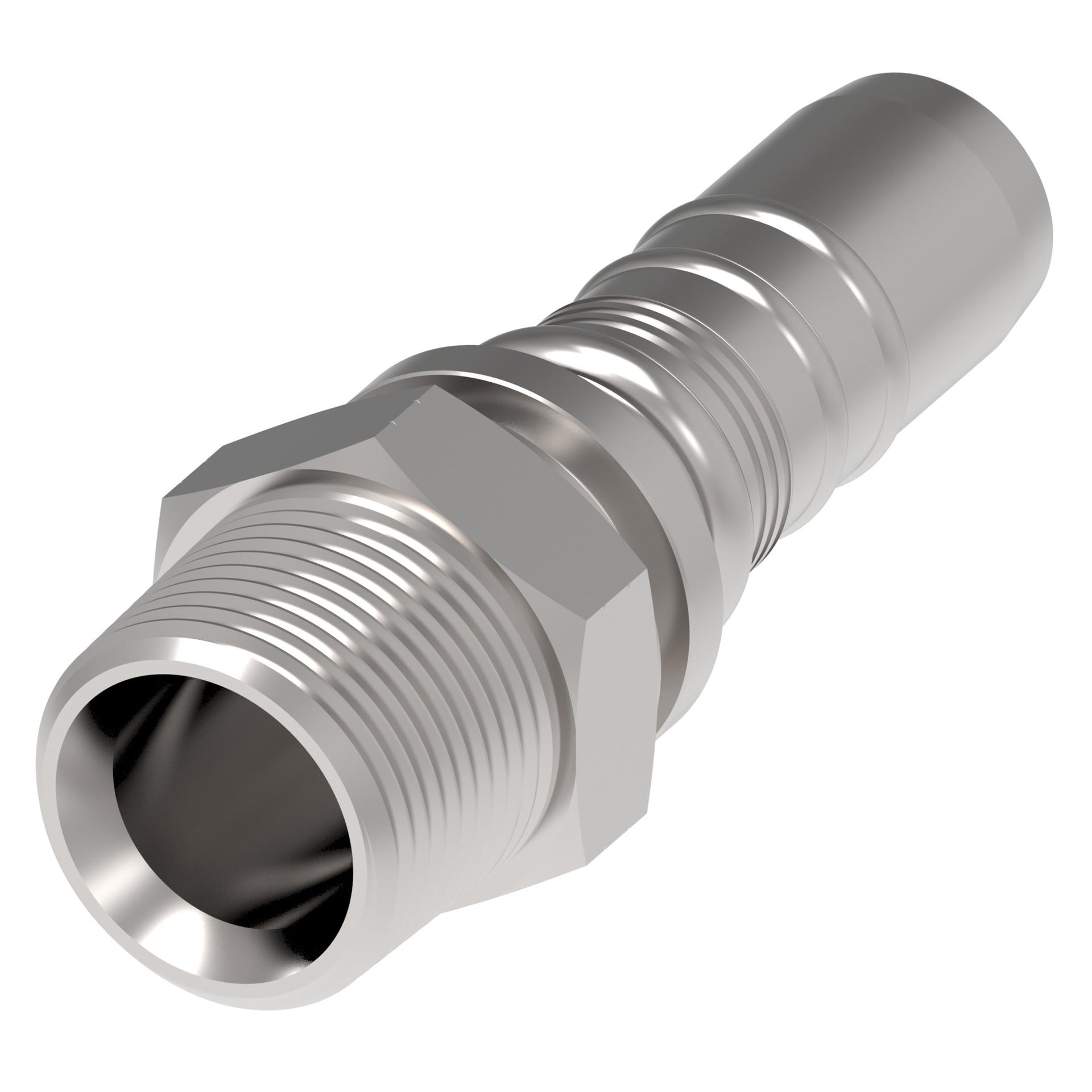

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 4.350 |
| A dimension MM | 110.500 |
| Angle shape | Straight |
| Application | General industrial useHydraulic systemsPetroleum based fluidsWater based fluids |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.000 |
| Compatible hose ID MM | 25.400 |
| Construction Style | Crimp |
| End size 1 | -16 |
| End size 2 | -16 |
| End type 1 | Male pipe (NPTF) |
| End type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.496 |
| Hex size 1 MM | 38.000 |
| Hose cut off factor IN | 1.880 |
| Hose cut off factor MM | 47.900 |
| Hose size | -16 |
| Inside diameter IN | 0.740 |
| Inside diameter MM | 19.000 |
| Product height in | 1.724 |
| Product height mm | 43.800 |
| Product length in | 4.350 |
| Product length mm | 110.500 |
| Product material | Carbon steel |
| Product width in | 1.496 |
| Product width mm | 38 |
| Series | Winner 2-Piece |
| Thread sealant | No |
