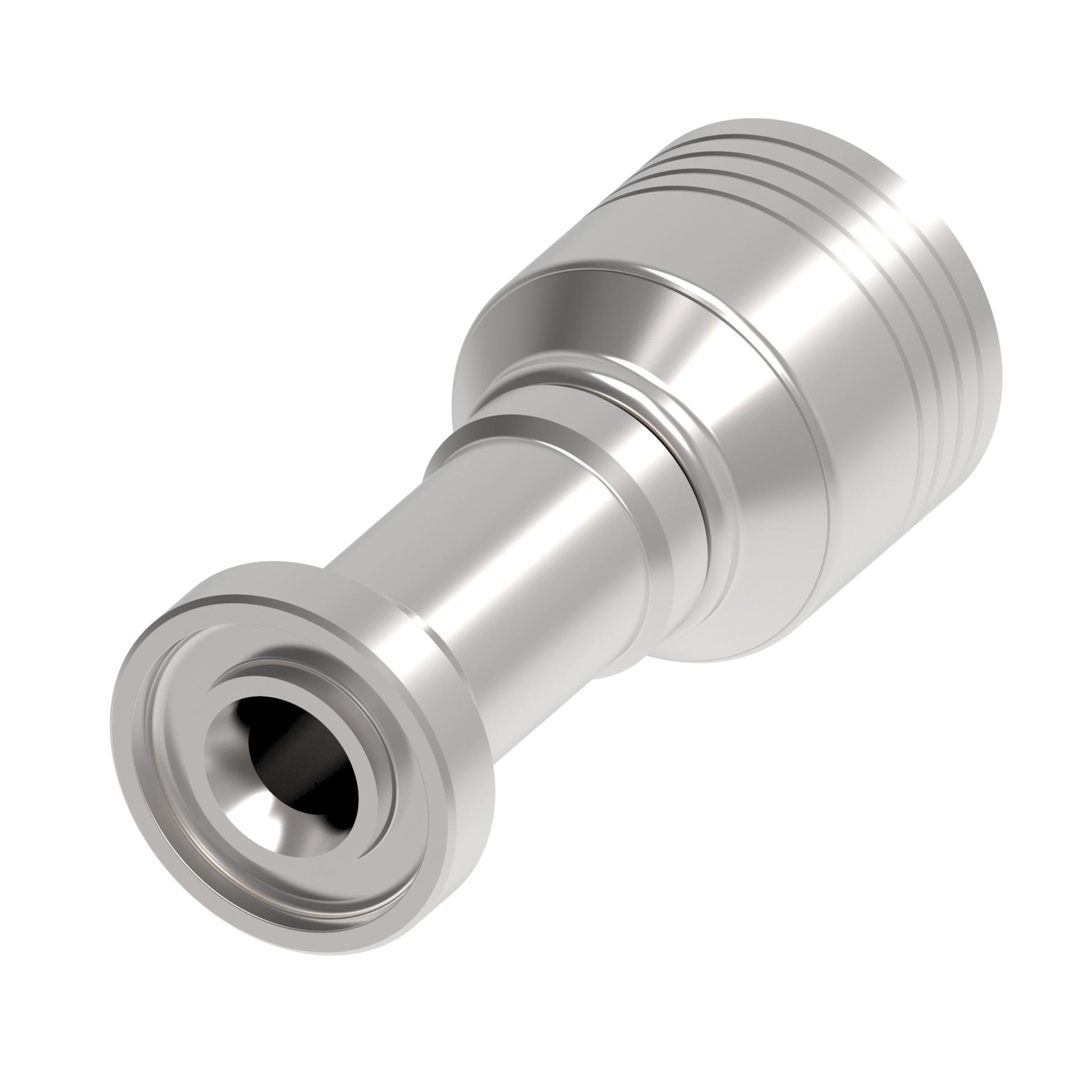

Hose Fittings 1B8FL8 [RIGHT]

FTG TTC12 C61 USE 4S12FL8 WHEN NIL STOCK

1B12FL8

Tools

Product specifications

Characteristic
Value
A dimension IN3.269
A dimension MM83.040
Angle shapeStraight
BrandAeroquip by Danfoss
Catalog Item1B12FL8
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible hoses2661 (Size dependent)FC136FC318 (Size dependent) FC616FC636 FC659 FC736 GH493
Compatible tube OD IN0.75
Compatible tube OD MM19.050
Construction StyleCrimp
End connection torque50-60 lb-ft(68-78 Nm)
End size 1-12
End type 1Split flange code 61
Finish platingDura-Kote
Hose cut off factor IN2.100
Hose cut off factor MM53.340
Hose size-8
Inside diameter IN0.382
Inside diameter MM9.703
Product height in1.335
Product height mm33.909
Product length in3.173
Product length mm80.594
Product materialCarbon steel
Product width in1.335
Product width mm33.909
Series1A/Z Series
Thread sealantNo
Tube OD 1 IN0.750
Tube OD 1 MM19.050

General specifications

Characteristic
Value
EAN/UPC678146128706
