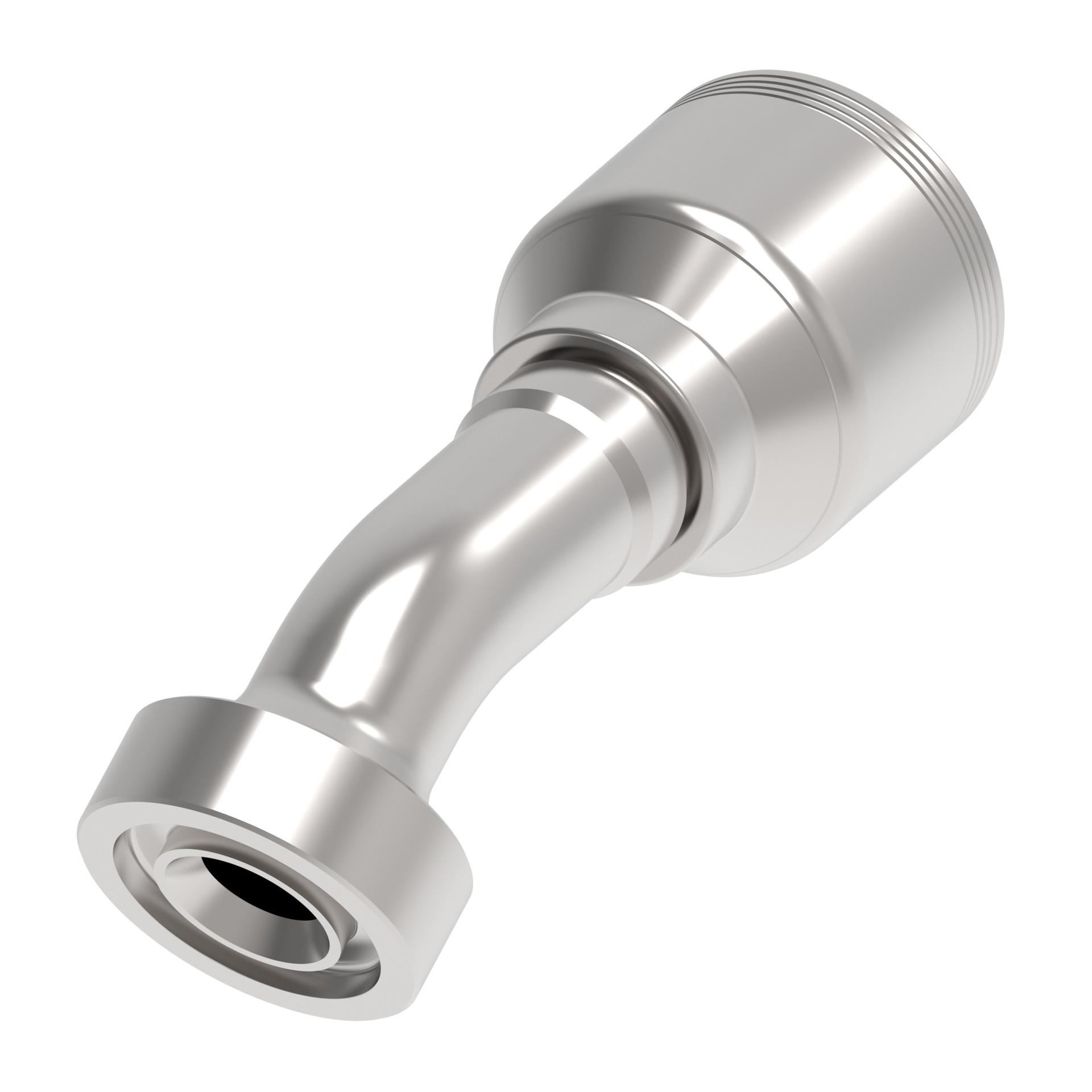

Hose Fittings 4S12CTF12 (RIGHT)

FTG TTC4S CAT 30 USE 4S1 2CTF123

1E12CTF12

Recommended replacement: 4S12CTF12


Tools

Product specifications

Characteristic
Value
A dimension IN4.890
A dimension MM124.200
Angle shape30 Degree
BrandAeroquip by Danfoss
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Compatible hosesFC273FC273BFC500GH466GH810FC254FC606GH506
Construction StyleCrimp
Drop dimension IN0.750
Drop dimension MM19.1
End Type 1Caterpillar flange
End size 1-12
Finish platingDura-Kote
Hex size 1 IN0.000
Hex size 1 MM0.0
Hex size 2 IN0.000
Hose cut off factor IN3.460
Hose cut off factor MM88.000
Hose size-12
Inside diameter IN0.560
Inside diameter MM14.200
Product height in1.830
Product height mm46.482
Product length in5.400
Product length mm137.160
Product materialCarbon steel
Product width in1.830
Product width mm46.482 mm
Seal materialEthylene propylene (EPDM)
Series1A/Z Series
Thread sealantNo
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN/UPC678146131577
