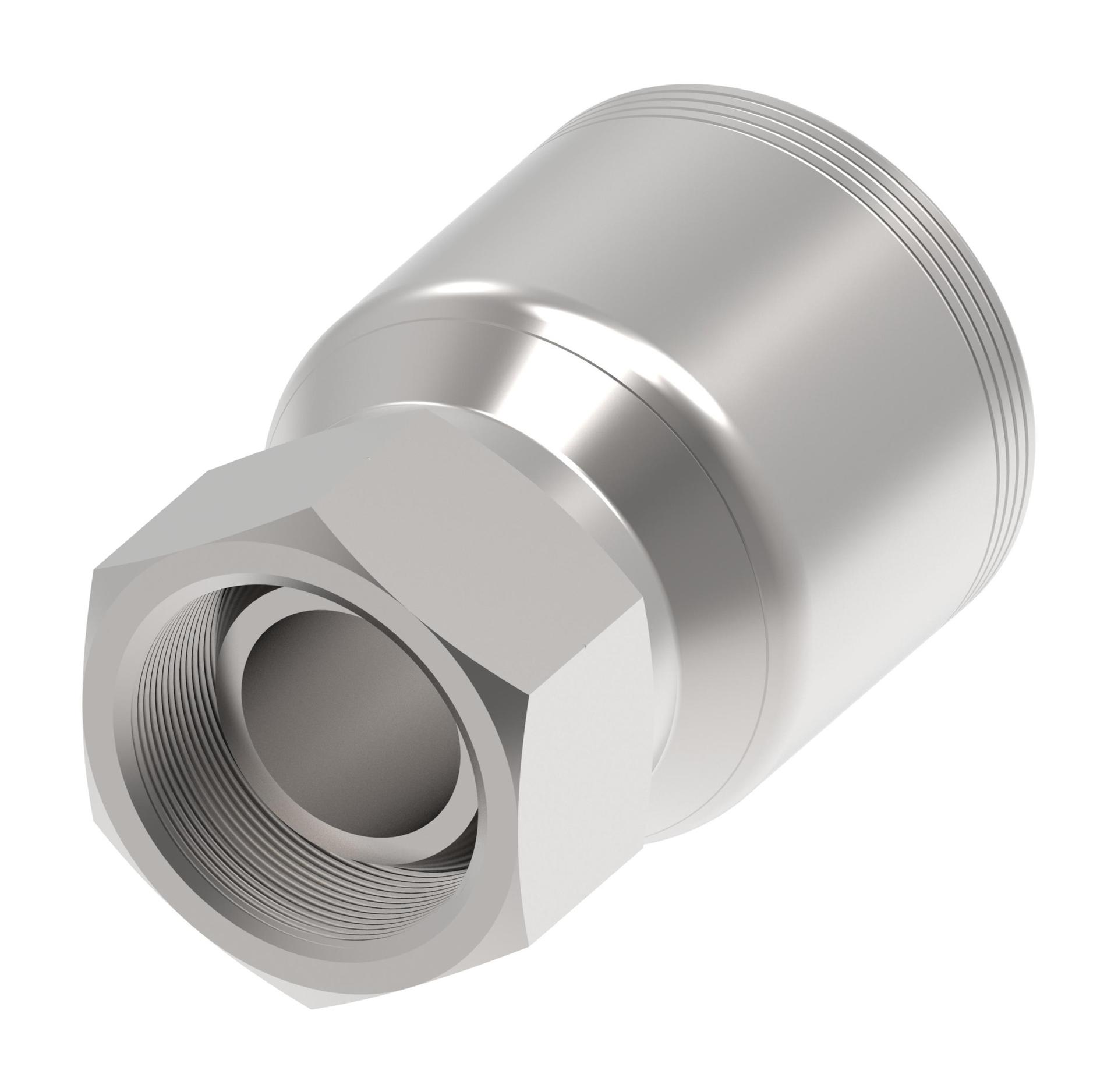

Danfoss 4S Series Crimp Hose Fittings Female BSPP Swivel 60 Cone 4SXXBF20 (RIGHT)

FTG TTC4S BSPF USE 4S16B F12

1E16BF12

Recommended replacement: 4S16BF12


Tools

Product specifications

Characteristic
Value
A dimension IN2.700
A dimension MM68.700
Angle shapeStraight
BrandAeroquip by Danfoss
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Compatible hosesFC273FC273BFC500GH810FC254GH506
Construction StyleCrimp
End size 1-16
End type 1Female BSPP swivel
Finish platingDura-Kote
Hex size 1 IN1.614
Hex size 1 MM40.996
Hose cut off factor IN1.270
Hose cut off factor MM32.300
Hose size-12
Inside diameter IN0.560
Inside diameter MM14.200
Product height in1.834
Product height mm46.586
Product length in3.220
Product length mm81.788
Product materialCarbon steel
Product width in1.834
Product width mm46.583 mm
Seal materialEthylene propylene (EPDM)
Series1A/Z Series
Thread sealantNo
Thread size 1G 1
Working pressure max bar280
Working pressure max psi4050
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN/UPC678146131645
