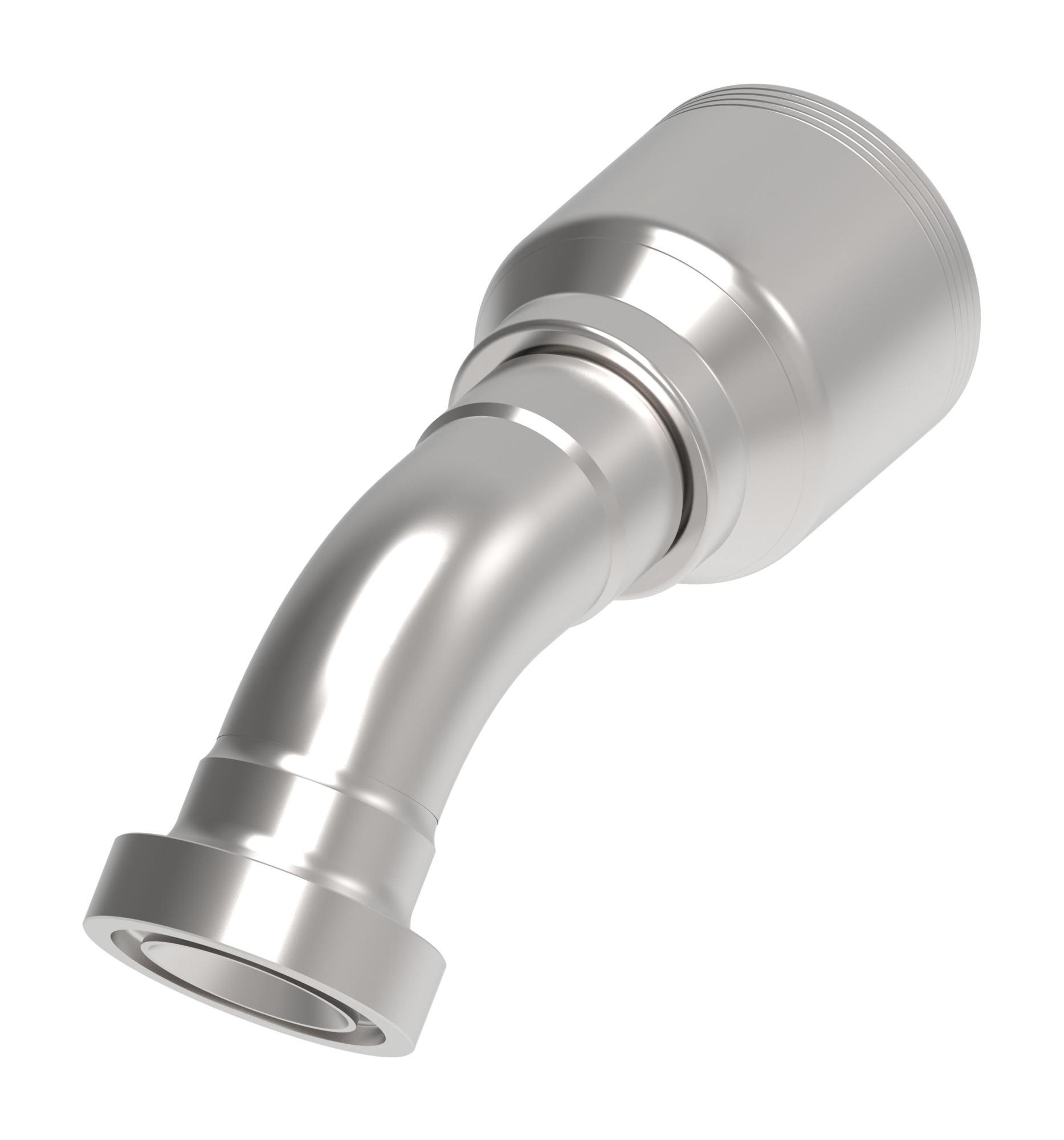

Danfoss 4S Series Crimp Hose Fittings CAT Flange 45 Elbow 4SXXCTA20 (RIGHT)

FTG TTC4S CAT 45 USE 4S2 0CTA16

1E20CTA16

Recommended replacement: 4S20CTA16


Tools

Product specifications

Characteristic
Value
A dimension IN6.020
A dimension MM153.000
Angle shape45 Degree
BrandAeroquip by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Compatible hosesFC254
Construction StyleCrimp
Drop dimension IN1.650
Drop dimension MM41.80
End size 1-20
End type 1Caterpillar flange
Finish platingDura-Kote
Hose cut off factor IN4.460
Hose cut off factor MM113.200
Hose size-16
Inside diameter IN0.760
Inside diameter MM19.200
Product height in1.650
Product height mm41.910
Product length in7.090
Product length mm180.086
Product materialCarbon steel
Product width in2.126
Product width mm54.000 mm
Seal materialEthylene propylene (EPDM)
Series1A/Z Series
Thread sealantNo
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN/UPC678146131966
