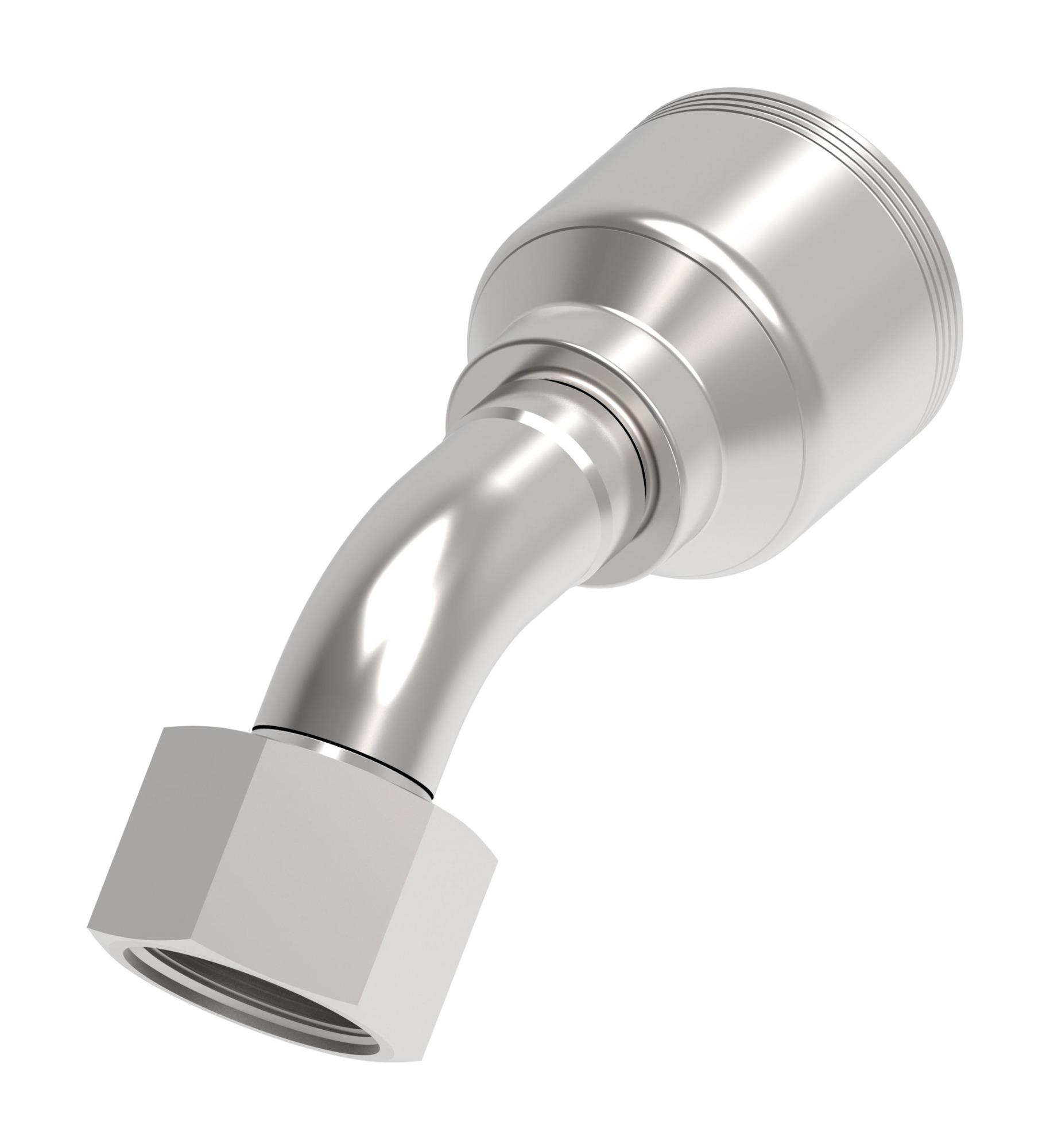

Danfoss 4S Series Crimp Hose Fittings Female ORS Swivel 45 Elbow 4SAXXFRA12 (RIGHT)

FTG TTC4S ORSF 45 USE 4S A16FRA6 NO STK

1EA16FRA16

Recommended replacement: 4SA16FRA16


Tools

Product specifications

Characteristic
Value
A dimension IN4.440
A dimension MM112.800
Angle shape45 Degree
BrandAeroquip by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Compatible hosesFC273FC273BFC500GH810FC254GH506
Compatible tube OD IN1.00
Compatible tube OD MM25.400
Construction StyleCrimp
Drop dimension IN1.100
Drop dimension MM28.00
End connection torque92-100 lb-ft(125-136 Nm)
End size 1-16
End size 2-16
End type 1Female ORFS swivel
Finish platingDura-Kote
Hex size 1 IN1.625
Hex size 1 MM41.275
Hose cut off factor IN2.870
Hose cut off factor MM73.000
Hose size-16
Inside diameter IN0.760
Inside diameter MM19.200
Product height in1.100
Product height mm27.940
Product length in6.040
Product length mm153.416
Product materialCarbon steel
Product width in2.126
Product width mm54.000 mm
Seal materialEthylene propylene (EPDM)
Series1A/Z Series
Thread sealantNo
Thread size 11 7/16-12 UN
Tube OD 1 IN1.000
Tube OD 1 MM25.400
Working pressure max bar414
Working pressure max psi6000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN/UPC678146132581
