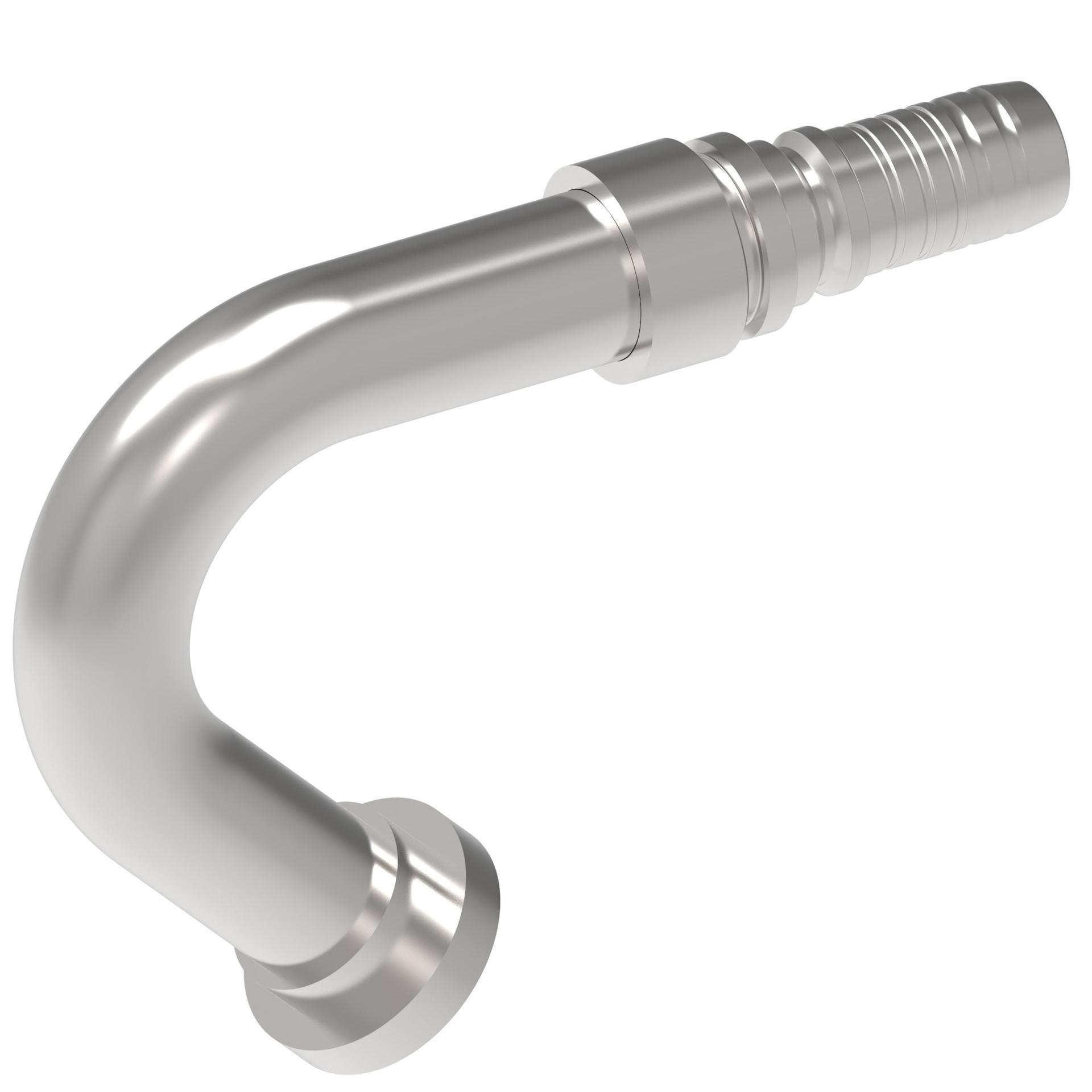

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 6.460 |
| A dimension MM | 164.200 |
| Angle shape | 135 Degree |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 1.000 |
| Compatible hose ID MM | 25.400 |
| Construction Style | Crimp |
| Drop dimension IN | 5.120 |
| Drop dimension MM | 130.00 |
| End size 1 | -20 |
| End type 1 | Split flange code 62 |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 3.000 |
| Hose cut off factor MM | 76.200 |
| Hose size | -16 |
| Inside diameter IN | 0.790 |
| Inside diameter MM | 20.000 |
| Product height in | 6.700 |
| Product height mm | 170.180 |
| Product length in | 8.800 |
| Product length mm | 223.520 |
| Product material | Carbon steel |
| Product width in | 2.130 |
| Product width mm | 54.102 |
| SERIES | 1A/Z Series |
| Thread sealant | No |
| Working pressure max bar | 414.00 |
| Working pressure max psi | 6000.00 |
