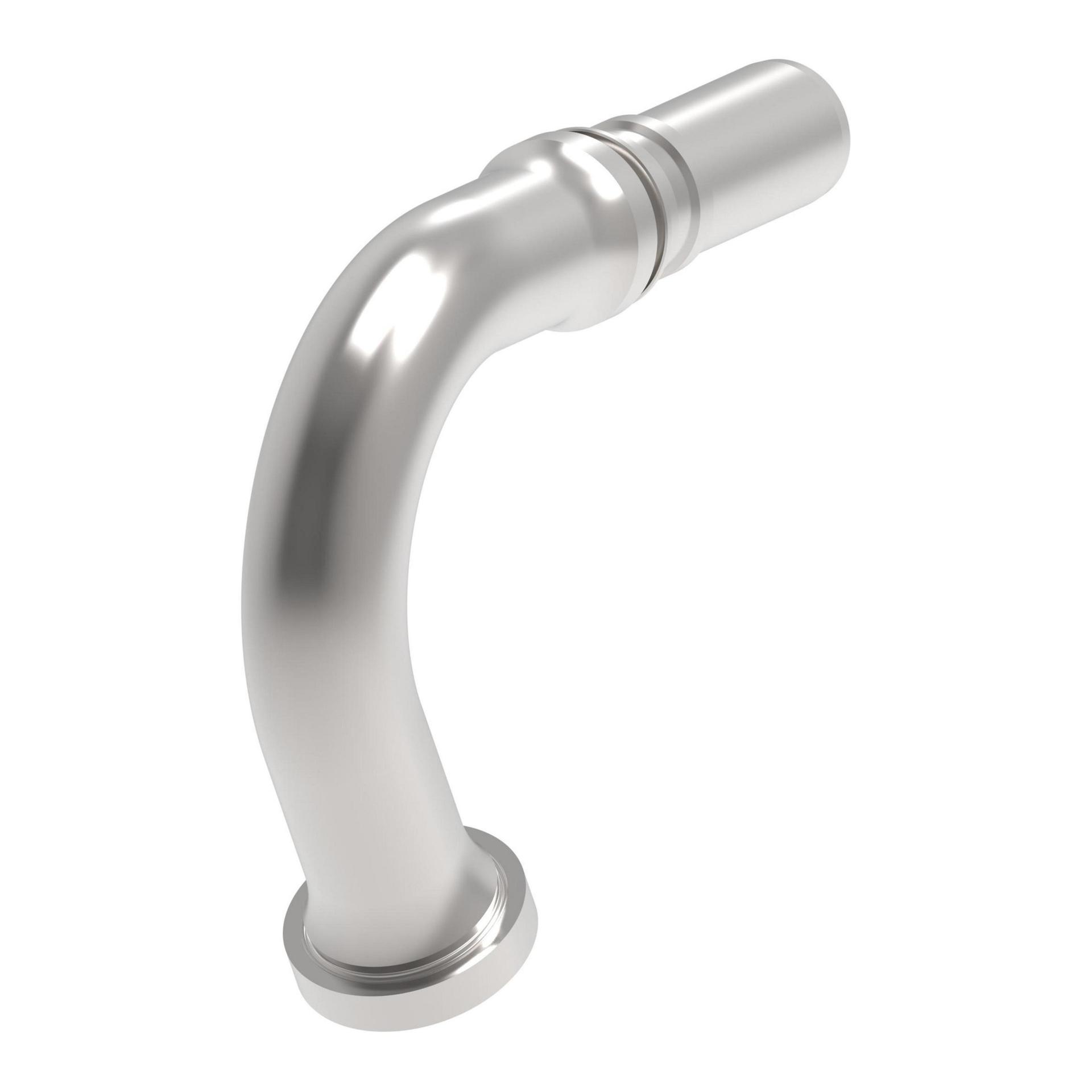

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 7.360 |
| A dimension MM | 187.100 |
| Angle shape | 120 Degree |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 1.500 |
| Compatible hose ID MM | 38.100 |
| Construction Style | Crimp |
| Drop dimension IN | 6.690 |
| Drop dimension MM | 170.00 |
| End size 1 | -24 |
| End type 1 | Split flange code 62 |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 0.000 |
| Hex size 1 MM | 0.000 |
| Hex size 2 IN | 0.000 |
| Hose cut off factor IN | 3.480 |
| Hose cut off factor MM | 88.600 |
| Hose size | -24 |
| Inside diameter IN | 1.180 |
| Inside diameter MM | 30.000 |
| Product height in | 8.614 |
| Product height mm | 218.801 |
| Product length in | 7.366 |
| Product length mm | 187.099 |
| Product material | Carbon steel |
| Product width in | 2.500 |
| Product width mm | 63.500 |
| Series | 1A/Z Series |
