Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 3.530 |
| A dimension MM | 89.800 |
| Angle shape | Straight |
| Brand | Aeroquip by Danfoss |

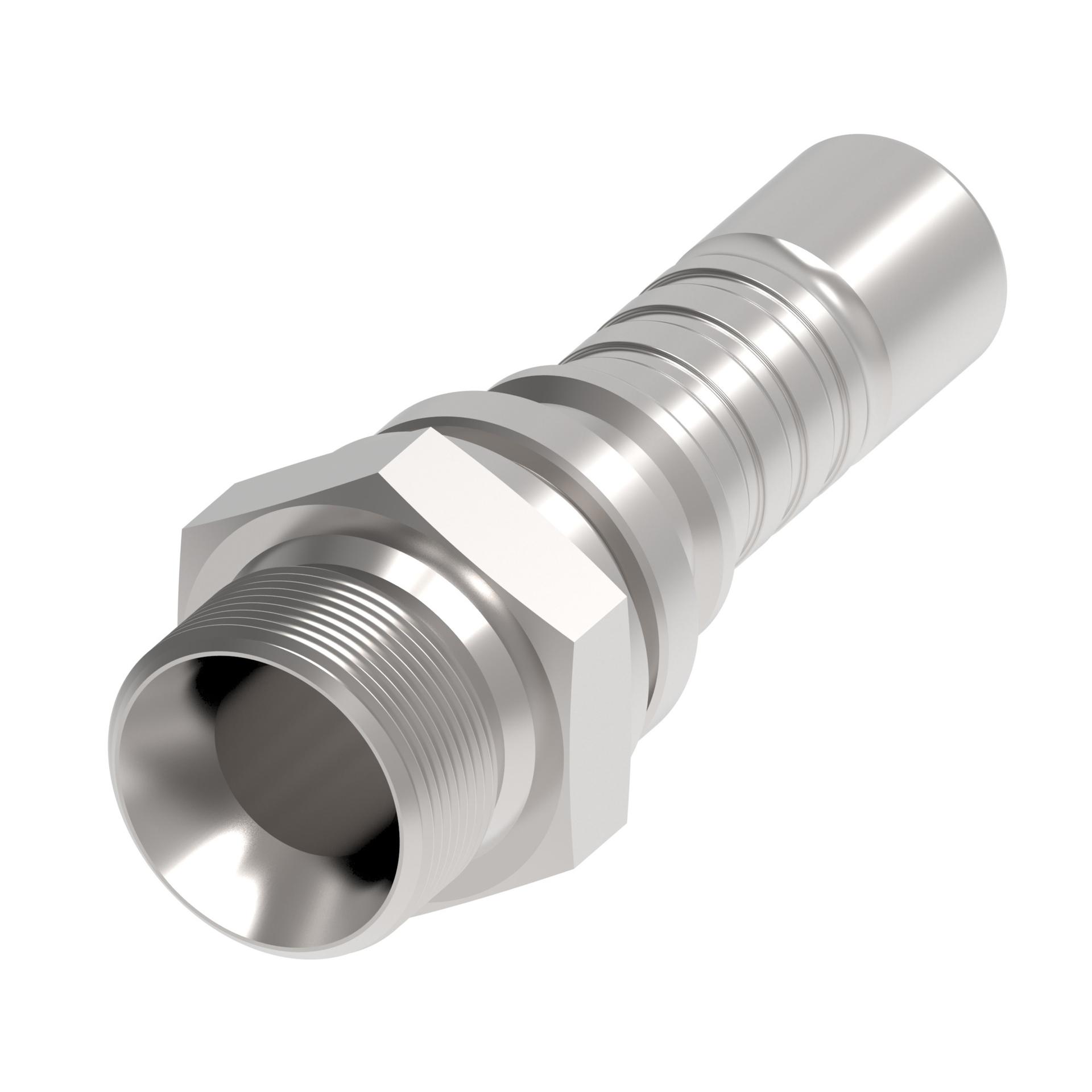

| Catalog Item | 1W12BP12 |
| Compatible hose ID IN | 0.750 |
| Compatible hose ID MM | 19.000 |
| Construction Style | Crimp |
| End connection torque | 103-118 lb-ft(140-160 Nm) |
| End size 1 | -12 |
| End type 1 | Male BSPP 60 degree cone |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 1.259 |
| Hex size 1 MM | 32.000 |
| Hose cut off factor IN | 1.110 |
| Hose cut off factor MM | 28.400 |
| Hose size | -12 |
| Inside diameter IN | 0.598 |
| Inside diameter MM | 15.200 |
| Product height in | 1.454 |
| Product height mm | 36.950 |
| Product length in | 3.535 |
| Product length mm | 89.800 |
| Product material | Carbon steel |
| Product width in | 1.454 |
| Product width mm | 36.950 |
| Series | 1W |
| Thread size 1 | G 3/4 |
