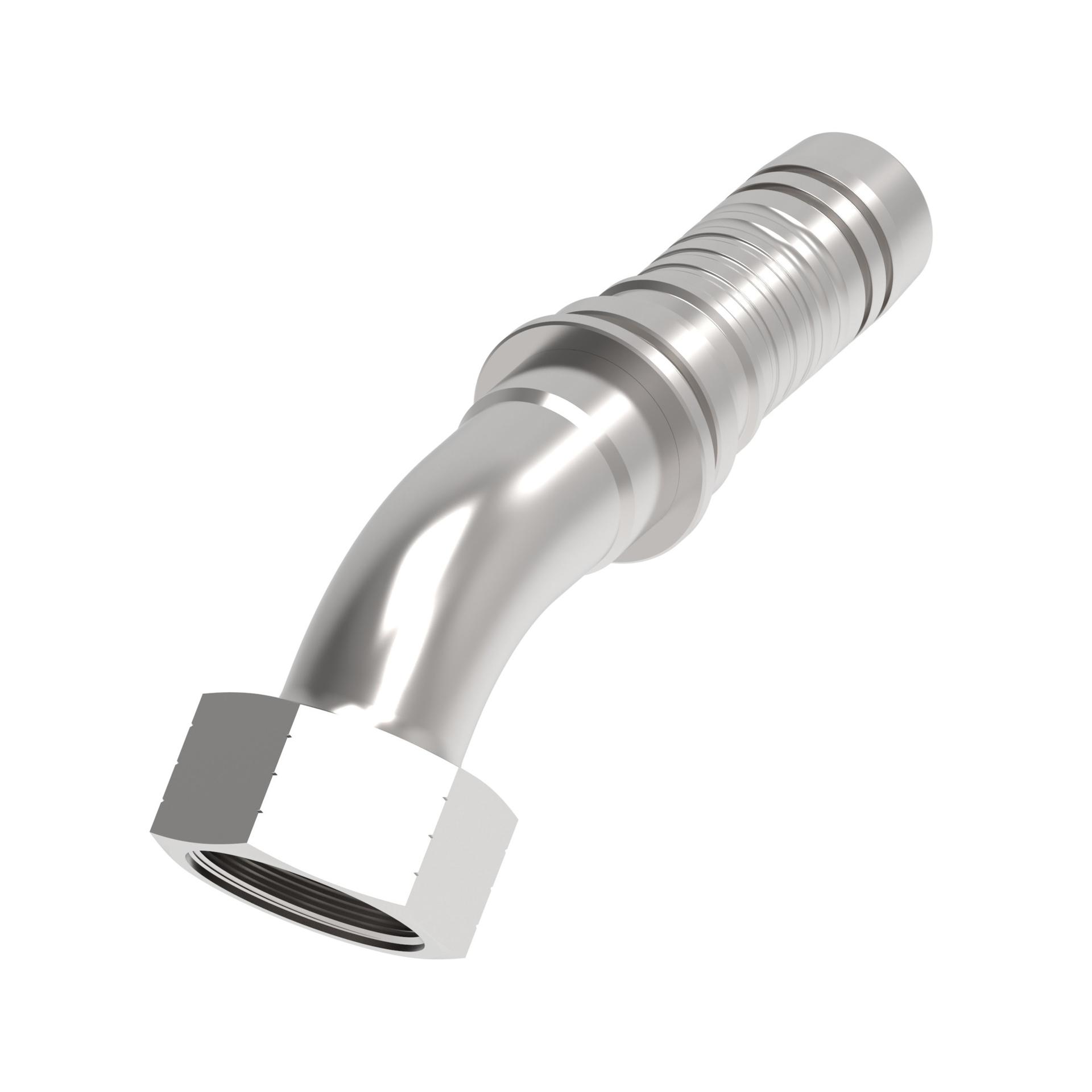

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 6.950 |
| A dimension MM | 176.600 |
| Angle shape | 45 Degree |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 1.250 |
| Compatible hose ID MM | 31.750 |
| Construction Style | Crimp |
| Drop dimension IN | 1.220 |
| Drop dimension MM | 31.00 |
| End size 1 | -20 |
| End Type 1 | Female ORFS swivel |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 1.969 |
| Hex size 1 MM | 50.000 |
| Hose cut off factor IN | 4.000 |
| Hose cut off factor MM | 101.700 |
| Hose size | -20 |
| Inside diameter IN | 1.000 |
| Inside diameter MM | 25.500 |
| Product height in | 3.279 |
| Product height mm | 83.300 |
| Product length in | 8.527 |
| Product length mm | 216.600 |
| Product material | Carbon steel |
| Product width in | 2.272 |
| Product width mm | 57.730 |
| Thread size 1 | 1 11/16-12 UN |
