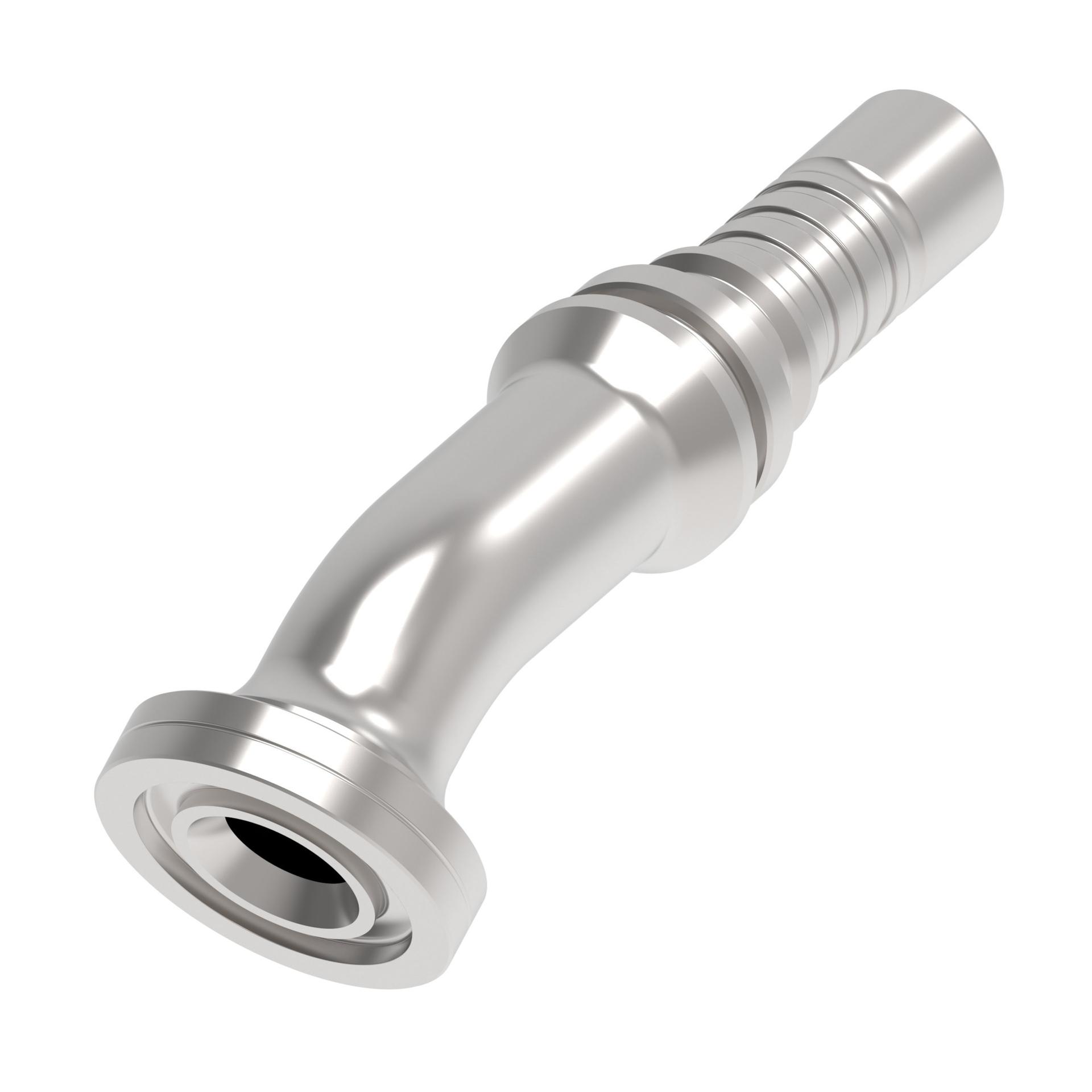

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 11.920 |
| A dimension MM | 302.700 |
| Angle shape | 30 Degree |
| Compatible hose ID IN | 2.000 |
| Compatible hose ID MM | 50.800 |
| Construction Style | Crimp |
| Drop dimension IN | 2.440 |
| Drop dimension MM | 62.00 |
| End size 1 | -32 |
| End type 1 | Split flange code 62 |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 7.650 |
| Hose cut off factor MM | 194.200 |
| Hose size | -32 |
| Inside diameter IN | 1.660 |
| Inside diameter MM | 42.100 |
| Product height in | 5.448 |
| Product height mm | 138.400 |
| Product length in | 13.480 |
| Product length mm | 342.400 |
| Product material | Carbon steel |
| Product width in | 3.126 |
| Product width mm | 79.400 mm |
| Thread sealant | No |
| Working pressure max bar | 414 |
| Working pressure max psi | 6000 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
