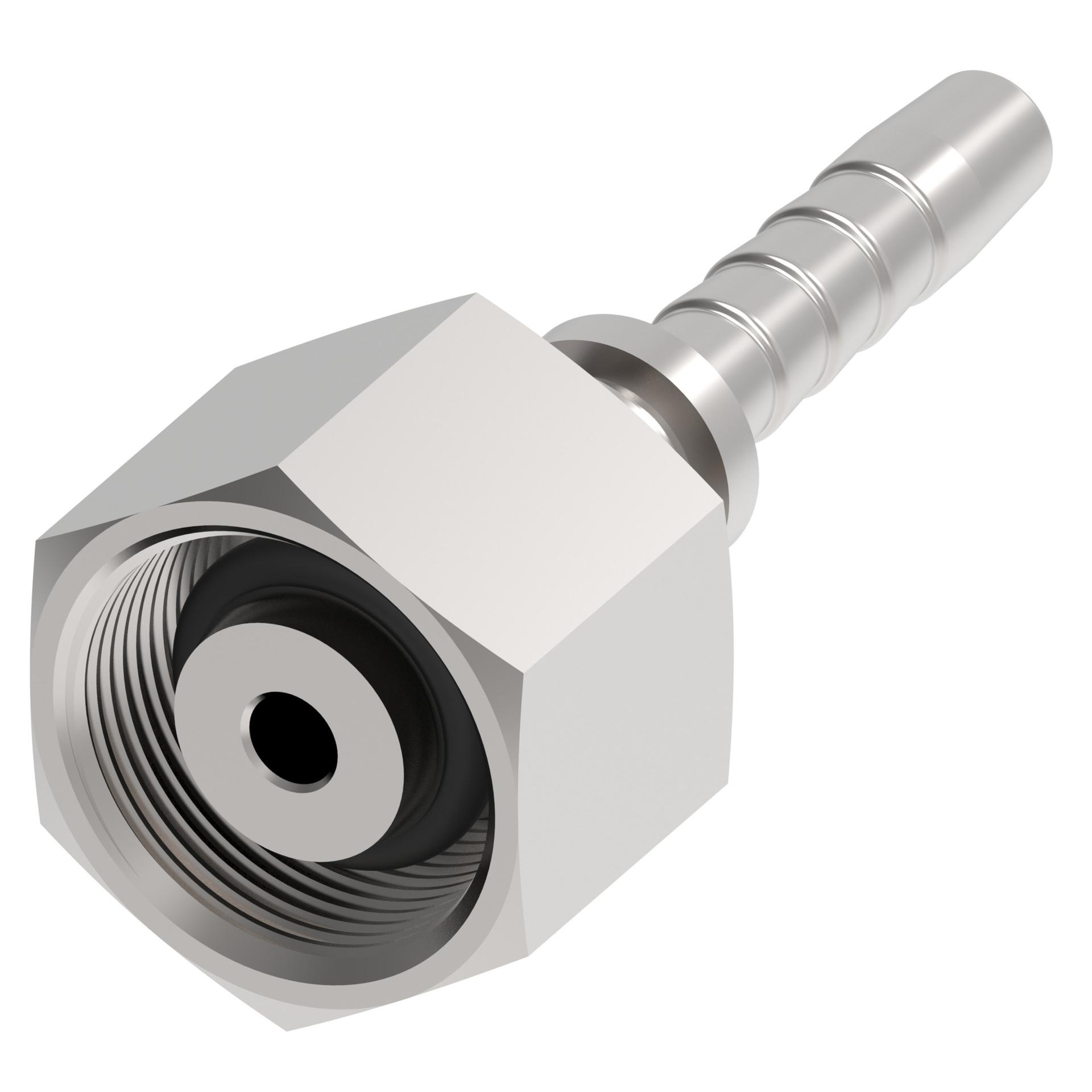

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 2.973 |
| A dimension MM | 75.500 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Catalog Item | 20412CF-36-12TZ |
| Compatible hose ID IN | 0.750 |
| Compatible hose ID MM | 19.000 |
| Construction Style | Crimp |
| End size 1 | -36 |
| End type 1 | 24 deg. tube port light duty |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.614 |
| Hex size 1 MM | 40.996 |
| Hex size 2 IN | 1.614 |
| Hex size 2 MM | 40.996 |
| Hose cut off factor IN | 1.800 |
| Hose cut off factor MM | 45.720 |
| Hose size | -12 |
| Inside diameter IN | 0.591 |
| Inside diameter MM | 15.011 |
| Product material | Carbon steel |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Thread size 1 | M36x1.5 |
