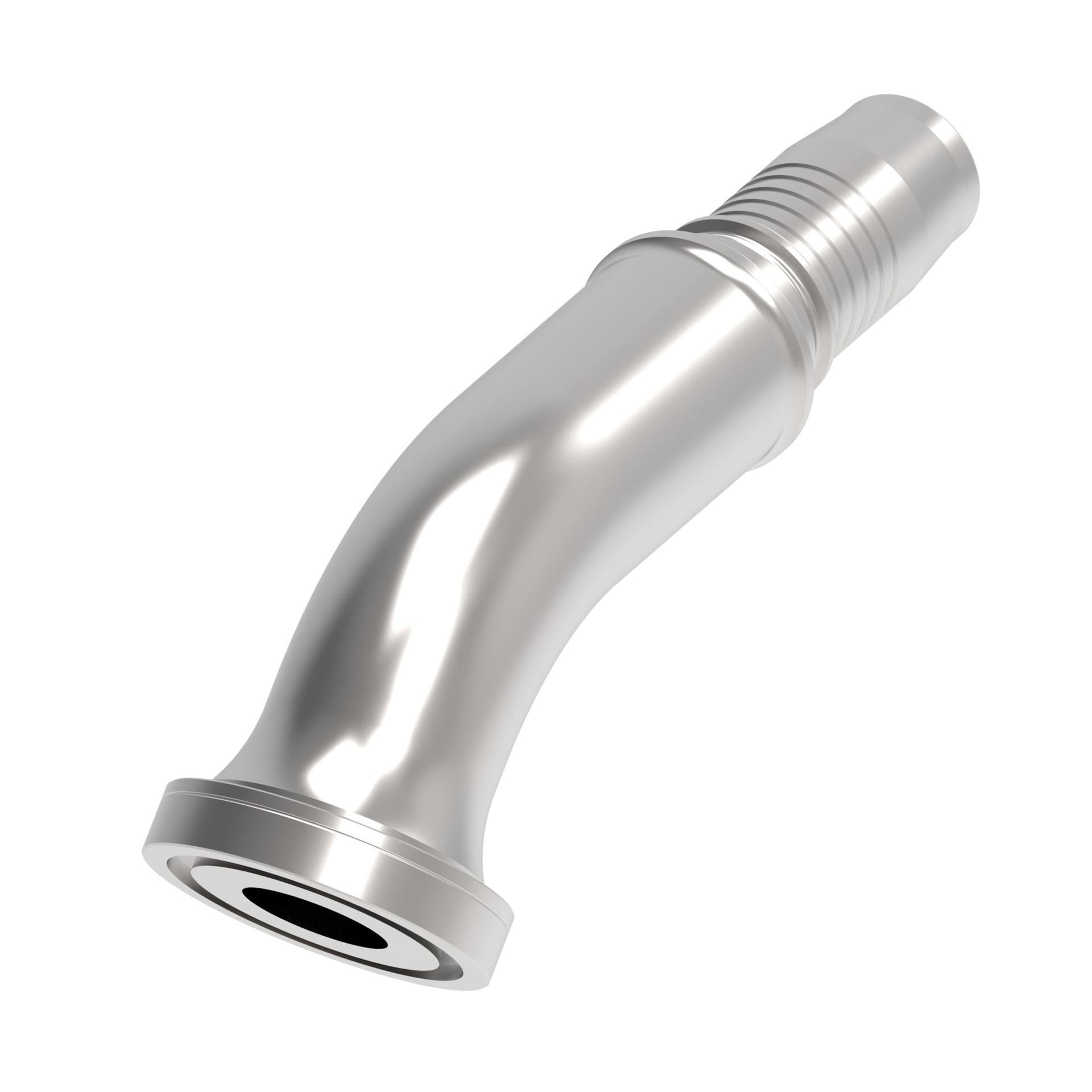

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 7.970 |
| A dimension MM | 202.400 |
| Angle shape | 45 Degree |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 1.250 |
| Compatible hose ID MM | 31.750 |
| Compatible hoses | GH200 |
| Construction Style | Crimp |
| Drop dimension IN | 1.830 |
| Drop dimension MM | 46.00 |
| End size 1 | -24 |
| End Type 1 | Split flange code 62 |
| End Type 2 | Line/hose/tube |
| Finish plating | Dura-Kote |
| Hose cut off factor IN | 5.330 |
| Hose cut off factor MM | 135.400 |
| Hose size | -20 |
| Inside diameter IN | 1.050 |
| Inside diameter MM | 26.600 |
| Product height in | 3.651 |
| Product height mm | 92.750 |
| Product length in | 9.218 |
| Product length mm | 234.150 |
| Product material | Carbon steel |
| Product width in | 2.500 |
| Product width mm | 63.500 |
