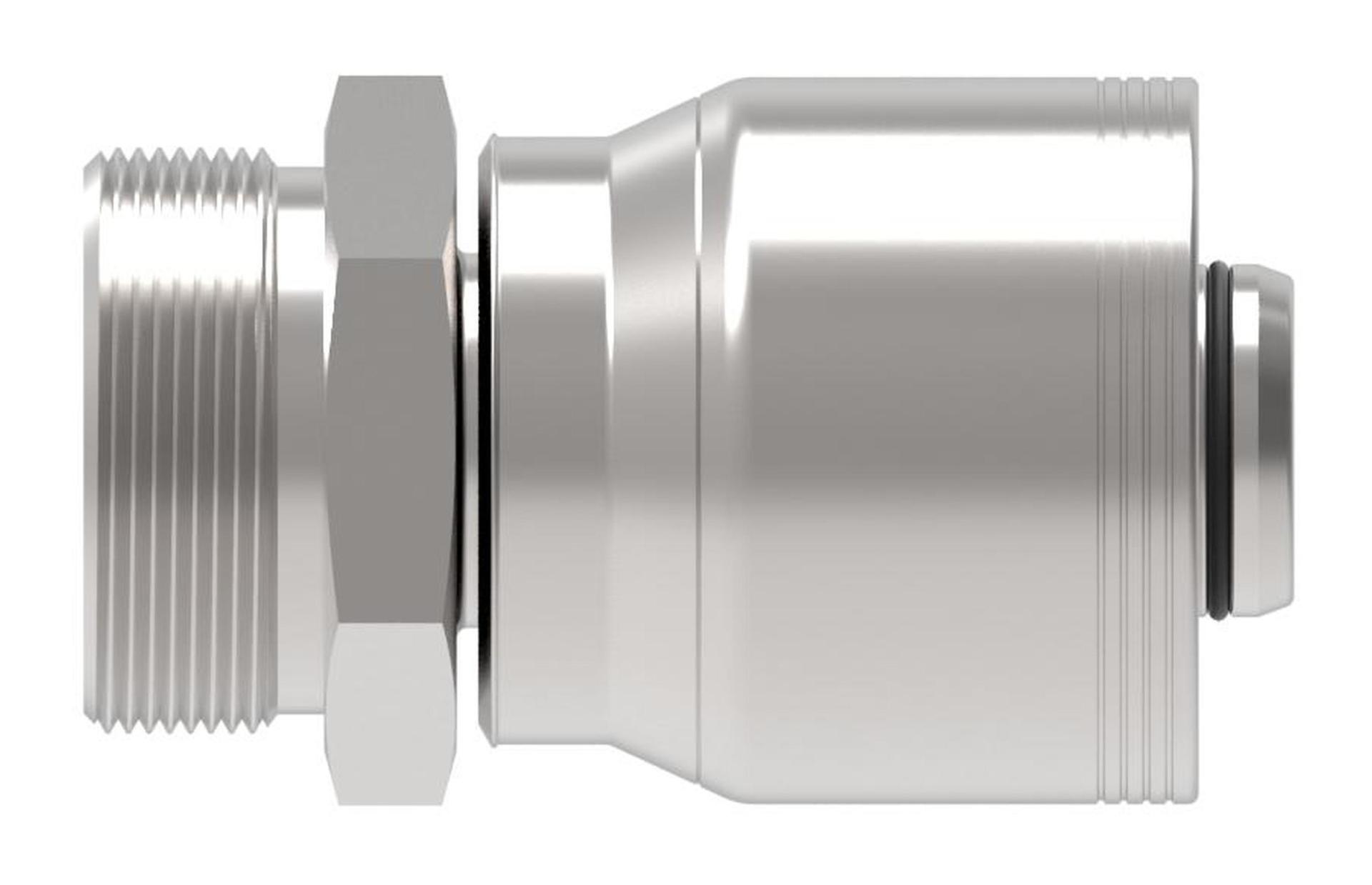

Hose Fittings 4S20MR16 [RIGHT]

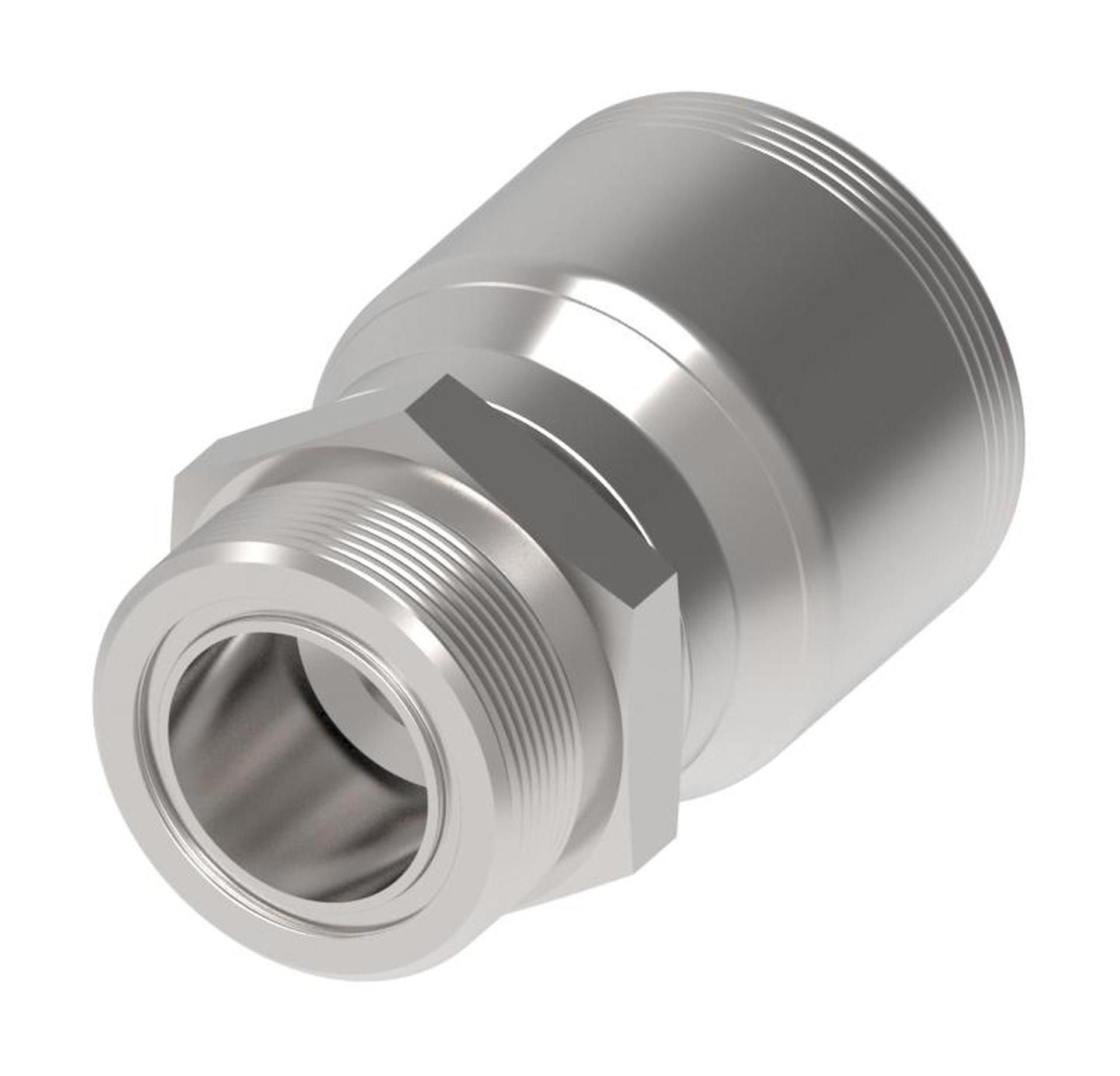

HOSE FTG, 4S/16, ORS-M/20, CS, STR

4S20MR16

Tools

Product specifications

Characteristic
Value
A dimension IN3.190
A dimension MM81.100
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Compatible hosesEC525 (Size dependent)EC600 (Size dependent)EC810 (Size dependent)FC254 (Size dependent)FC273B (Size dependent)FC500 (Size dependent)FC636 (Size dependent)FC736 (Size dependent)GH493 (Size dependent)GH506 (Size dependent)H430 (Size dependent)
CompliancesSAE J1176
Construction StyleCrimp
End size 1-20
End Type 1Male ORFS
Finish platingDura-Kote
Hex size 2 IN1.813
Hex size 2 MM46.0
Hose cut off factor IN1.630
Hose cut off factor MM41.500
Hose size-16
Inside diameter IN0.7600
Inside diameter MM19.2000
Product height in2.084
Product height mm52.930
Product length in3.466
Product length mm88.040
Product materialCarbon steel
Product width in2.084
Product width mm52.930 mm
Seal materialEthylene propylene (EPDM)
Thread sealantNo
Thread size 11 11/16-12 UN
Working pressure max bar310.00
Working pressure max psi4500.00
Working temperature max C127
Working temperature max F260
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN/UPC678146170750
