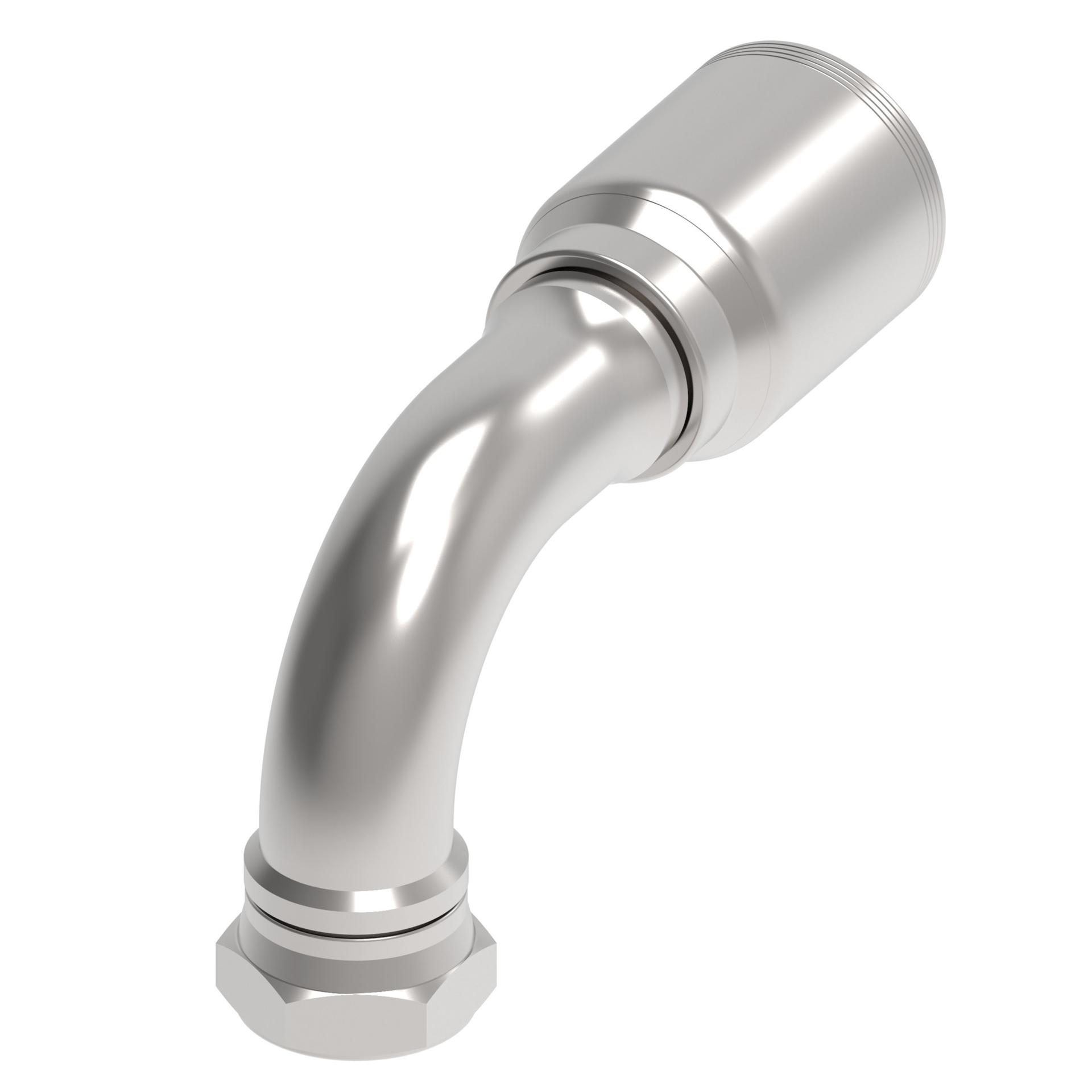

Hose Fittings 4S24BFB24 (RIGHT)

Ftng (perm), 4-sprl 4SBSPP FEM SW - 90

4S24BFB24


Tools

Product specifications

Characteristic
Value
A dimension IN8.070
A dimension MM205.100
Angle shape90 Degree
BrandDanfoss
Compatible hose ID IN1.500
Construction StyleCrimp
Drop dimension IN3.880
Drop dimension MM98.60
End size 1-24
End type 1Female BSPP swivel
Finish platingDura-Kote
Hex size 1 IN2.165
Hex size 1 MM55.000
Hose cut off factor IN5.000
Hose cut off factor MM127.000
Inside diameter IN1.220
Inside diameter MM31.100
Product height in5.800
Product height mm147.320
Product length in9.200
Product length mm233.680
Product materialCarbon steel
Product width in2.800
Product width mm71.120 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantNo
Thread size 1G 1 1/2
Working pressure max bar138
Working pressure max psi2000
Working temperature max C127
Working temperature max F260
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN815628022224
